CC509P - Smith CC509P Toughcut Medium-Duty 90-Degree Cutting Attachment

Industrial Grade Reliability with Smith Toughcut Technology

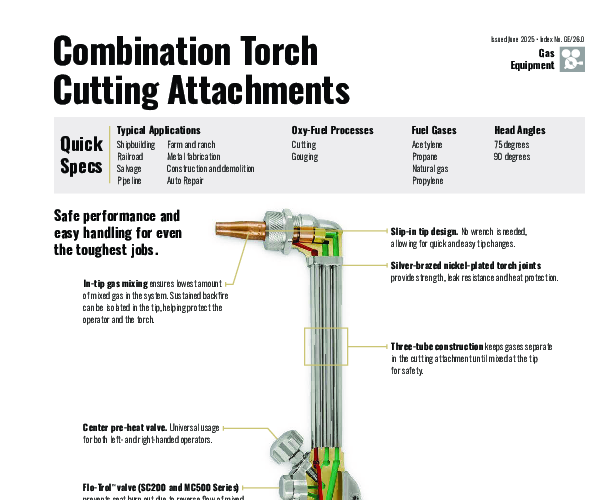

The Smith CC509P Toughcut™ Medium-Duty Cutting Attachment is a premier choice for industrial professionals requiring precision, safety, and durability in their oxy-fuel cutting operations. Engineered to withstand the rigors of daily use in fabrication shops, maintenance departments, and construction sites, this attachment transforms your standard medium-duty torch handle into a powerful cutting tool capable of slicing through up to 6 inches (153 mm) of steel. Its robust design is characterized by silver-brazed joints and a nickel-plated finish, which not only provides structural integrity but also offers excellent heat deflection and corrosion resistance, ensuring a long service life even in harsh environments.

One of the standout features of the CC509P is Smith's proprietary Slip-in Tip design. Unlike traditional cutting attachments that require a wrench to tighten the tip nut, this model utilizes a hand-tightened nut and Graf-Tite soft seats. This innovation allows operators to change tips in seconds without tools, significantly reducing downtime and frustration on the job. The "O" ring seating mechanism ensures a positive gas seal every time, eliminating the common issue of seat burnout caused by overtightening or damaged metal-to-metal seats. This feature alone makes the CC509P a cost-effective investment by prolonging the life of both the attachment and the consumables.

Safety is paramount in oxy-fuel operations, and the Smith CC509P excels in this area. It employs an in-tip mixing method, meaning the oxygen and fuel gas remain separate until they reach the cutting tip. This design keeps the mixed, highly combustible gas volume to an absolute minimum and locates it as far away from the operator as possible. This significantly reduces the risk of flashback within the torch tubes. Compatible with a wide range of fuel gases—including acetylene, propane, butane, natural gas, and propylene—this attachment offers the versatility needed for diverse industrial applications. It is designed to fit seamlessly with Smith WH100, MW5, MW5A, and CW5A torch handles.
