MC509 - Smith MC509 90-Degree Cutting Head for WH100 Handles

Technical Overview of the Smith MC509 Cutting Attachment

The Smith MC509 is a premium medium-duty cutting attachment engineered for professional industrial applications. Designed to integrate seamlessly with Smith's medium-duty torch handles—specifically the MW5, MW5A, WH100, and CW5A series—this attachment transforms a standard welding handle into a powerful cutting tool capable of severing steel up to 6 inches (153 mm) thick. The unit features a standard 90-degree head angle, making it suitable for the vast majority of manual cutting operations found in fabrication shops and maintenance environments.

Construction and Durability

Manufactured in the United States, the MC509 is built to withstand rigorous daily use. The assembly utilizes three stainless steel tubes which provide exceptional rigidity and corrosion resistance. Critical joints are silver-brazed, a process that ensures leak-proof integrity and superior strength compared to standard soldering. The butt and head are forged from brass, offering high thermal conductivity and resistance to deformation under heat. This robust construction philosophy is backed by Smith's Lifetime Warranty, attesting to the unit's expected longevity.

Safety and Gas Mixing Technology

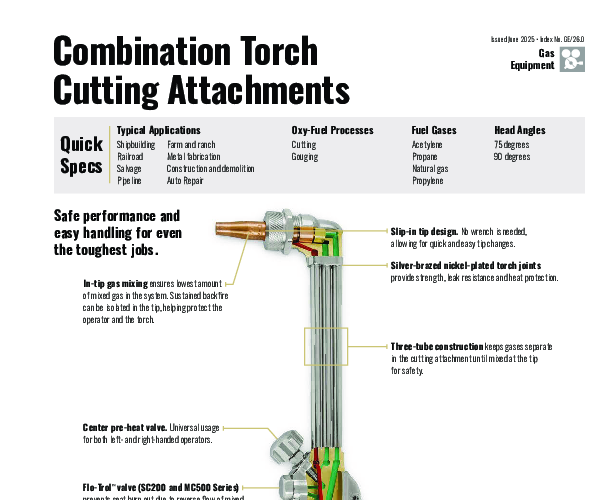

A key technical feature of the MC509 is its in-tip mixing technology. Unlike injector-style torches that mix gases within the handle or tubes, the MC509 employs a three-tube design that keeps the oxygen and fuel gas separate until they reach the cutting tip. This design significantly reduces the risk of flashback occurring within the attachment itself, enhancing operator safety. The separation of gases also keeps the mixed gas furthest away from the operator. The attachment is versatile regarding fuel sources; it is compatible with all industrial medium-pressure fuel gases, including acetylene, propane, butane, natural gas, propylene, and HPG, provided the correct cutting tip is installed.

Operational Efficiency

The MC509 is designed for efficiency and ease of maintenance. It utilizes Smith's proprietary "MC" series cutting tips, which feature a slip-in design. This Graf-Tite soft-seat technology allows operators to change tips quickly by hand without the need for a wrench, reducing downtime during tip replacements. The seating mechanism uses an O-ring seal to ensure a gas-tight fit that resists leaks even after repeated changes. The lever placement allows for smooth application of cutting oxygen, helping to reduce keyholing and slag blowback when piercing plate.
