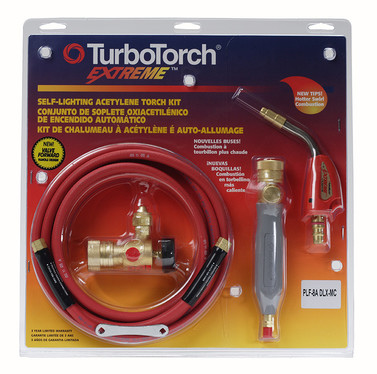

The TurboTorch PL-8ADLX-MC (SKU: 0386-0834) is a comprehensive air-acetylene torch outfit designed for professional HVAC and plumbing applications requiring high thermal efficiency and reliability. This kit is anchored by the Extreme Swirl Combustion Technology, a proprietary design that optimizes the air-fuel mixture to produce a high-velocity, high-temperature flame. The core component is the PL-8A self-lighting tip, which integrates a piezoelectric ignition system directly into the tip assembly, rated for approximately 100,000 cycles. This eliminates the requirement for external strikers and streamlines the ignition process in field environments.
The system operates on Acetylene gas and is configured for "MC" style cylinders via the included AR-MC regulator. This regulator is equipped with a CGA 200 inlet connection and features protective gauge guards to prevent damage during transport or operation. The pressure regulation ensures consistent flow rates to the G-4 handle, which utilizes a quick-disconnect mechanism. This mechanism allows operators to swap between different tip sizes (such as the PL-5A or PL-12A) rapidly without tools, enhancing versatility on the job site. The connection points are sealed with color-coded O-rings—specifically red for acetylene—to prevent cross-connection with propane equipment, serving as a critical safety control.
In terms of capacity, the PL-8A tip provided in this kit is engineered for substantial workloads. It offers a soft soldering capacity range of 1 inch to 4 inches (25-90 mm) and a silver brazing capacity of 1/2 inch to 2 inches (12-50 mm). This makes it suitable for larger diameter copper tubing often found in commercial refrigeration and hydronic heating systems. The kit also includes an AH-12 hose, providing 12 feet of reach, and a dedicated cylinder wrench for valve operation. The entire assembly is designed to withstand the rigors of daily industrial use while maximizing fuel efficiency through its advanced combustion dynamics.
| Additional Information |
|---|
| Brand:TurboTorch |
| Fuel Gas:Acetylene |
| Item:Plumber Torch |
| Packaging Description:pack-of-1 |
| Kit Type:Air Acetylene, Self-Lighting |
| Tip Model:PL-8A |
| Tank Connection:CGA 200 (MC Tank) |
| Soft Solder Capacity:Up to 4 inches (90mm) |
| Silver Braze Capacity:Up to 2 inches (50mm) |
| Hose Length:12 ft |
| Handle Model:G-4 |
| Torch Series:N/A |
