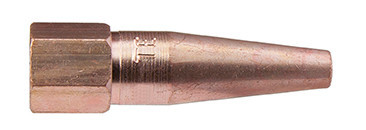

0311-0589 - Victor 5-TE Replacement Acetylene Tip End

Technical Overview of the Victor 0311-0589 5-TE Welding Tip

The Victor 0311-0589 is a specialized 5-TE welding tip end designed for precision oxy-acetylene applications. As a critical component in the TE series lineup, this replacement tip end is engineered to interface seamlessly with compatible nozzle assemblies and elbows, utilizing a specific 5/16" - 27 thread pitch. This threading ensures a gas-tight seal and mechanical stability during operation, preventing leaks and maintaining consistent gas flow dynamics essential for safety and performance.

With a designated tip size of 5, this component is calibrated to deliver a specific volume of acetylene gas, making it suitable for a defined range of material thicknesses. The orifice geometry is precision-drilled to produce a clean, stable flame cone, which is paramount for controlling the heat affected zone (HAZ) during welding and brazing procedures. The tip measures 2 inches in length, a dimension that balances reach with rigidity, minimizing the risk of tip deflection during contact or manipulation around complex workpieces.

Material construction is a key aspect of the 5-TE tip's reliability. Manufactured from high-grade copper alloy, it exhibits excellent thermal conductivity, which aids in dissipating heat away from the orifice face, thereby reducing the likelihood of pre-ignition or flashback. The copper material also provides resistance to oxidation and corrosion common in high-temperature combustion environments. This tip is strictly rated for Acetylene gas service and should not be used with alternate fuel gases such as Propane or Propylene, as the combustion velocities and heat output characteristics differ significantly.

Industrial maintenance professionals and fabricators rely on the TE series for its modularity. By allowing the replacement of the tip end independently of the mixer or elbow, the 0311-0589 offers a sustainable maintenance path for oxy-fuel equipment. It is widely utilized in HVAC piping, light-to-medium gauge metal fabrication, and general automotive repair where oxy-acetylene welding remains the process of choice.
