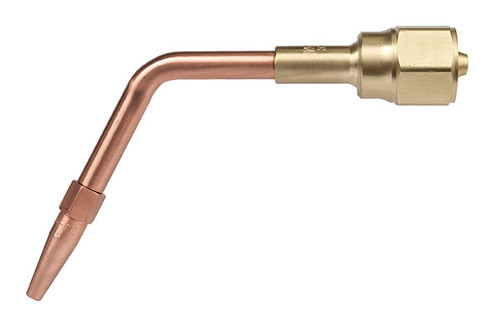

0323-0316 - Victor 8-RTE Acetylene Welding Nozzle Size 8

Technical Overview of the Victor 8-RTE Welding Nozzle

The Victor 0323-0316 8-RTE Welding Nozzle is a precision-engineered component designed for the 300 Series torch handles. This nozzle assembly is specifically calibrated for use with Acetylene gas, providing a Size 8 flame output suitable for a wide range of general-purpose welding and preheating applications. A defining technical feature of the RTE series is the inclusion of individual Spiral Mixers. This design element ensures optimum flame characteristics by thoroughly mixing the fuel gas and oxygen before combustion, resulting in a stable, high-temperature flame profile essential for quality welds.

Structurally, the nozzle is built to withstand the rigors of industrial environments. It features a robust Brass Coupling Nut equipped with a built-in snap ring. This snap ring serves a critical protective function, shielding the cone-end of the nozzle from damage during handling and operation. The assembly utilizes a Double O-Ring sealing mechanism. This engineering choice allows for a gas-tight connection to the torch handle that can be secured by hand, eliminating the need for a wrench and reducing the risk of thread damage due to overtightening. This feature significantly expedites the setup and changeover process for operators in the field.

The "RTE" designation indicates that this nozzle employs Replaceable Tip Ends. The specific tip end used in this assembly belongs to the TE Series and features a 65-degree angle, which provides excellent visibility and access to the weld puddle. By allowing the tip end to be replaced independently of the mixer and nut assembly, the 8-RTE offers a cost-effective maintenance solution. Every Victor nozzle assembly, including the 0323-0316, undergoes 100% flame testing prior to shipment, ensuring that it meets strict performance standards for flow rate and flame stability immediately upon deployment.
