0324-0073 - Victor W-1 Series Size 3 Acetylene Welding Nozzle

Technical Overview of the Victor 3-W-1 Welding Nozzle

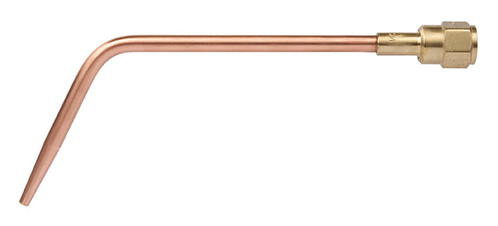

The Victor 3-W-1 Welding Nozzle (SKU: 0324-0073) represents a standard of excellence in oxy-fuel welding components, designed specifically for medium-duty applications. Engineered to interface seamlessly with Victor 100 Series torch handles, this nozzle integrates several critical design features that enhance safety, durability, and operational efficiency. The unit is constructed as a one-piece swaged copper elbow tip. Copper is utilized for its superior thermal conductivity, which effectively dissipates heat away from the tip orifice, reducing the risk of flashback and extending the service life of the consumable under high-temperature conditions.

Central to the performance of the W-1 series is the individual spiral mixer. This internal component is precision-engineered to blend oxygen and fuel gas (specifically Acetylene or Hydrogen) thoroughly before ignition. The spiral design creates turbulence that ensures a homogeneous mixture, resulting in a stable, optimized flame characteristic. This specific model produces a long cone flame, which provides the welder with excellent directional control and visibility of the weld puddle, essential for high-quality general purpose welding.

Mechanical integrity is maintained through a robust brass coupling nut equipped with a built-in snap ring. This snap ring serves a dual purpose: it secures the assembly and protects the cone end from physical damage during handling or storage. Furthermore, the connection interface features a double O-ring seal. This design innovation allows for a gas-tight seal to be achieved by hand-tightening alone, eliminating the need for a wrench and preventing potential damage to the torch threads caused by overtightening. The nozzle has a 65-degree tip angle and measures 4-1/2 inches in length, providing adequate reach and ergonomic comfort for the operator. All Victor nozzle assemblies undergo 100% flame testing prior to distribution to verify flow rates and flame geometry.
