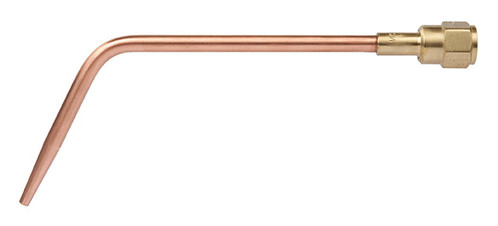

0324-0075 - Victor W-1 Series Size 5 Acetylene Welding Nozzle for 100 Series Handles

Victor 5-W-1 Welding Nozzle for Industrial Applications

The Victor 5-W-1 Welding Nozzle (SKU: 0324-0075) is a premium-grade consumable designed for medium-duty welding and preheating applications. Engineered by Victor, a leader in gas equipment, this nozzle is specifically calibrated for use with Acetylene and Hydrogen fuel gases. It is compatible exclusively with Victor 100 Series torch handles, making it a vital component for professionals utilizing medium-duty oxy-fuel setups. The nozzle features a Size 5 orifice, suitable for a range of metal thicknesses in general fabrication and repair environments.

Advanced Construction and Performance

This W-1 Series nozzle is distinguished by its one-piece swaged copper elbow tip, which provides excellent heat dissipation and structural integrity under thermal stress. Inside the assembly, Victor has integrated an individual spiral mixer. This critical component ensures the oxygen and fuel gas are blended thoroughly before reaching the flame, resulting in optimum flame characteristics and stable combustion. The nozzle produces a long cone flame, which offers welders precise control over the heat affected zone and better visibility of the weld puddle.

Reliability and Ease of Maintenance

Operational efficiency is enhanced by the nozzle's double O-ring seal design. This feature creates a secure, gas-tight connection to the torch handle without the need for a wrench, reducing setup time and wear on the equipment. A brass coupling nut with a built-in snap ring further protects the cone end from damage during handling and storage. Every Victor nozzle assembly is 100% flame tested prior to shipment, ensuring that the product meets rigorous performance standards immediately out of the box. With a 65-degree tip angle and a total length of 4-1/2 inches, the 5-W-1 offers excellent ergonomics for standard bench and field welding tasks.
