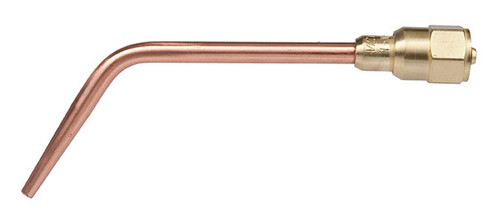

0325-0090 - Victor Size 7 W-J Series Welding Nozzle for J-Series Handles

Technical Overview of the Victor 7-W-J Welding Nozzle

The Victor 7-W-J Welding Nozzle (SKU: 0325-0090) is a precision-engineered component designed for the W-J Series, specifically compatible with Victor J Series torch handles. This nozzle is optimized for general-purpose welding and preheating applications utilizing Acetylene or Hydrogen as the fuel source. Central to its performance is the individual Spiral Mixer located within the assembly. This mixer is critical for blending oxygen and fuel gas thoroughly to produce optimum flame characteristics, resulting in a stable, long cone flame that is essential for controlled metal fusion and heat application.

The assembly is constructed with a one-piece copper elbow tip, chosen for its excellent thermal properties and resistance to deformation under high-heat conditions. The tip features a 65-degree angle, providing the operator with improved visibility and access to joints, which is particularly beneficial in complex welding positions. The nozzle is secured to the torch handle via a Brass Coupling Nut equipped with a built-in snap ring. This snap ring serves a protective function, shielding the delicate cone-end of the nozzle from impact damage when not in use, thereby extending the service life of the component.

A distinguishing feature of the W-J Series is the double O-ring sealing mechanism. This design ensures a positive, gas-tight seal between the nozzle and the torch handle without the requirement of a wrench for tightening. This hand-tighten capability facilitates rapid changeovers and reduces the risk of thread damage associated with over-torquing. Every Victor nozzle assembly, including the 7-W-J, undergoes rigorous 100% flame testing to verify flow rates and flame stability, ensuring that the product meets strict industrial standards for safety and performance immediately upon deployment.
