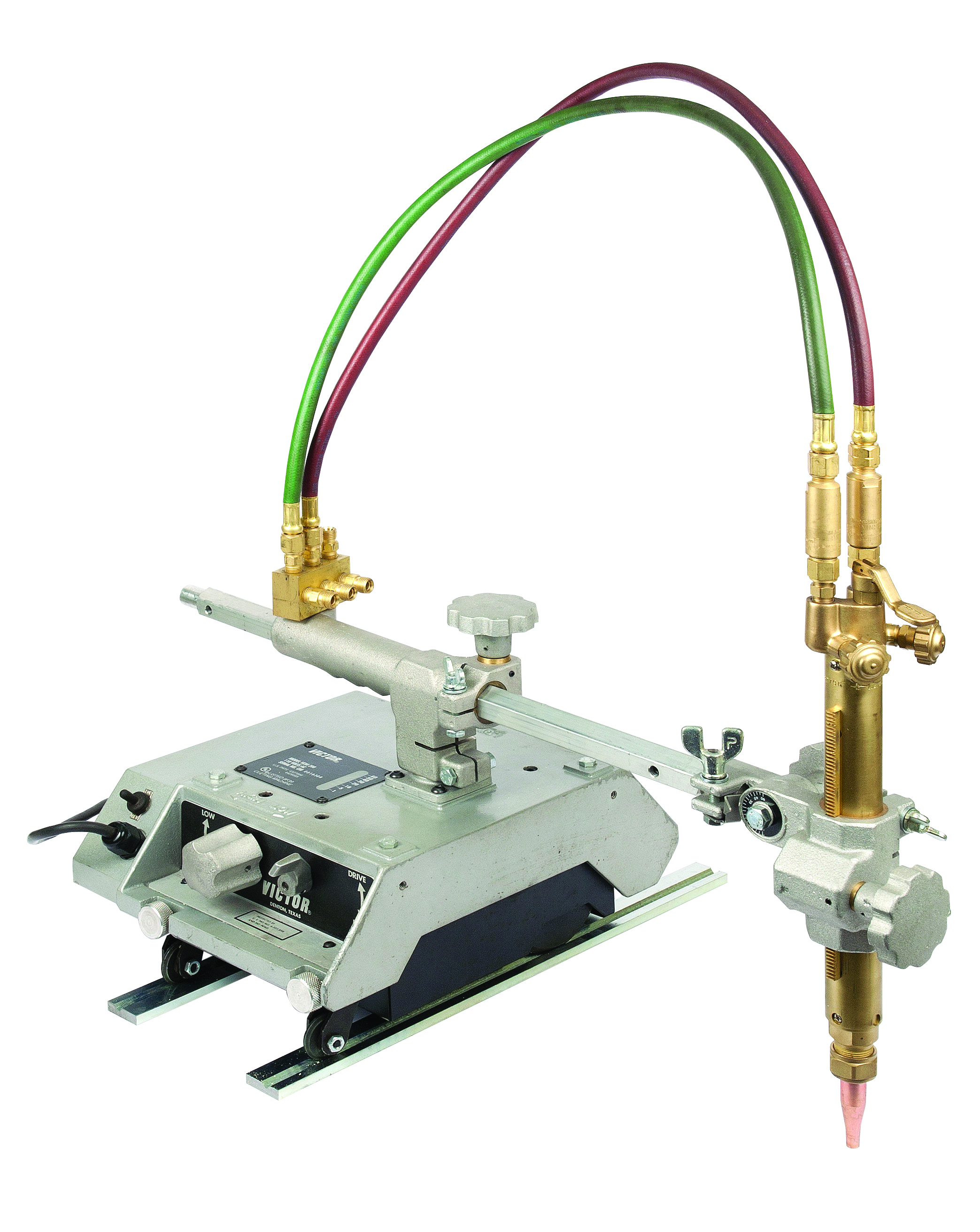

The Victor VCM-200HS (High Speed) Portable Cutting Machine Package (SKU: 0200-0224) is a robust, precision-engineered tractor unit designed to automate oxy-fuel cutting processes. Engineered for versatility and reliability, the VCM-200HS distinguishes itself with a high-speed transmission capable of travel rates between 5 and 120 inches per minute (12.7 - 304.8 cm/min). This expanded speed range makes it suitable not only for standard plate cutting but also for high-speed welding applications and plasma cutting integration where faster travel speeds are requisite.
At the core of the machine is a constant-speed AC induction motor. Unlike DC motors found in lesser units, this induction motor provides consistent torque and speed regulation regardless of load variations or heating, ensuring a smooth cut surface with minimal drag lines. The drive system utilizes a sophisticated cone disc drive, which offers infinite speed adjustment within its range and reliable traction. The unit is housed in a heavy-duty cast aluminum body that protects internal components from heat, spatter, and industrial debris.
This package is a complete turnkey solution, supplied with the tractor, rigging, an MT 210A machine torch, and a cutting tip. The machine features a counter-balanced design that allows the torch to be racked out up to 18 inches (457.2 mm) from the machine body without tipping, providing excellent reach for varied plate geometries. While designed for use on standard 6-foot track sections (sold separately) for long straight cuts, the VCM-200HS can also perform circle cutting off-track using the included radius rod assembly.
| Additional Information |
|---|
| Brand:Victor |
| Cutting Capacity:300 mm |
| Packaging Description:1 Per Ea |
| Speed Range:5 - 120 ipm (12.7 - 304.8 cm/min) |
| Motor Type:AC Induction |
| Torch Included:Yes |
| Track Included:No |
| Process:Oxy-Fuel Cutting, Cutting |
