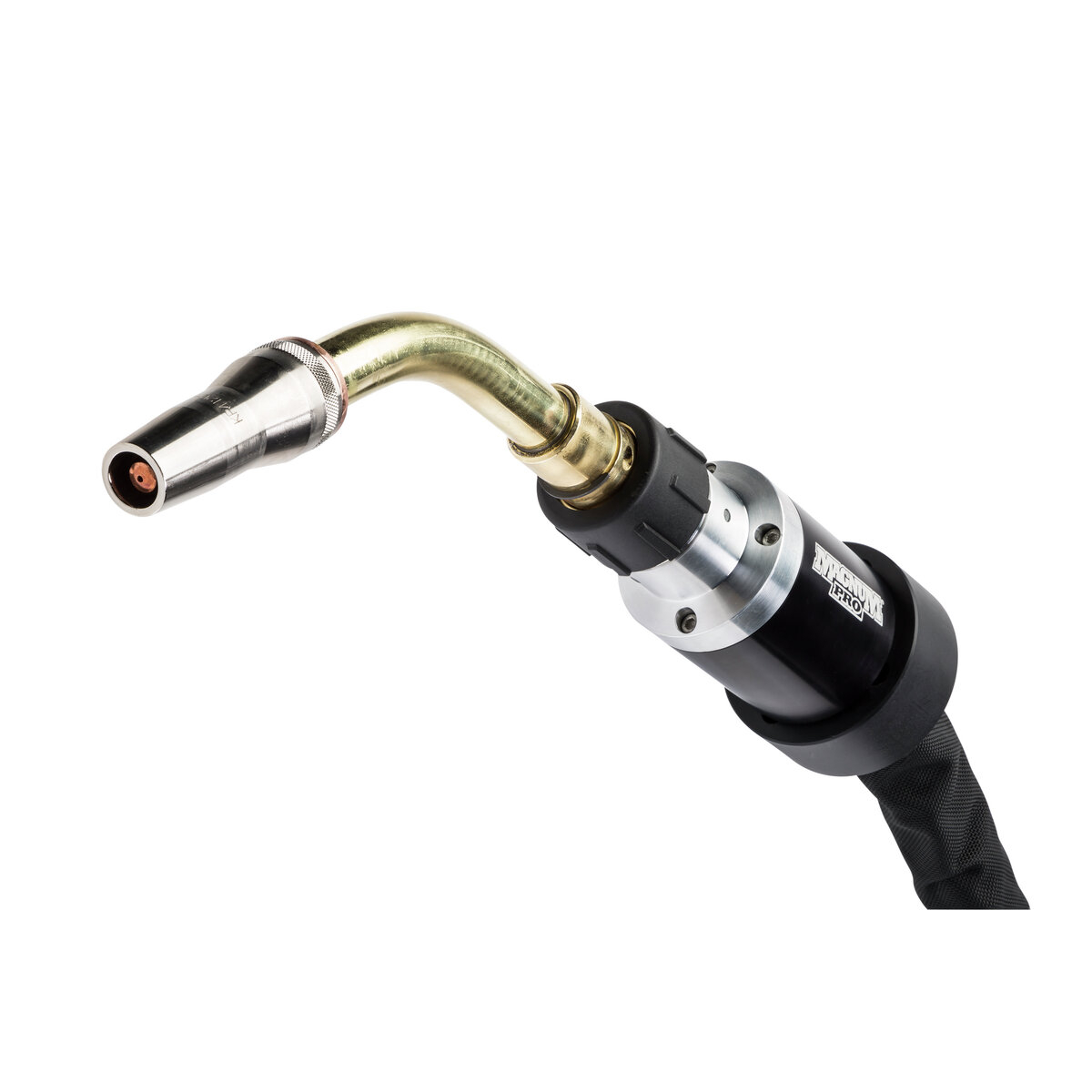

K3593-14A - Lincoln Magnum PRO Robotic Torch for ABB IRB 1660ID

Lincoln Electric K3593-14A Magnum PRO Water-Cooled Robotic Torch

The Lincoln Electric K3593-14A is a high-performance Magnum PRO Water-Cooled Robotic Torch specifically engineered for integration with the ABB IRB 1660ID robotic arm. Designed to meet the rigorous demands of industrial automation, this torch system leverages advanced cooling thermodynamics to deliver exceptional duty cycle capabilities. It is rated to operate at a 100% duty cycle at 525 Amps when utilizing 90/10 mixed gas, making it an ideal solution for high-throughput manufacturing environments where thermal management is critical to operational continuity.

At the core of the K3593-14A's design is a dual-action cooling system that utilizes both conduction and convection. This innovative approach ensures that thermal energy is efficiently dissipated from the front end of the torch, keeping expendables such as contact tips and nozzles at lower operating temperatures. By maintaining cooler expendables, the system significantly retards the degradation processes associated with high-heat welding, thereby extending the service life of consumables and reducing the frequency of line stoppages for maintenance.

Structural integrity and precision are paramount in robotic applications. The Magnum PRO torch features gun tubes constructed with a robust inner and outer sheath. This dual-layer architecture not only enhances the durability of the torch in the event of accidental collisions but also ensures superior Tool Center Point (TCP) repeatability. Consistent TCP is essential for maintaining weld path accuracy over long production runs. Furthermore, the cooling channels extend to cool both the inner and outer sheaths, a design choice that minimizes the surface temperature of the gun tube and effectively prevents spatter adhesion, reducing the need for mechanical cleaning cycles.

Installation and maintenance have been streamlined through engineering improvements. The torch utilizes floating fittings within the gun tubes, a design that accommodates tolerance variations and prevents coolant leakage—a common failure point in rigid systems. Visible hash marks are provided to guide technicians during setup, ensuring precise alignment and reducing installation time. This model also includes Air Blast functionality and supports Nozzle Touch Sensing, enabling advanced seam tracking and automated nozzle cleaning routines.
