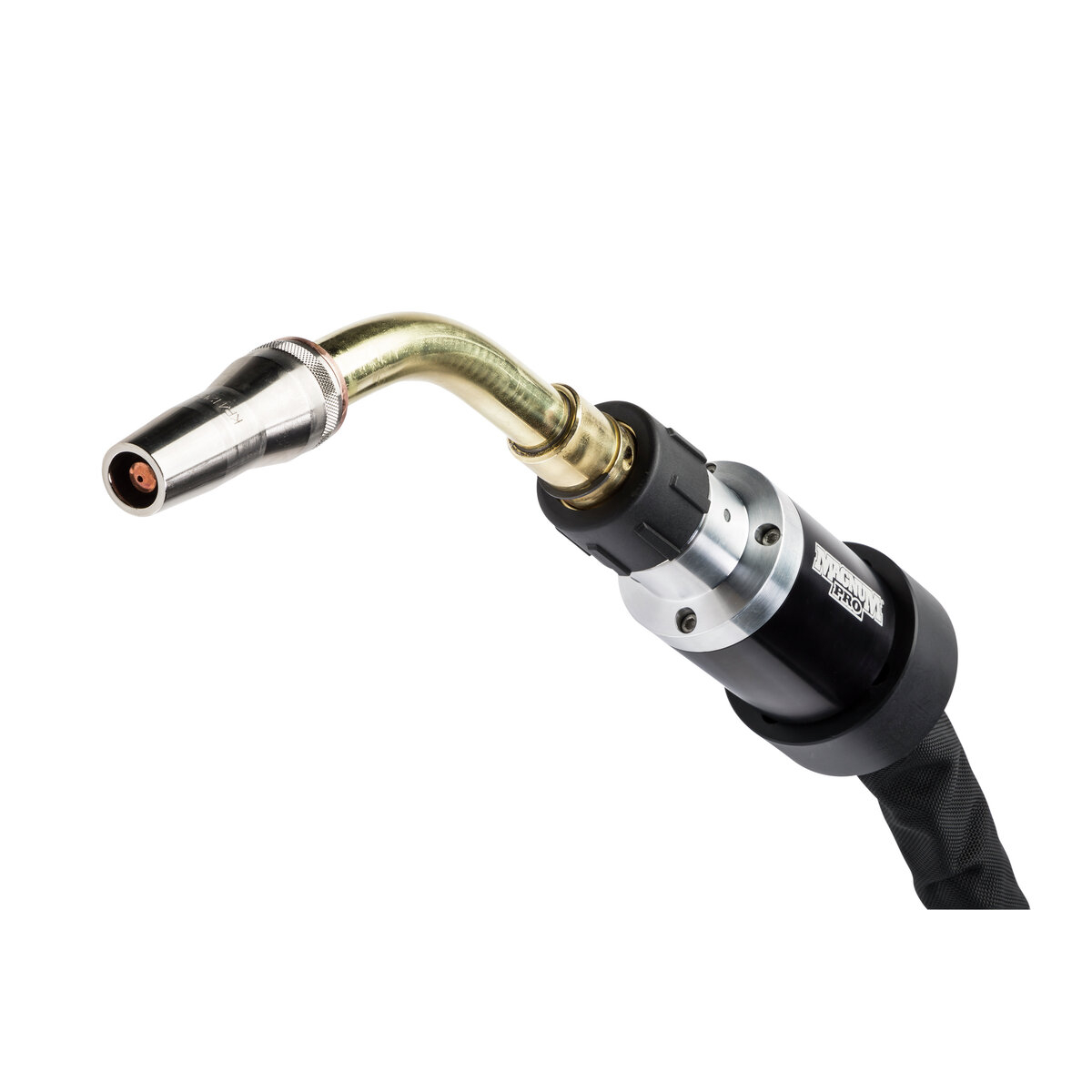

K3593-2 - Lincoln Magnum PRO Water-Cooled Robotic MIG Gun for Fanuc 120iC/10L

High-Performance Robotic Welding for Fanuc Systems

The Lincoln Electric K3593-2 Magnum PRO Water-Cooled Robotic Torch is a premier solution engineered specifically for the Fanuc 120iC/10L robotic arm. In the demanding world of automated manufacturing, reliability and precision are paramount. This torch addresses the critical needs of high-volume production environments by combining robust physical construction with advanced thermal management capabilities. Unlike standard air-cooled options that may struggle under continuous load, this water-cooled system is rated for a 100% duty cycle at 525 Amps when using 90/10 mixed gas. This ensures that your production line maintains peak efficiency without downtime caused by torch overheating.

Advanced Cooling Technology

Heat is the enemy of welding consumables. The K3593-2 utilizes a sophisticated cooling mechanism that employs both conduction and convection to manage thermal loads effectively. By circulating coolant efficiently through the torch body and gun tube, the system keeps the front-end expendables—such as contact tips and nozzles—significantly cooler. This reduction in operating temperature directly translates to extended consumable life, reduced changeover frequency, and lower long-term operating costs. The design ensures that the torch remains cool to the touch even after prolonged welding cycles, protecting internal components from thermal stress.

Rugged Durability and Precision

Robotic welding cells are harsh environments where accidental collisions can occur. Lincoln Electric has designed the gun tubes of the K3593-2 with a sturdy inner and outer sheath. This dual-layer construction provides exceptional resistance to damage during crashes, helping to maintain the structural integrity of the torch. More importantly, this rigidity ensures excellent Tool Center Point (TCP) repeatability. Consistent TCP is vital for robotic programming; if the torch bends or shifts, the robot's path will no longer align with the weld joint. The K3593-2 maintains its geometry, ensuring that every weld is placed exactly where it is programmed to be.

Simplified Installation and Maintenance

Maintenance teams will appreciate the thoughtful design features that simplify installation and setup. The torch is equipped with floating fittings that accommodate slight misalignments during connection, effectively preventing water leakage—a common issue with rigid fitting designs. Additionally, visible hash marks on the barrel allow for quick visual verification of the setup, ensuring that the torch is properly seated and aligned with the robot arm. These features collectively reduce setup time and minimize the risk of installation errors.
