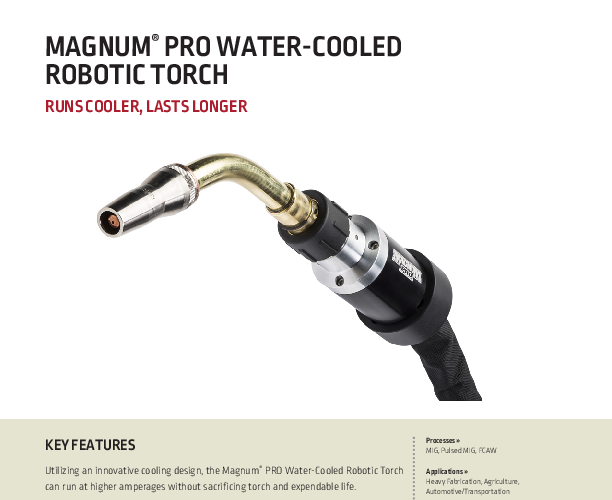

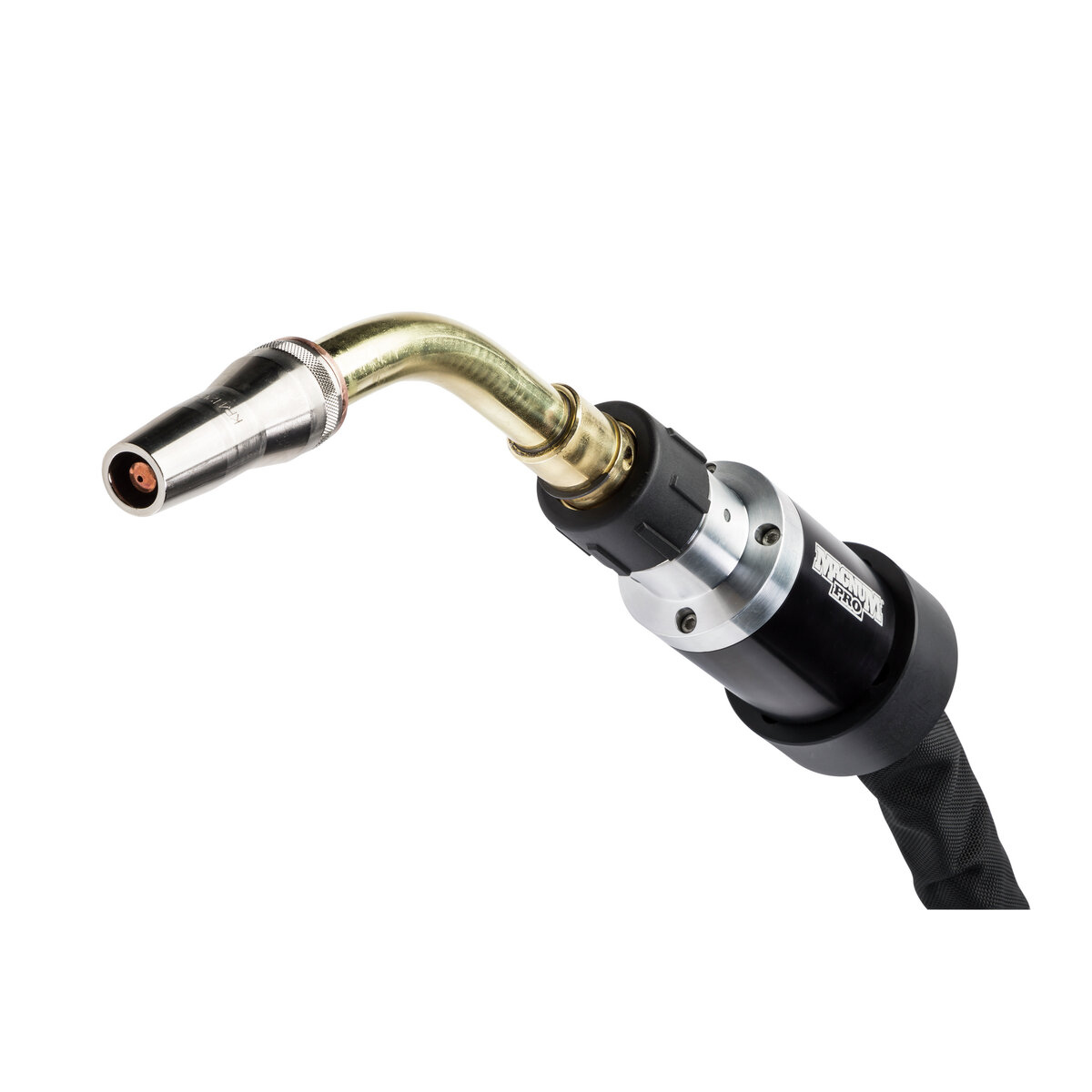

K3593-4A - Magnum PRO Robotic Torch for Fanuc 100iC/8L, Water-Cooled, 525A

Technical Overview of the Lincoln Electric K3593-4A

The Lincoln Electric K3593-4A Magnum PRO Water-Cooled Robotic Torch is a precision-engineered welding instrument designed specifically for integration with Fanuc 100iC/8L robotic arms. This torch represents a significant advancement in automated welding technology, prioritizing thermal management and structural integrity to support continuous, high-volume manufacturing environments. At the core of its performance is a sophisticated water-cooling architecture that enables the unit to sustain a 100% duty cycle at 525 Amperes when utilizing 90/10 mixed gas. This high-amperage capability ensures that the torch can handle demanding deposition rates without overheating, a critical factor in maintaining cycle times and weld quality.

Structurally, the K3593-4A features a reinforced gun tube design comprising a sturdy inner and outer sheath. This dual-layer construction serves two primary technical functions: it enhances the Tool Center Point (TCP) repeatability by providing rigidity, and it offers substantial protection against physical deformation in the event of a robot crash. The outer sheath is thermally managed to remain cool, which significantly reduces the adhesion of spatter, thereby minimizing the frequency of required cleaning cycles. The integration of floating fittings within the gun tubes addresses common hydraulic failure points, effectively preventing water leakage that could otherwise compromise the welding cell or the robot mechanics.

The inclusion of an Air Blast feature allows for the integration of automated nozzle cleaning stations, using high-pressure air to clear debris and spatter from the nozzle bore. This feature, combined with the visible hash marks for precise alignment during installation, underscores the torch's design philosophy of maximizing operational efficiency and minimizing maintenance downtime. The cooling mechanism is strategically positioned near the distal end of the torch to directly manage the thermal load on the expendables, resulting in extended service life for contact tips and nozzles.
