K3593-8A - Magnum PRO Robotic Torch Package for Fanuc 100iD with Air Blast

Advanced Robotic Welding Solution for Fanuc Systems

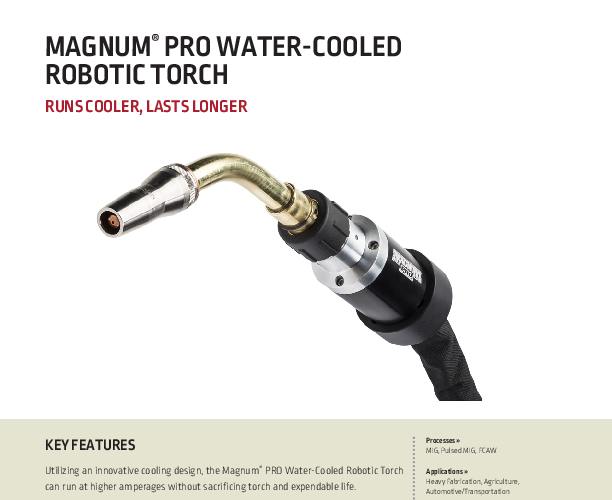

The Lincoln Electric K3593-8A Magnum PRO Water-Cooled Robotic Torch is a premier welding assembly engineered specifically for integration with Fanuc 100iD and 100iD/10L robotic arms. This system represents the pinnacle of automated welding technology, combining Lincoln Electric's renowned Magnum PRO performance with the precision required for modern industrial robotics. The torch is designed to handle the rigors of high-volume manufacturing environments where downtime is not an option. By utilizing a water-cooled design, this torch assembly effectively manages heat dissipation, allowing for higher amperage outputs and longer duty cycles compared to air-cooled alternatives. This thermal management is critical for maintaining consistent weld quality over long shifts and preventing premature failure of torch components.

A key feature of the K3593-8A is the inclusion of the K3352-1 Air Blast Kit. This integrated functionality allows for the automated clearing of spatter and debris from the nozzle, typically performed at a reaming station. By incorporating air blast capabilities directly into the torch package, manufacturers can ensure cleaner welds and reduce the frequency of manual intervention required to maintain the equipment. The package also includes the KP2920-9 Breakaway Disk, a vital safety component that protects the robot's wrist and the torch itself in the event of a collision. This mechanical fuse is designed to yield before the expensive robotic arm sustains damage, saving significant costs in potential repairs and recalibration.

The assembly comes complete with a 45-degree gun tube (KP4403-45), offering a versatile approach angle suitable for a wide range of joint configurations. The included liner supports wire diameters from 0.035 to 0.045 inches, covering the most common applications in automotive and general fabrication. Furthermore, the torch utilizes Magnum PRO consumables, which are engineered with Copper Plus technology to provide more contact area and better heat dissipation, resulting in significantly longer consumable life. This comprehensive package ensures that your robotic cell operates at peak efficiency with minimal maintenance requirements.
