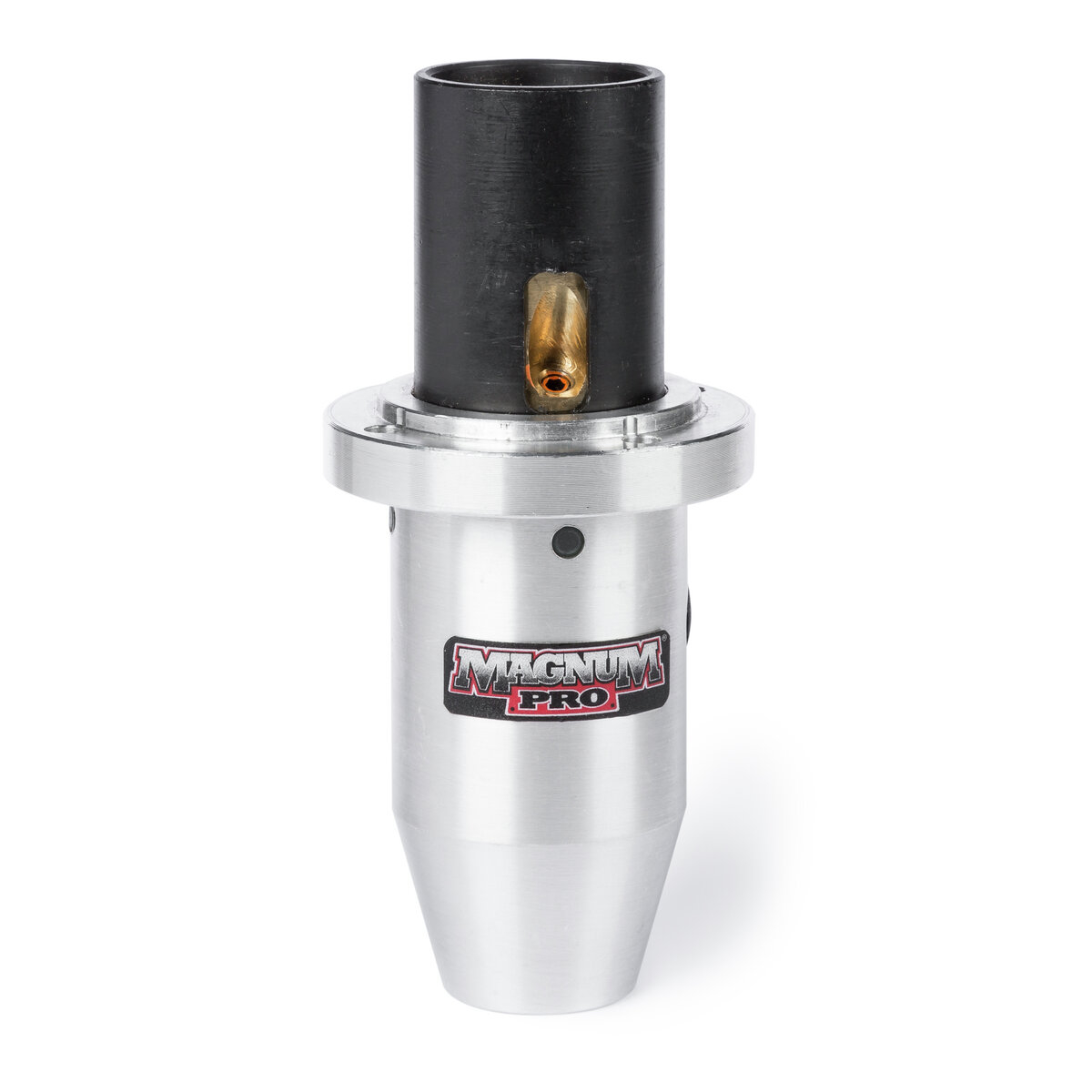

K4307-1 - Magnum PRO Robotic Torch Nose Cone Assembly

Precision Component for Automated Welding Systems

The Lincoln Electric K4307-1 Magnum PRO Robotic Nose Cone is a specialized component engineered to meet the rigorous demands of automated manufacturing environments. Designed specifically for compatibility with Standard and Airblast Magnum PRO Air Cooled Robotic Torches, this nose cone serves as a critical interface between the robotic torch neck and the front-end consumables. In robotic applications, where repeatability and precision are paramount, the structural integrity of the torch assembly dictates the consistency of the Tool Center Point (TCP). The K4307-1 ensures that the contact tip and nozzle remain perfectly aligned, reducing deviation and ensuring high-quality weld deposition path after path.

Manufactured by Lincoln Electric, this nose cone is built to withstand the intense reflected heat and duty cycles associated with continuous robotic welding. It is fully compatible with "Airblast" configurations, a feature often utilized in automation to clear spatter from the nozzle and contact tip using high-pressure air. This compatibility ensures that the nose cone integrates seamlessly into cells equipped with reamers or cleaning stations, facilitating automated maintenance routines without requiring component modification.

For industrial maintenance teams and welding engineers, using genuine Lincoln Electric parts like the K4307-1 is essential for preserving the warranty and performance standards of the Magnum PRO system. The nose cone acts as a protective housing for the gas diffuser and helps channel shielding gas in a laminar flow over the weld pool, minimizing porosity and oxidation. Whether replacing a damaged unit or stocking critical spares to prevent line-down situations, the K4307-1 provides the reliability expected from industry-leading welding equipment.

Key Technical Benefits

The design of the K4307-1 emphasizes thermal management and mechanical stability. By effectively managing the heat transfer from the arc to the torch body, it prolongs the life of internal components. Its robust construction resists deformation from accidental collisions or thermal cycling, maintaining the tight tolerances necessary for complex robotic programming.
