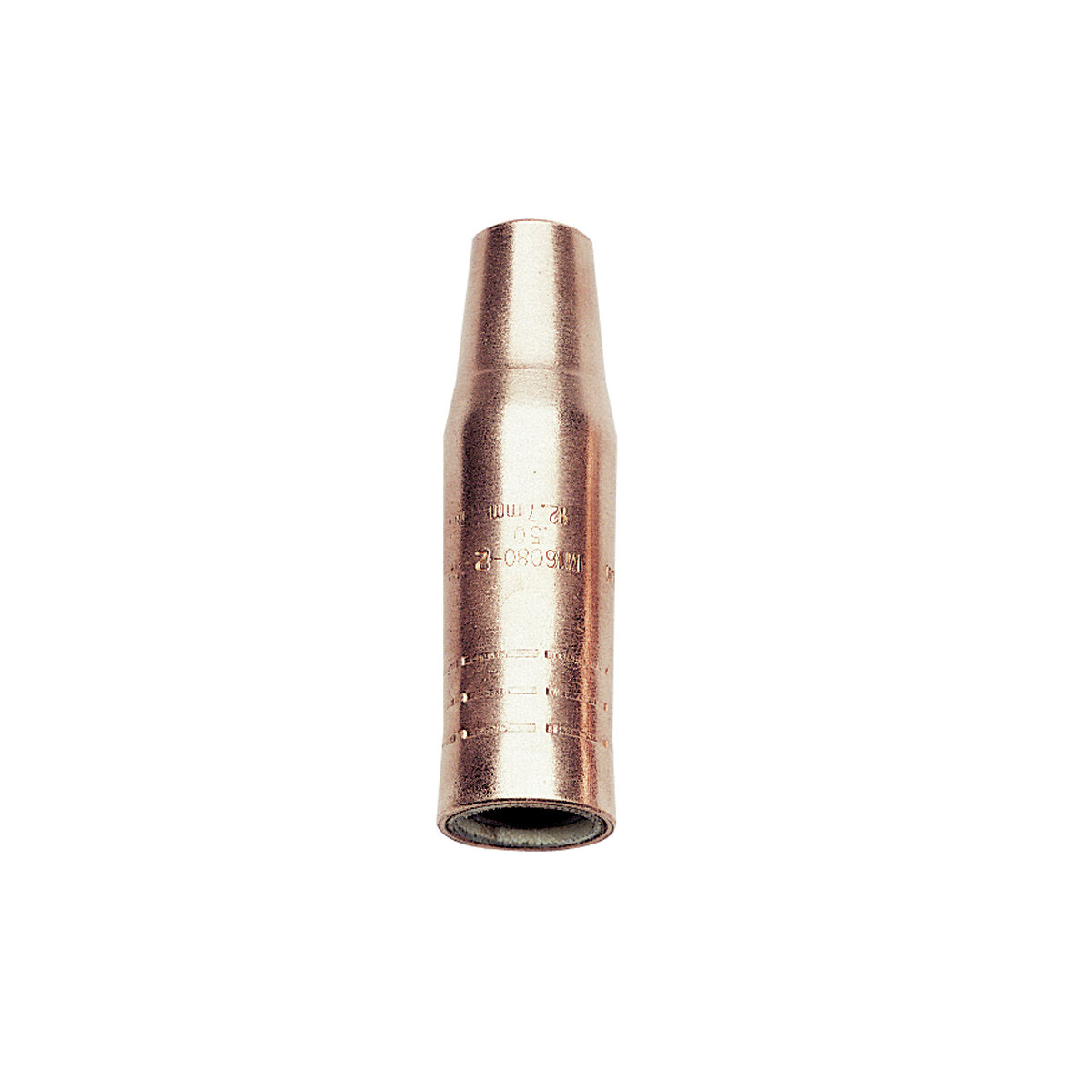

KP23-37 - Lincoln Electric KP23-37 Fixed Recess Gas Nozzle, 0.38 ID for Magnum Guns

Lincoln Electric KP23-37 Gas Nozzle Technical Overview

The Lincoln Electric KP23-37 is a precision-engineered gas nozzle designed to serve as a critical component in the gas metal arc welding (GMAW) process. Specifically manufactured for the Lincoln Electric Magnum® series of semiautomatic MIG guns, this nozzle is rated for use with amperage classes ranging from 250 to 400 amps. This includes the Magnum® 250LX, Magnum® 300, and Magnum® 400 series. The nozzle features a fixed recess architecture. Unlike adjustable slip-on nozzles that allow the operator to vary the nozzle position relative to the contact tip, the fixed recess design ensures a static geometric relationship. This is vital for maintaining a consistent contact tip-to-work distance (CTWD) and ensuring that the contact tip remains recessed within the nozzle bore, protecting it from direct arc reflection and reducing the likelihood of short-circuiting against the workpiece.

The internal geometry of the KP23-37 is defined by its 0.38-inch (9.7 mm) inner diameter (ID). This specific bore size is engineered to optimize shielding gas laminar flow for standard welding applications, balancing gas velocity and coverage area. A 0.38-inch ID is particularly effective for accessing tighter joints where larger nozzles might be obstructed, while still providing sufficient gas envelope integrity to prevent atmospheric contamination and porosity. The nozzle is compatible with a broad spectrum of welding wire diameters, accommodating sizes from .025 inches (0.6 mm) up to 5/64 inches (2.0 mm), making it a versatile consumable for facilities utilizing multiple wire gauges.

Material construction is paramount for MIG gun consumables. The KP23-37 is manufactured from high-grade copper alloy materials designed to withstand the intense thermal cycling inherent in welding operations up to 400 amps. The material properties facilitate rapid heat dissipation, preventing the nozzle from overheating and adhering excessively to spatter. The standard shape profile ensures that the nozzle integrates seamlessly with the gun's gas diffuser, creating a seal that prevents gas leakage at the connection point. For industrial environments requiring strict adherence to welding procedure specifications (WPS), the fixed recess nature of this nozzle eliminates operator variability regarding nozzle placement, contributing to repeatable and reliable weld quality.

Installation is achieved via a friction fit or threaded connection depending on the specific Magnum gun sub-assembly, ensuring a secure attachment that resists vibration during operation. Regular inspection of the nozzle bore for spatter accumulation is recommended to maintain the designed gas flow characteristics. The KP23-37 represents a standard OEM replacement part, ensuring full compatibility with the intended Lincoln Electric equipment ecosystem.
