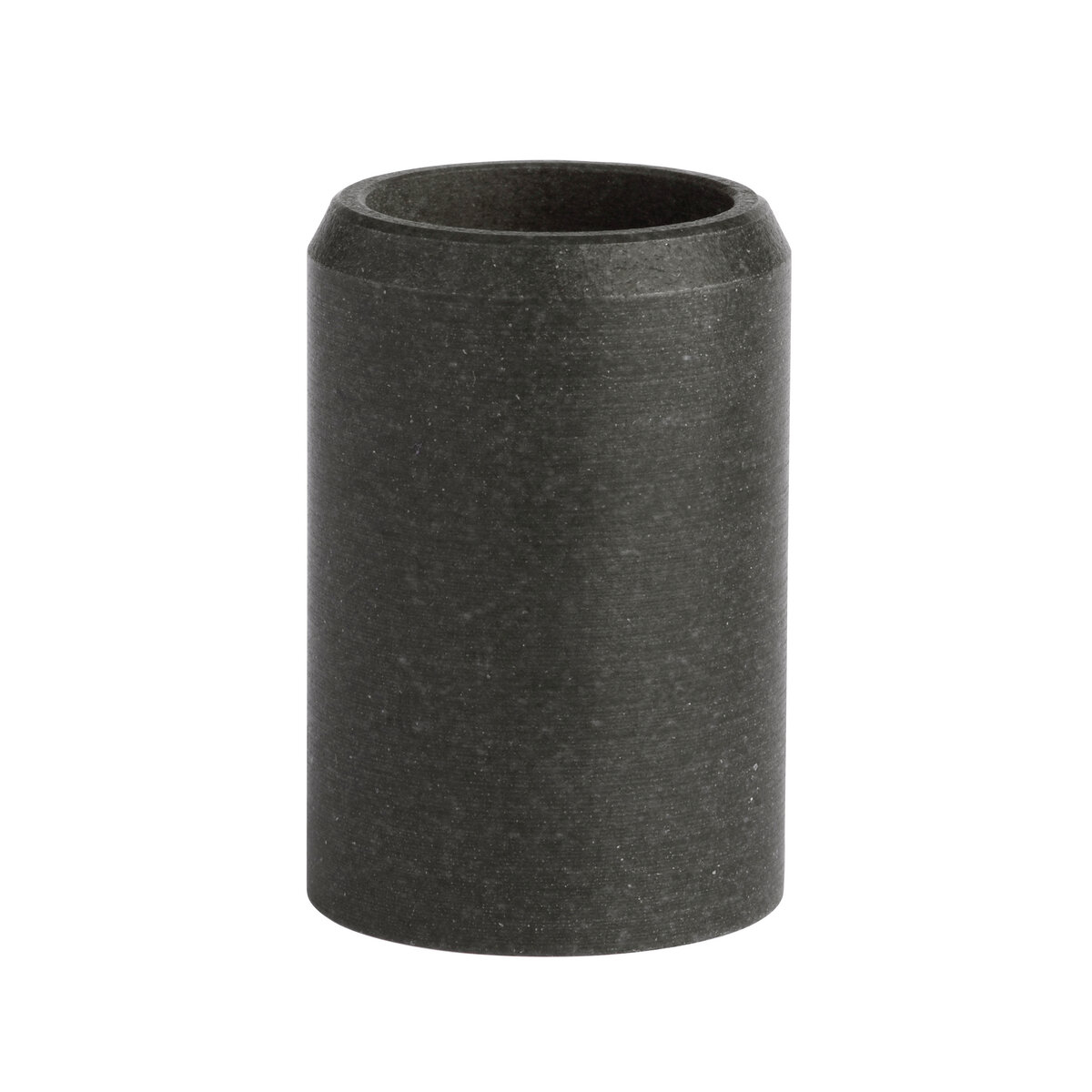

KP2773-2 - Lincoln Electric Magnum PRO 350A Gooseneck Insulator

Technical Overview of the Lincoln KP2773-2 Insulator

The Lincoln Electric KP2773-2 is a specialized gooseneck insulator engineered specifically for the Magnum PRO 350A series of MIG welding guns. In industrial welding environments, the integrity of the welding gun's front-end consumables is paramount for maintaining consistent arc quality and equipment longevity. This insulator serves a dual purpose: it provides essential electrical isolation between the electrically live contact tip/diffuser assembly and the outer nozzle (depending on nozzle type), and it acts as a physical barrier protecting the threaded connection of the gooseneck from spatter adhesion.

Manufactured from high-grade, heat-resistant composite materials, the KP2773-2 is designed to withstand the high thermal cycles associated with 350-amp welding procedures. Failure to use a proper insulator or utilizing a worn insulator can lead to dielectric breakdown, resulting in erratic arcs or potential shorting to the workpiece if the nozzle contacts the base metal. Furthermore, the accumulation of spatter on the gun tube threads can seize the nozzle, making routine maintenance and consumable changes difficult and time-consuming.

This component is a critical part of the Magnum PRO expendables system. It is required between threaded connections to ensure a tight seal and proper alignment of the gas diffuser. By maintaining the correct standoff and insulation, the KP2773-2 contributes to optimal shielding gas flow and reduces the risk of turbulence caused by damaged or ill-fitting components. For facility managers and welding engineers, stocking genuine OEM insulators like the KP2773-2 ensures that the welding fleet operates within manufacturer specifications, minimizing downtime related to torch repairs.

Installation is straightforward, designed to press or thread securely onto the standard Magnum PRO 350A gooseneck. Regular inspection of this component is recommended during daily maintenance routines. If signs of cracking, charring, or excessive spatter build-up are observed, immediate replacement is advised to prevent collateral damage to the more expensive gooseneck assembly.
