KP3057-22 - Lincoln KP3057-22 22-Degree Robotic MIG Gun Neck Air Cooled

Precision Robotic Welding Components

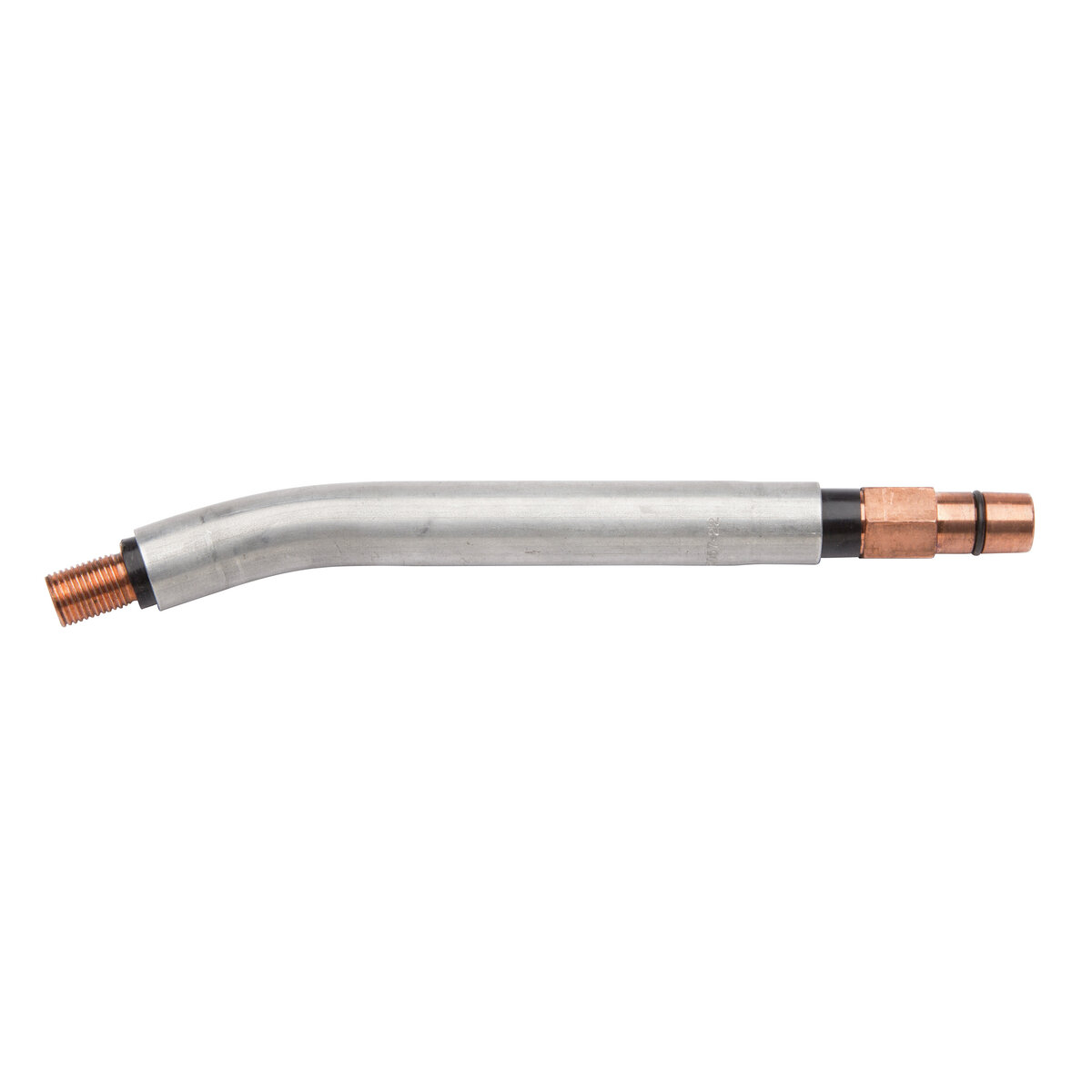

The Lincoln Electric KP3057-22 is a specialized gooseneck assembly designed for air-cooled robotic MIG welding torches. Engineered with a precise 22-degree bend angle, this component is critical for accessing specific joint geometries in automated welding cells. The 'A/C' designation indicates it is built for air-cooled systems, providing a balance of lightweight performance and durability for standard duty cycles.

A key technical feature of this model is the 'TREG TCP' specification. This indicates that the gooseneck is manufactured to match the Tool Center Point (TCP) of equivalent Tregaskiss robotic torches. For facility managers and welding engineers, this is a significant advantage; it allows for the utilization of Lincoln Electric torch technology in robotic cells that may have originally been programmed for Tregaskiss equipment, often without the need for extensive robot trajectory reprogramming.

This assembly is not just a bare metal tube; it comes equipped with a liner and consumables, ensuring that the replacement process restores the torch to optimal condition immediately. The robust construction ensures consistent electrical conductivity and gas flow, which are paramount for maintaining weld quality in high-volume automation. Please note that while the neck, liner, and consumables are included, the mounting kit is sold separately.

Technical Specifications

Designed for industrial automation, the KP3057-22 maintains strict dimensional tolerances. The 22-degree angle is verified to ensure the contact tip position remains constant relative to the mounting face, preserving the programmed TCP. This consistency is vital for preventing weld defects such as off-seam welds or variable stick-out lengths that can occur with inferior replacement parts.
