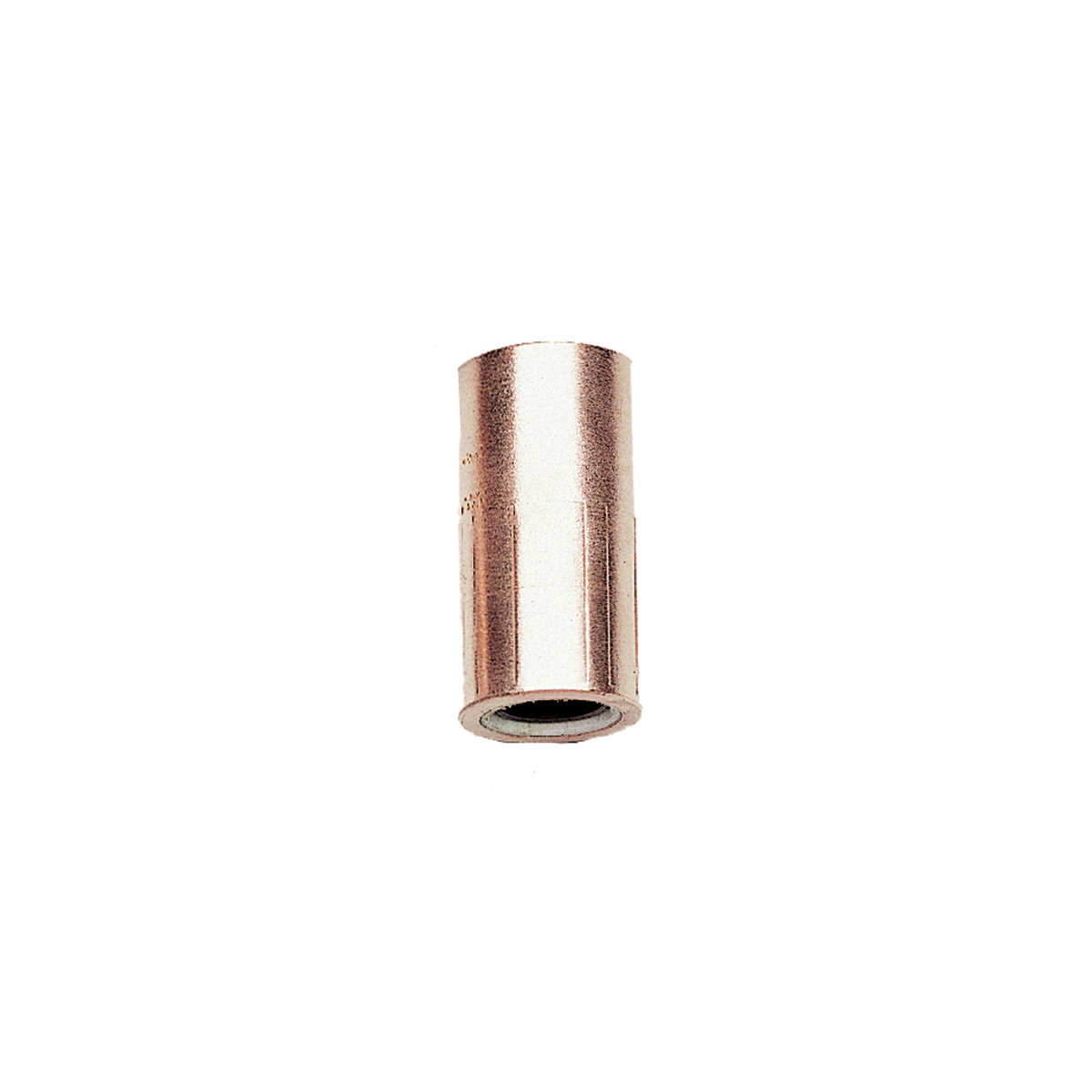

KP34CT - Lincoln Magnum Coarse Thread Nozzle Insulator

Technical Specification: Lincoln Electric KP34CT Insulator Assembly

The Lincoln Electric KP34CT is a specialized insulator assembly engineered for the Magnum® series of MIG welding guns, specifically compatible with 300A, 400A, and 500A models. This component plays a critical role in the thermal and electrical management of the MIG gun front-end assembly. Its primary function is to electrically isolate the gas nozzle from the electrically live contact tip and gas diffuser, preventing accidental arcing to the workpiece or fixture which could damage the equipment or compromise the weld quality.

One of the defining technical features of the KP34CT is its coarse thread configuration. Unlike fine-threaded insulators that are prone to cross-threading or seizing due to thermal expansion and spatter accumulation, the coarse thread design offers superior resistance to these common failure modes. This design consideration is particularly vital in high-amperage applications (up to 500A) where radiant heat is intense. The robust threading ensures that the nozzle can be removed and replaced efficiently during routine maintenance or contact tip changes, minimizing downtime in industrial environments.

Manufactured from high-grade, heat-resistant composite materials, the KP34CT withstands the harsh environment of the welding arc. It maintains its structural integrity and dielectric strength even under prolonged exposure to high temperatures. The assembly is designed to accommodate a broad range of wire diameters, from .035" (0.9mm) up to 1/8" (3.2mm), making it a versatile component for various fabrication setups ranging from light industrial to heavy structural welding. As a genuine Lincoln Electric OEM part, it ensures precise dimensional tolerances for a secure fit with Magnum® gun tubes and nozzles.

Proper maintenance of the insulator is essential for consistent gas coverage. A damaged or degraded insulator can lead to gas turbulence or leaks, resulting in porosity in the weld metal. The KP34CT is designed for longevity, but regular inspection is recommended to ensure optimal shielding gas flow and electrical safety.
