K52106-15 - Magnum PRO 550A Mechanized MIG Gun, 15 ft Cable

Product Overview

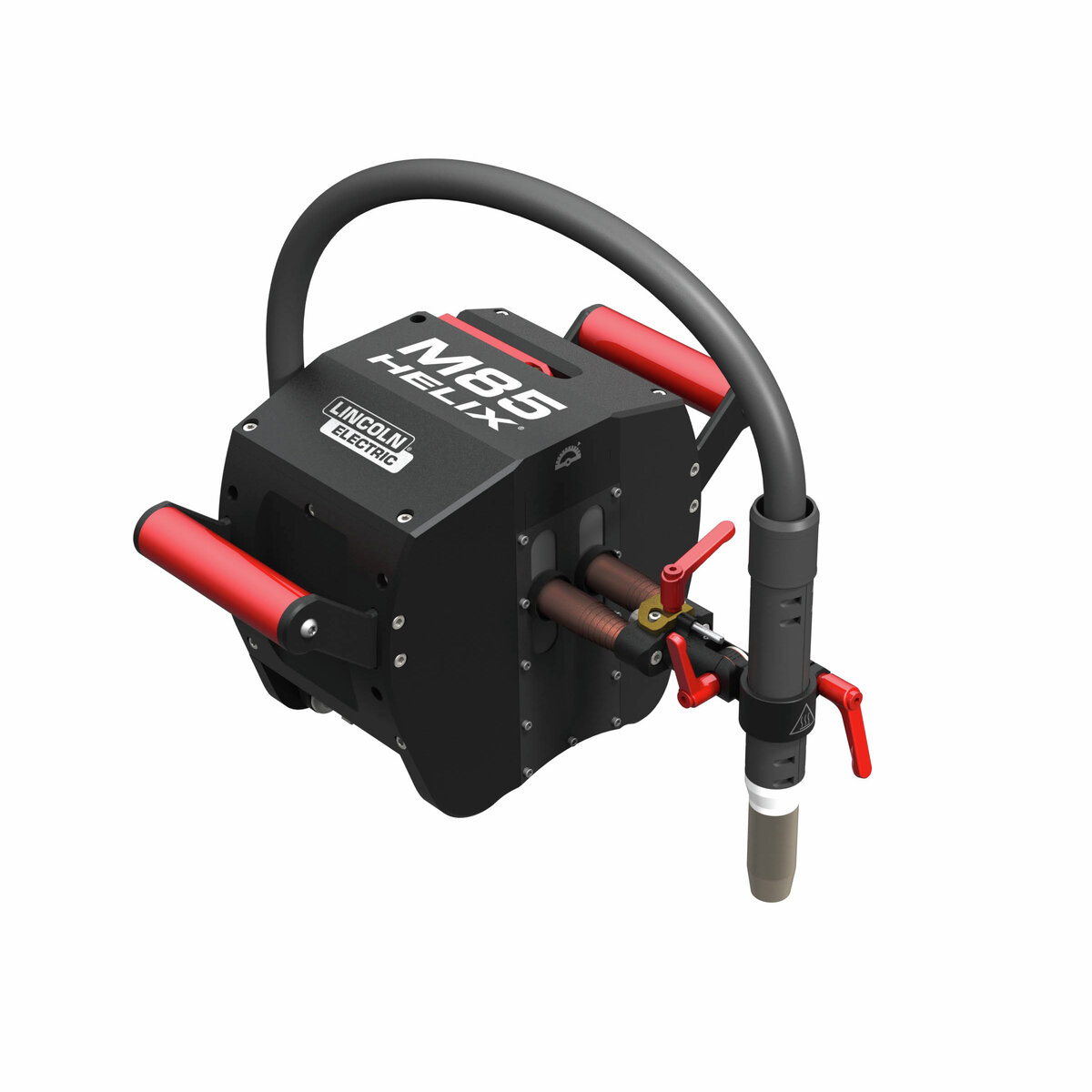

The Lincoln Electric Magnum® PRO 550 Amp Air Cooled Mechanized Torch (K52106-15) is a specialized welding gun assembly engineered for high-performance automated applications. Specifically designed for integration with the HELIX M85 orbital welding system, this torch interfaces seamlessly with APEX 30M or 4R220 Wire Feeders. The unit features a 15-foot (4.6 meter) cable assembly, providing sufficient reach for mechanized setups while maintaining consistent wire feeding characteristics.

Technical Construction

Constructed to withstand the rigors of high-amperage continuous welding, the K52106-15 utilizes a robust design architecture. A key technical advantage is the use of soldered connections within the gun, which significantly enhances electrical conductivity and heat dissipation compared to standard crimped connections. This design choice allows the torch to maintain a 550A rating in an air-cooled configuration, eliminating the need for complex water-cooling peripherals in many applications. The torch is shipped with a complete set of front-end consumables, including a thread-on diffuser, nozzle, and contact tip, ensuring immediate readiness for operation.

Consumable Compatibility

This gun assembly is designed to utilize standard Magnum® PRO 550A replacement parts, ensuring that maintenance teams can source consumables easily without stocking proprietary, low-volume parts. For applications requiring access to restricted spaces, the front end is adaptable to Magnum® PRO 350A parts, offering flexibility in joint geometry access. The included liner and connector kit are replaceable, extending the service life of the main cable assembly. The K52106-15 represents a durable, high-duty cycle solution for mechanized GMAW and FCAW processes.
