K3593-1A - Lincoln Magnum PRO Robotic Torch Package for Fanuc 100iC/6L with Air Blast

Technical Overview of the Lincoln K3593-1A

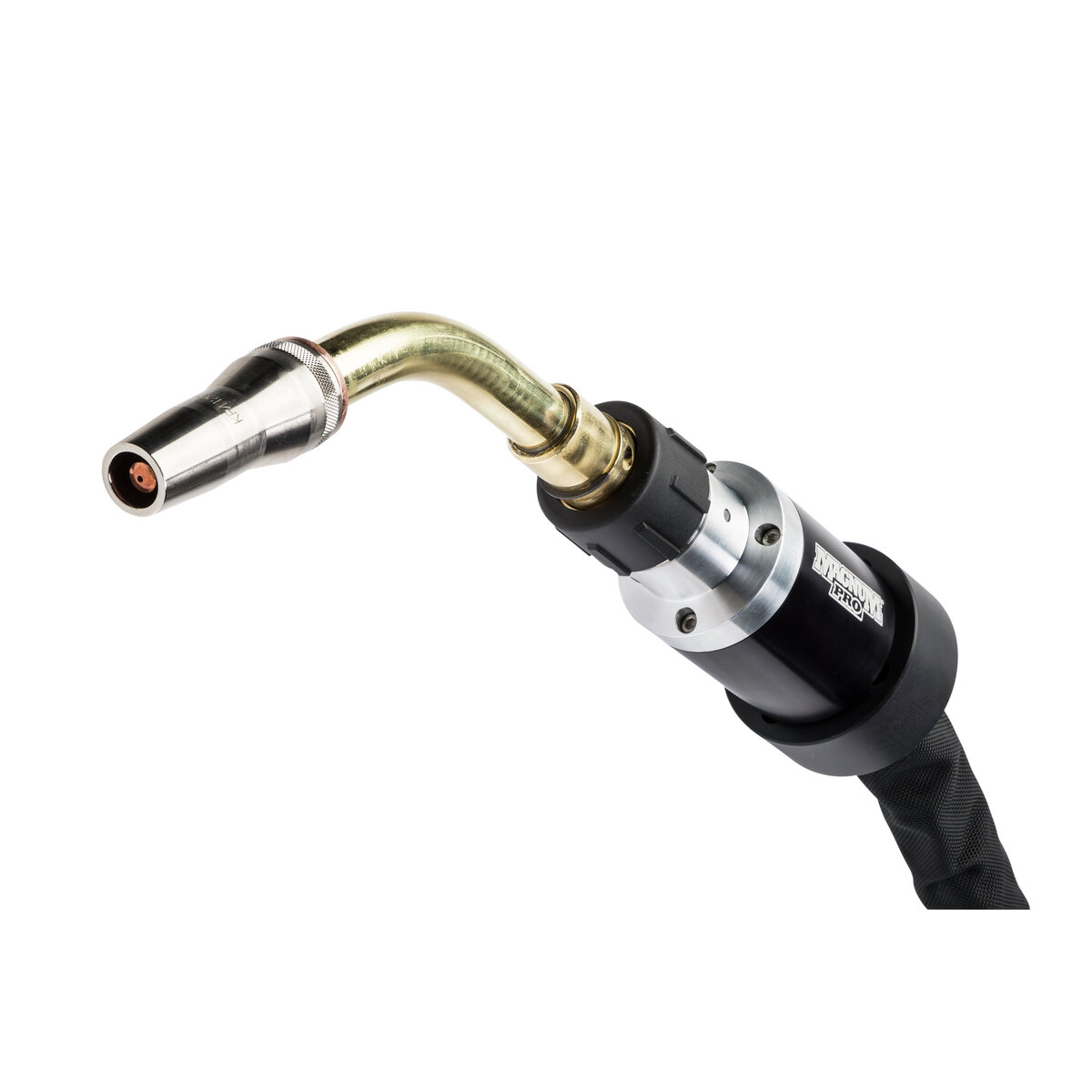

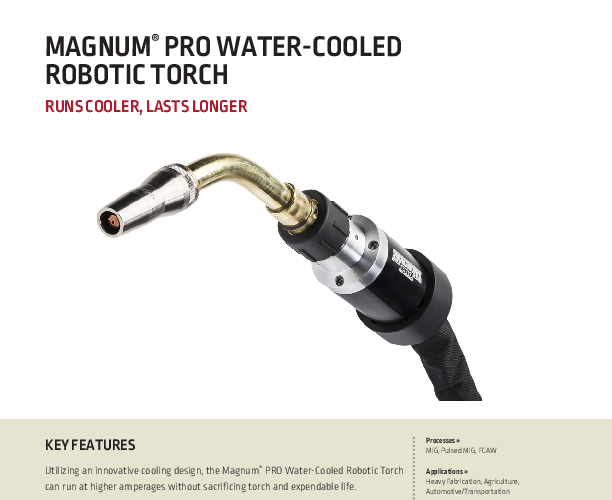

The Lincoln Electric K3593-1A is a specialized Magnum PRO Water-Cooled Robotic Torch package engineered specifically for integration with the Fanuc Arm 100iC/6L. This system is designed to address the rigorous demands of high-duty-cycle automated welding environments where thermal management and precision are paramount. The core of this assembly is its advanced water-cooling architecture, which efficiently dissipates heat generated during prolonged welding operations at elevated amperages. This ensures that the torch maintains optimal conductivity and structural integrity, preventing overheating that can lead to premature component failure or inconsistent weld quality.

A critical technical feature of this SKU is the inclusion of the K3352-1 Air Blast Kit. This subsystem allows for the integration of high-pressure air through the nozzle assembly, facilitating automated spatter removal and nozzle cleaning cycles without manual intervention. This is essential for maintaining uptime in continuous production lines. The package also includes the KP2920-4 Breakaway Disk, a safety mechanism designed to detect collisions and signal the robot controller to halt motion, thereby protecting the torch neck and the robot arm from catastrophic damage during accidental impacts.

The torch assembly comes pre-configured with a KP4403-45 45-degree Gun Tube and a KP44-3545-15 liner, optimized for wire diameters ranging from 0.035 to 0.045 inches. The modular design of the Magnum PRO platform allows for streamlined maintenance; the K4397-1 Nose Cone and K4398-1 Torch Housing are engineered for quick replacement and secure fitment. By utilizing Lincoln's proprietary Copper Plus contact tip technology (compatible with this system), the K3593-1A ensures superior electrical transfer and wear resistance compared to standard copper tips, reducing the frequency of tool center point (TCP) adjustments.

Engineers and integrators will appreciate the comprehensive nature of this kit, which consolidates the necessary mounting hardware, cabling, and fluid management components into a single SKU, simplifying the bill of materials for workcell commissioning. The direct mount design for the Fanuc 100iC/6L ensures that cable management is optimized to prevent torsion and strain during complex 6-axis articulation.
