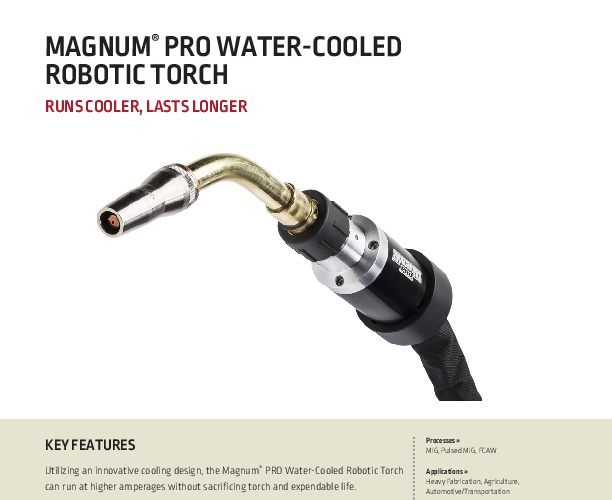

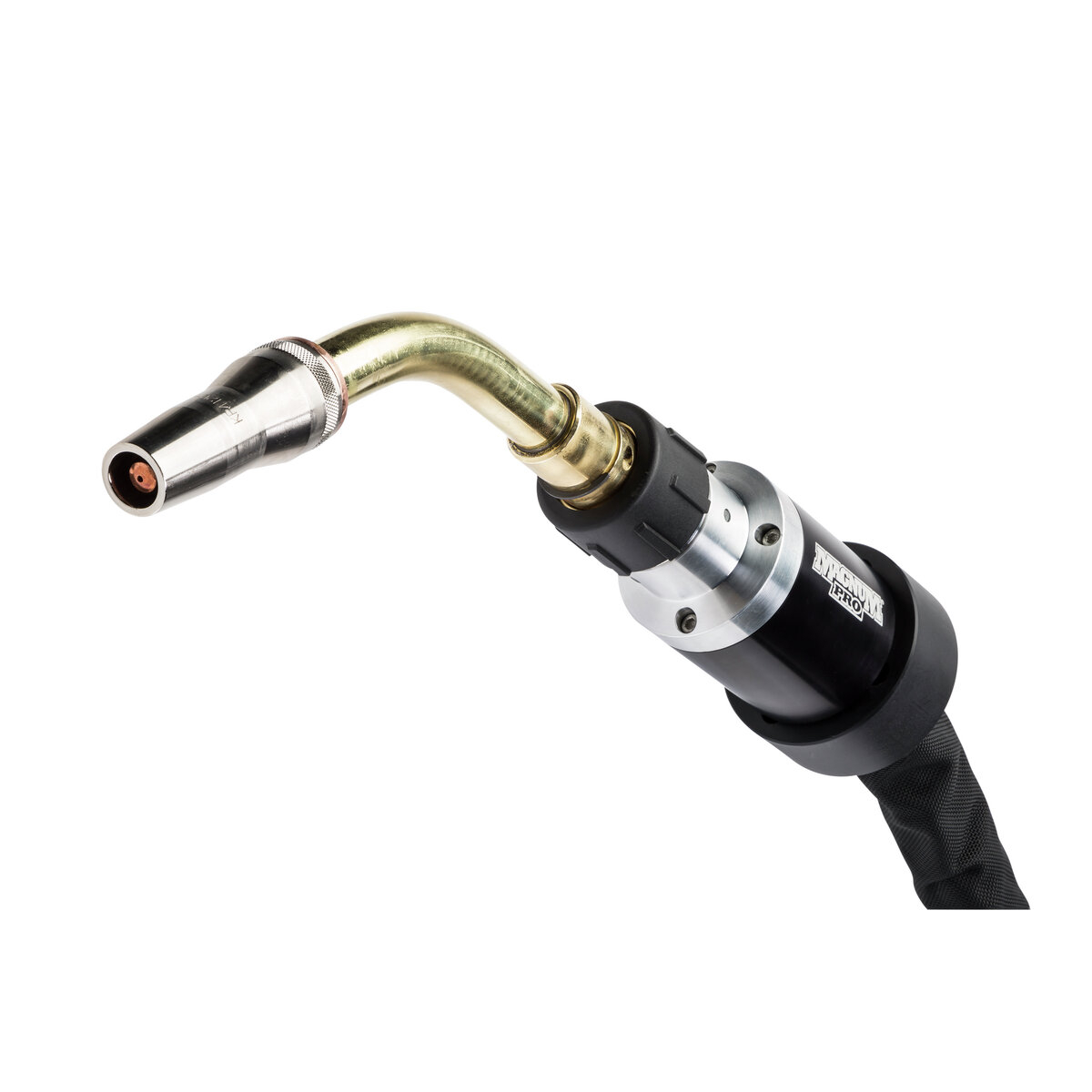

K3593-2A - Lincoln Magnum PRO Robotic Torch 525A Water-Cooled for Fanuc 120iC/10L

High-Performance Robotic Welding Solution

The Lincoln Electric K3593-2A Magnum PRO Water-Cooled Robotic Torch is a premier solution engineered specifically for integration with the Fanuc 120iC/10L robotic arm. Designed to meet the rigorous demands of modern industrial automation, this torch combines high amperage capabilities with exceptional durability. It is rated to operate at 525 Amps at a 100% duty cycle using 90/10 mixed gas, making it ideal for heavy-fabrication environments where continuous arc-on time is critical. The water-cooled design utilizes both conduction and convection methodologies to dissipate heat effectively from the nozzle and contact tip, ensuring consistent performance over long production shifts.

Advanced Cooling and Durability

Thermal management is the cornerstone of the K3593-2A's design. By keeping the front-end consumables cool, the torch significantly extends the life of contact tips and nozzles, directly translating to reduced operational costs and fewer interruptions for maintenance. The gun tube itself features a robust dual-sheath construction. This design not only protects the internal components but also enhances the structural rigidity of the torch. In the event of a crash or collision, the reinforced sheath minimizes deformation, thereby maintaining Tool Center Point (TCP) repeatability. Consistent TCP is vital for robotic programming, ensuring that the weld bead is placed accurately every time without the need for constant reprogramming.

Integrated Air Blast and Ease of Installation

To further support automated efficiency, this model comes equipped with an Air Blast feature. This functionality allows high-pressure air to be forced through the nozzle during the cleaning cycle, effectively dislodging spatter and debris that could otherwise obstruct gas flow or cause short circuits. Installation of the K3593-2A is streamlined thanks to its floating fitting design, which ensures a secure, leak-free connection to the water cooling lines. Visible hash marks on the torch body assist maintenance personnel in setting the torch to the correct orientation and depth quickly, reducing setup time during changeovers. This torch represents a synthesis of Lincoln Electric's welding expertise and the specific mechanical requirements of Fanuc robotics.
