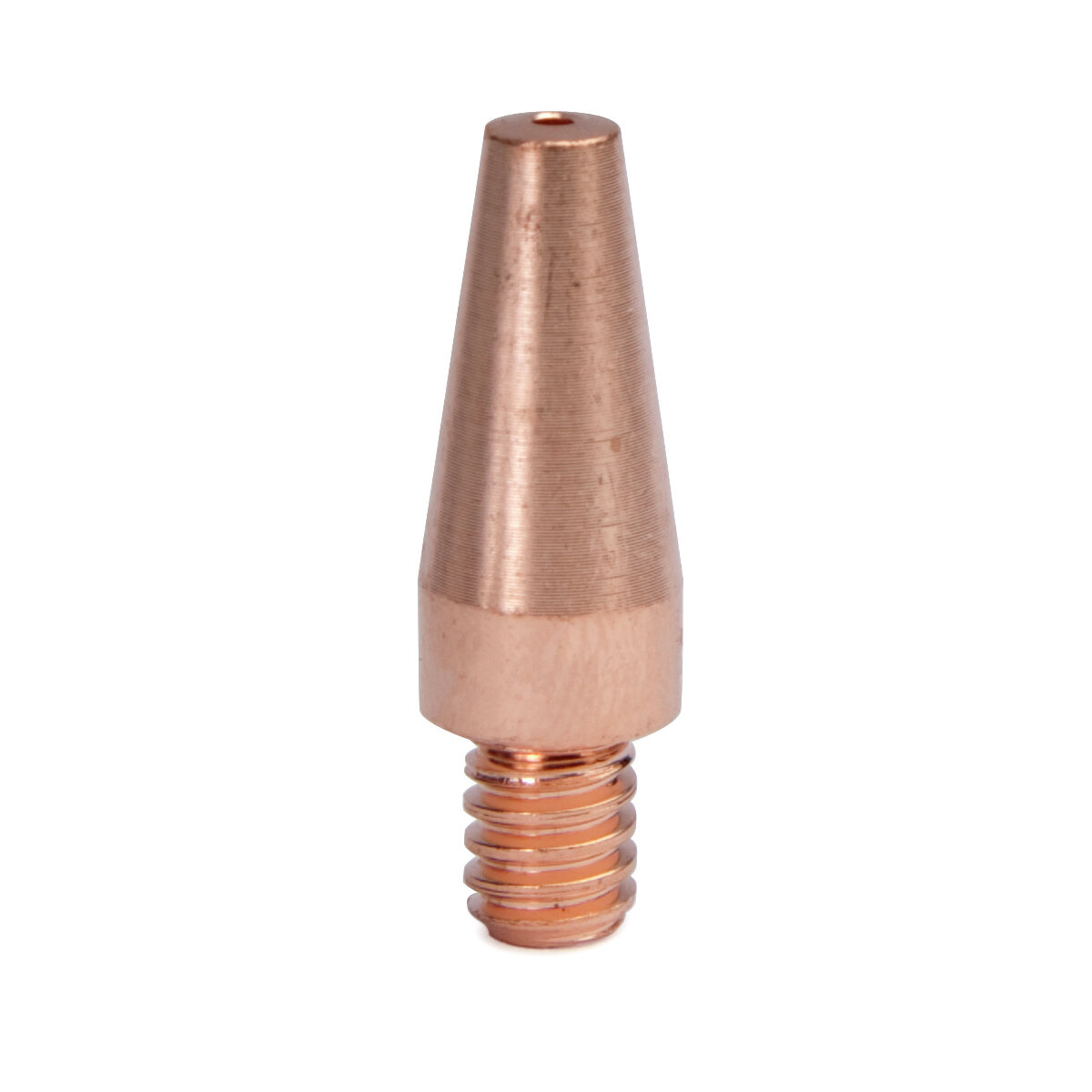

KP2744-030T-B100 - Lincoln Magnum PRO 350A Contact Tip .030 Tapered (100 Pack)

Technical Overview of Lincoln Electric KP2744-030T-B100

The Lincoln Electric KP2744-030T-B100 is a bulk package of 100 premium contact tips designed specifically for the Magnum® PRO series of semi-automatic and robotic MIG guns. Engineered for industrial applications requiring 350A current capacity, these tips accommodate 0.030-inch (0.8 mm) solid or flux-cored welding wires. The defining characteristic of this consumable is the proprietary Copper Plus® alloy composition, which provides a larger thermal mass compared to standard OEM tips. This increased mass, combined with the specific metallurgy, facilitates rapid heat dissipation, maintaining the structural integrity of the tip bore even under high duty cycles.

A critical failure point in MIG welding is the degradation of the contact tip bore, which leads to poor electrical conductivity and micro-arcing. The KP2744-030T-B100 addresses this with its robust wall thickness and superior hardness. The "T" in the SKU designates a Tapered profile. This geometry reduces the diameter of the tip at the arc end, allowing the welder to access tighter joint configurations (such as deep V-grooves or fillet welds) while maintaining adequate shielding gas coverage. The tapered design also minimizes the surface area exposed to spatter accumulation compared to flush or recessed standard tips.

Mechanically, these tips feature Lincoln's patent-pending anti-seize thread design. The threads are slightly flattened, which prevents the tip from fusing to the gas diffuser during thermal expansion and contraction cycles. This ensures that tips can be removed easily with standard pliers or a welper, reducing downtime during maintenance. The 350A rating makes this tip suitable for medium-to-heavy fabrication where heat management is critical but the physical size of a 550A tip would be obstructive. This bulk pack is ideal for high-volume manufacturing environments utilizing Lincoln Magnum PRO 250L, 350L, or 450L gun assemblies.
