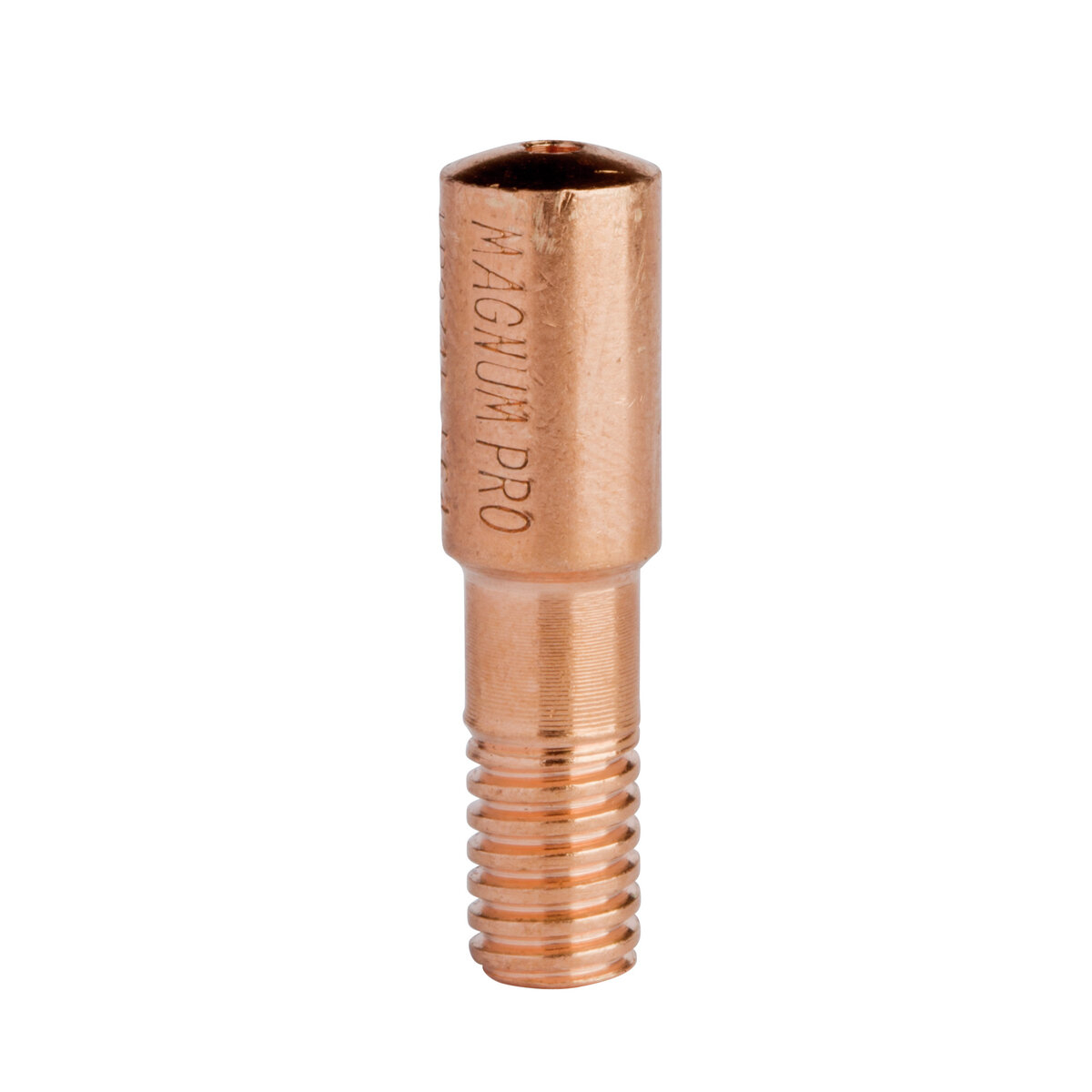

KP2745-564 - Lincoln Magnum PRO 550A Contact Tip 5/64 Copper Plus (10-Pack)

High-Performance Thermal Management for Industrial MIG Welding

The Lincoln Electric KP2745-564 Copper Plus Contact Tip represents a significant engineering advancement in MIG welding consumables, specifically designed for the Magnum PRO series of welding guns. In high-amperage industrial applications, thermal management is the critical factor determining consumable life and arc stability. This contact tip addresses these challenges through its proprietary Copper Plus technology. By utilizing a larger physical diameter and increasing the total copper mass of the tip, Lincoln Electric has enhanced the component's ability to act as a heat sink. This increased thermal capacity allows for more efficient heat dissipation away from the bore, keeping the tip cooler during prolonged welding cycles at amperages up to 550A.

Beyond thermal dynamics, the KP2745-564 addresses the mechanical failure modes common in high-heat environments. The tip features Lincoln's patented Anti-Seize thread design. Unlike standard threads that can deform and fuse to the diffuser under thermal expansion and contraction, the Anti-Seize threads utilize a flattened profile that reduces the contact surface area prone to bonding. This engineering choice ensures that the tip remains removable even after being subjected to extreme heat, significantly reducing the likelihood of damaging the gas diffuser or gun tube during maintenance.

This specific SKU is precision-machined for 5/64-inch (2.0 mm) welding wire, ensuring optimal electrical contact and arc transfer. The consistent bore geometry improves arc targeting and reduces micro-arcing within the tip, which is a primary cause of premature wear. For industrial operations utilizing Magnum PRO platforms, the KP2745-564 offers a tangible reduction in downtime associated with consumable changeovers, providing a lower total cost of ownership through extended component lifespan and improved process reliability.
