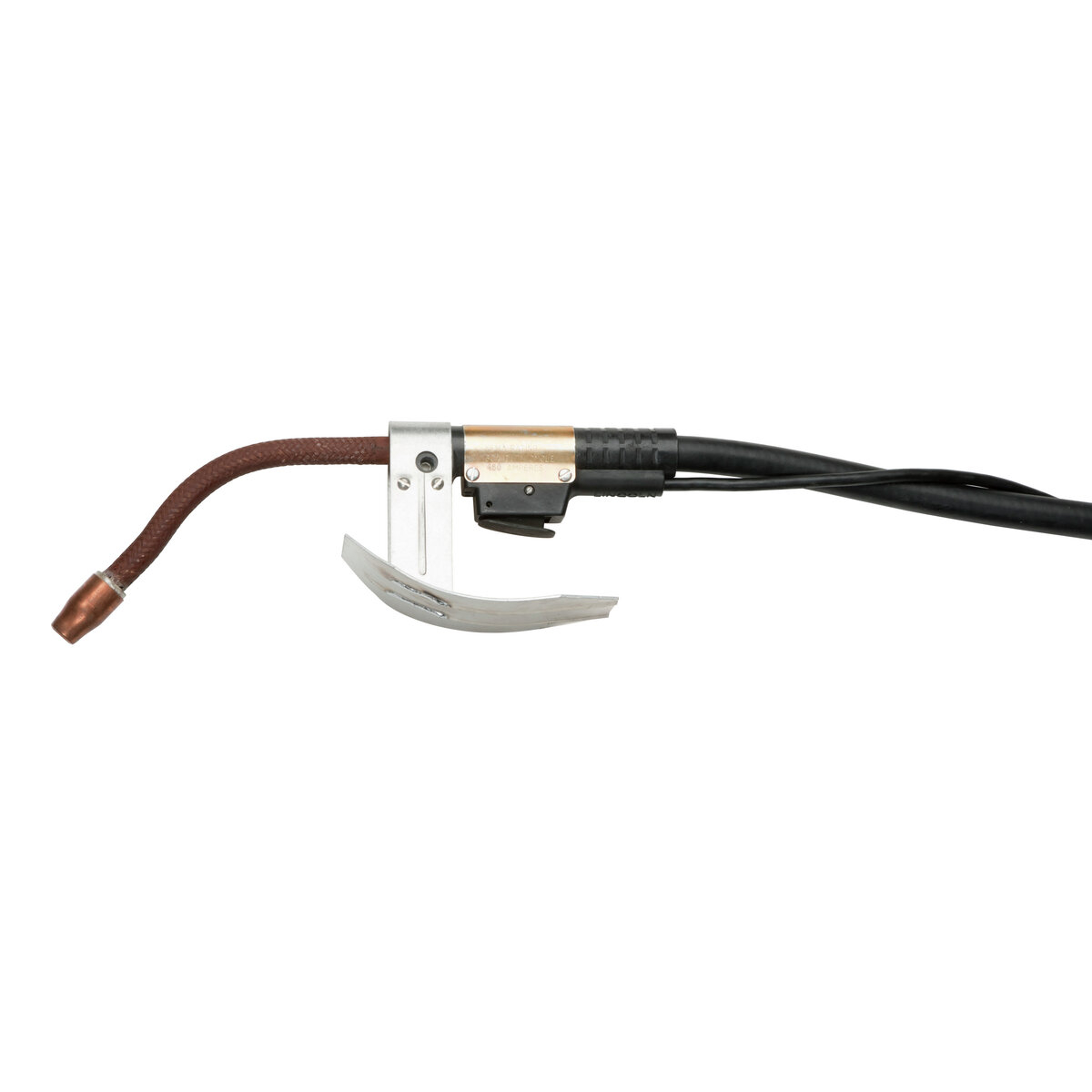

The Lincoln Electric Magnum Innershield 450A Welding Gun (K115-3) is a premier solution for semi-automatic flux-cored self-shielded (FCAW-SS) welding applications. Engineered to meet NEMA specification EW3, this gun is rated for 450 amps at a 60% duty cycle, ensuring consistent performance in demanding industrial environments. The K115-3 is designed to handle wire diameters ranging from 3/32 inch (2.4 mm) to 0.120 inch (3.0 mm), making it a versatile tool for heavy fabrication and structural steel work. This specific model comes pre-configured for 3/32-inch wire and includes a 10-foot (3.0 m) cable assembly.
Technical construction of the Magnum Classic series prioritizes electrical efficiency and mechanical longevity. The gun features a heavy-duty trigger switch designed for positive electrical contact and extended service life, reducing the frequency of maintenance intervals. The cable assembly is protected by a reinforced rubber jacket, which provides superior resistance to cuts, abrasion, and heat—common hazards in field erection and bridge ironworking. The unit is air-cooled, relying on the ambient atmosphere and the flow of the flux-cored process to maintain operating temperatures, eliminating the need for external water cooling systems.
The K115-3 is equipped with an 82-degree gun tube, offering a standard angle suitable for most flat and horizontal welding positions. For applications requiring access to tight or difficult-to-reach joints, the modular design allows for the installation of alternate gun tubes (sold separately). Included with the gun are essential consumables to get started immediately: a 3/32 Severe Duty Contact Tip (KP2103-4B1) and two insulated guides for different stickout lengths (1-1/2 inch and 2-3/4 inch), ensuring precise wire placement and arc control.
This gun is widely utilized in sectors such as shipbuilding, heavy equipment manufacturing, and general construction. Its ability to feed large diameter cored wires reliably without the need for external shielding gas makes it a preferred choice for outdoor applications where wind would disrupt gas-shielded processes. The Lincoln K115-3 represents a synthesis of power, durability, and practical design for the professional welder.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:450 |
| Duty Cycle:60% |
| Packaging Description:pack of 1 |
| Torch Type:FCAW-SS, Innershield |
| Cable Length:10 ft |
| Wire Diameter Capacity:3/32 in, 0.120 in |
| Tube Angle:82 Degrees |
| Cooling Method:Air Cooled |
| Applications:Structural Fabrication, Construction, Heavy Equipment |
