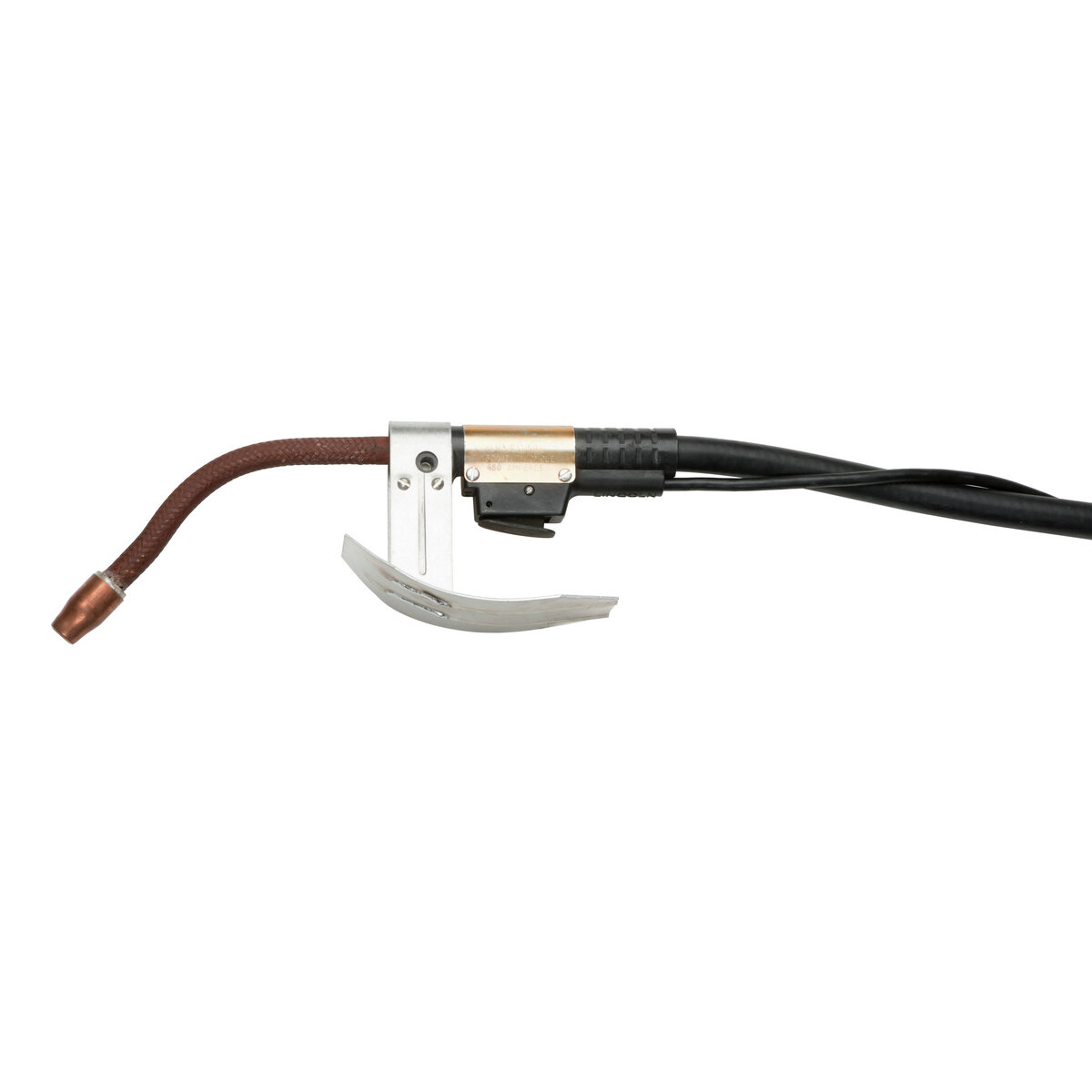

The Lincoln Electric K115-8 Magnum Innershield Welding Gun is a premier choice for heavy-duty industrial applications requiring robust Flux-Cored Self-Shielded (FCAW-SS) capabilities. Engineered to meet NEMA specification EW3, this gun is rated for 450 amps at a 60% duty cycle, making it a powerhouse for continuous welding operations in demanding environments. The K115-8 is part of the renowned Magnum Classic series, which has been the industry standard for over 40 years, trusted by professionals for its durability and performance.
This assembly features a 15-foot (4.5 meter) cable, providing ample reach for large fabrication projects such as shipbuilding, bridge construction, and heavy equipment repair. The cable is protected by a reinforced rubber jacket that adds significant strength and resistance to cuts, abrasion, and heat, ensuring a long service life even on rough jobsites. The gun is equipped with a 45-degree gun tube, optimized to allow welders to access joints with limited accessibility while maintaining a comfortable welding posture.
Designed for versatility and ease of use, the K115-8 comes ready to feed large diameter wires ranging from 7/64 inch (2.8 mm) to .120 inch (3.0 mm). It includes a heavy-duty trigger switch designed for positive electrical contact and extended operational life, reducing the frequency of maintenance and replacement. The gun's modular design allows for the use of alternate gun tubes and a wide range of Magnum consumables, ensuring adaptability to various welding scenarios.
Included with the gun are essential consumables to get you started immediately: a 7/64" severe duty contact tip, a .120" severe duty contact tip, and two insulated guides with different stickout lengths (1-1/2" and 2-3/4"). Whether you are working on structural ironworking or pipe fabrication, the Lincoln K115-8 delivers the consistent arc stability and rugged reliability required for high-quality Innershield welding.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:450 |
| Duty Cycle:60% |
| Packaging Description:1 Per Ea |
| Torch Type:FCAW-SS, Innershield |
| Cable Length:15 ft |
| Amperage Rating:450 A |
| Wire Size Range:7/64 in, 0.120 in |
| Neck Angle:45 Degrees |
| Cooling Method:Air Cooled |
| Process:Flux-Cored Arc Welding (FCAW-S) |
