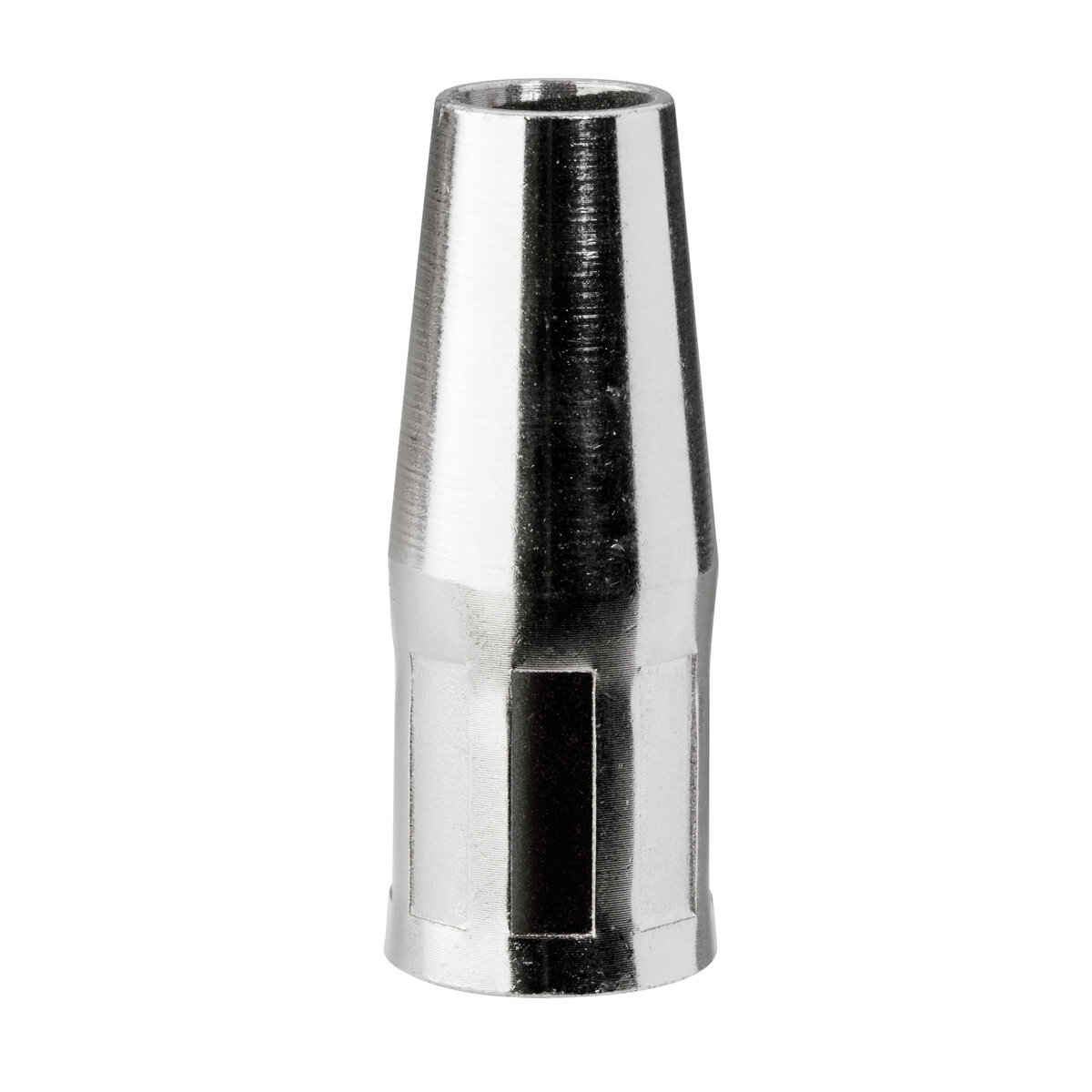

KP3075-1-50F - Lincoln Magnum PRO 100L/175L Flush Nozzle 1/2-inch KP3075-1-50F

Technical Overview of the Lincoln KP3075-1-50F Magnum PRO Nozzle

The Lincoln Electric KP3075-1-50F is a high-performance gas nozzle engineered specifically for the Magnum® PRO 100L and 175L series of MIG welding guns. This consumable is a critical component in the shielding gas delivery system, ensuring laminar flow coverage over the weld pool to prevent porosity and atmospheric contamination. The nozzle features a 1/2-inch (12.7 mm) inner diameter (ID), which is the standard orifice size for general-purpose fabrication, offering a versatile balance between gas coverage and access to tighter joints.

Constructed with durability in mind, the KP3075-1-50F utilizes a robust copper alloy base that is nickel-plated. This plating serves a dual purpose: it reflects radiant heat to keep the nozzle cooler during extended welding arcs, and it significantly reduces the adhesion of weld spatter. By minimizing spatter buildup, the nozzle maintains a clear gas path for longer periods, reducing the frequency of cleaning intervals and downtime. The nozzle is rated for applications up to 350 Amps, providing ample thermal capacity for the duty cycles typically associated with the Magnum PRO 100L and 175L guns.

The mechanical design features a thread-on connection utilizing coarse threads. Unlike fine threads that can easily cross-thread or seize due to thermal expansion and spatter ingress, the coarse thread design ensures reliable removal and installation even after repeated heating and cooling cycles. This specific model features a "Flush" tip geometry. In a flush configuration, the nozzle exit is aligned with the end of the contact tip. This setup is preferred for short-circuit MIG welding and general applications where the operator requires good visibility of the arc while maintaining adequate gas shielding without the excessive stick-out required by recessed nozzles.

Designed to accommodate wire sizes from 0.025" to 0.045", this nozzle is an essential OEM replacement part for maintaining the performance standards of Lincoln Electric welding systems. It integrates seamlessly with the Magnum PRO consumable platform, ensuring concentricity with the contact tip and gas diffuser for consistent weld quality.
