The Lincoln Electric Magnum PRO 100SG Spool Gun (K3269-1) is an essential accessory for industrial maintenance and fabrication professionals requiring reliable aluminum welding capabilities on compact power sources. Designed to eliminate the common feeding issues associated with pushing soft aluminum wire through standard MIG torches, this spool gun locates the wire spool directly at the drive rolls on the gun itself. This short travel distance ensures consistent feeding performance, preventing bird-nesting and wire deformation that can compromise weld quality.
Engineered for durability and performance, the 100SG utilizes Lincoln's premium Magnum PRO expendables. The Copper Plus contact tips feature a larger diameter and mass, improving heat dissipation and extending tip life in high-heat aluminum applications. The Anti-Seize threads on the contact tips and diffusers prevent fusing, ensuring easy maintenance and reduced downtime in the shop. Rated for 130 amps at a 30% duty cycle, this unit is perfectly matched for light-to-medium duty fabrication and repair tasks.
Weighing only 3.5 lbs (1.6 kg), the gun is designed to minimize operator fatigue during extended use. The ergonomic handle features a balanced design and a full-travel mechanical trigger that provides excellent tactile feedback, even when wearing heavy welding gloves. The unit connects directly to the 4-pin receptacle on compatible Lincoln Power MIG machines (such as the 140C, 180C, and 210 MP), requiring no expensive outboard adapters or bulky control modules. This direct integration streamlines setup and ensures immediate compatibility with your existing fleet of Lincoln compact welders.

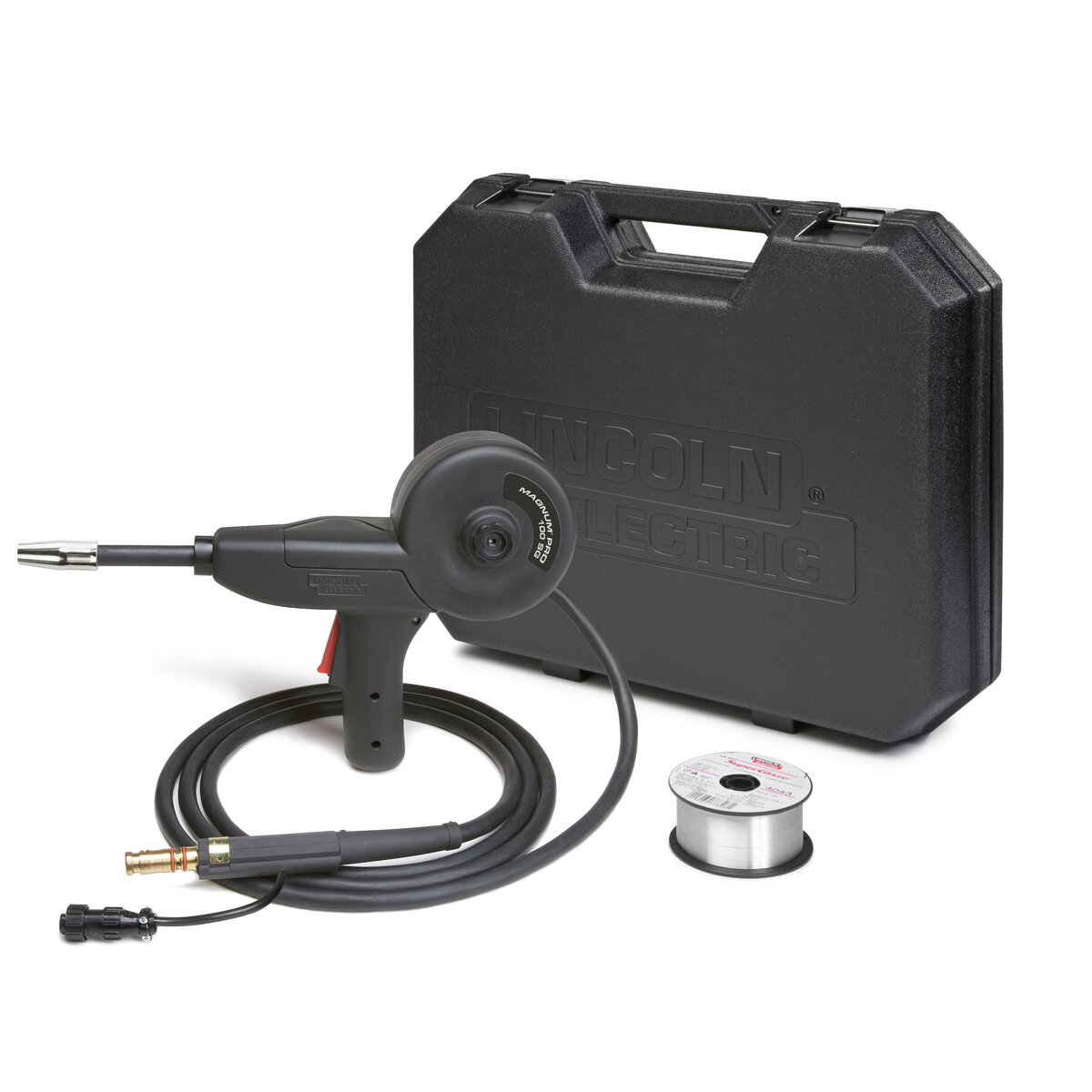

The K3269-1 package is a complete turnkey solution, supplied with a 10-foot cable, a spool of 4043 aluminum alloy wire, drive rolls, and a set of contact tips, all housed in a sturdy, cushioned carrying case. This ensures that the equipment remains protected during transport between job sites and storage, maintaining the precision of the drive mechanism.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Length:10 ft |
| Wire Type:Aluminum |
| Amperage:130 |
| Item:Spool Gun |
| Wire Size:0.030" - 0.035" |
| Amperage Rating:130 A |
| Duty Cycle:30% @ 130A |
| Wire Diameter Range:0.030-0.035 in (0.8-0.9 mm) |
| Cable Length:10 ft (3.0 m) |
| Cooling Method:Air Cooled |
| Connection Type:4-Pin, Direct Connect |
| Weight:3.5 lbs (1.6 kg) |
| Compatible Models:POWER MIG 216, POWER MIG 210 MP, POWER MIG 180 Dual, POWER MIG 180C, POWER MIG 140C, SP-140T, SP-180T |
| Packaging Description:1 per each |
| Front End:Magnum |
| Back End:Lincoln |
