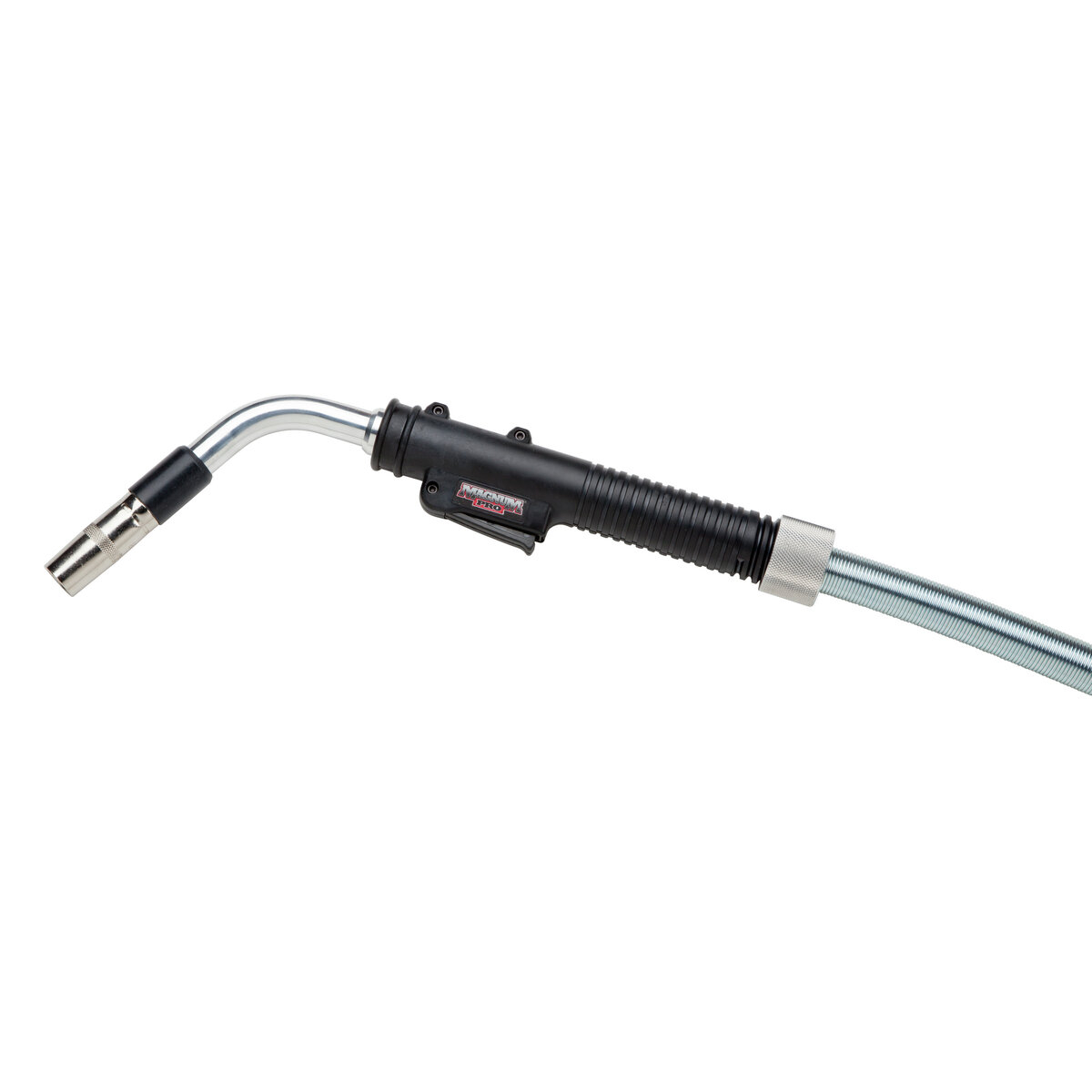

The Lincoln Electric Magnum® PRO 350 Dual Procedure Welding Gun (K3131-3) is a premium semiautomatic MIG gun designed for the most demanding industrial environments. Engineered for high-amperage applications, this air-cooled gun delivers a robust 350 Amps at 100% duty cycle when using CO2 gas, and 285 Amps at 100% duty cycle with mixed gas. It is the ideal tool for heavy fabrication, shipbuilding, and construction where downtime is not an option.
This model features Lincoln's Dual Procedure technology, equipped with 4 trigger leads. When paired with a compatible wire feeder, this allows the welder to toggle between two different welding schedules (such as voltage and wire feed speed) directly from the gun trigger. This feature significantly increases efficiency by reducing the need to return to the power source to adjust settings between different joint configurations or positions.
The Magnum PRO 350 utilizes Lincoln Electric's Copper Plus® contact tips. These tips are designed with a larger diameter and greater mass than standard tips, improving heat dissipation and extending tip life. The patent-pending Anti-Seize tip and diffuser thread design further ensures that consumables remain easy to remove and replace, even after long periods of high-heat welding.
Despite its heavy-duty rating, the gun is designed with operator comfort in mind. The Comfort Grip™ handle is barrel-styled, lightweight, and balanced to minimize hand fatigue during long shifts. The Secure-Lock gun tube prevents the nozzle end from rotating unexpectedly, ensuring consistent alignment and weld quality.
| Additional Information |
|---|
| Amperage:350 |
| Brand:Lincoln Electric |
| Packaging Description:pack of 1 |
| Torch Type:MIG Gun, Semiautomatic |
| Amperage Rating:350 A |
| Cable Length:20 ft. |
| Duty Cycle:100% |
| Wire Diameter:0.035", 5/64" |
| Cooling Method:Air-cooled |
| Process Type:MIG, Pulsed MIG, Flux-Cored |
