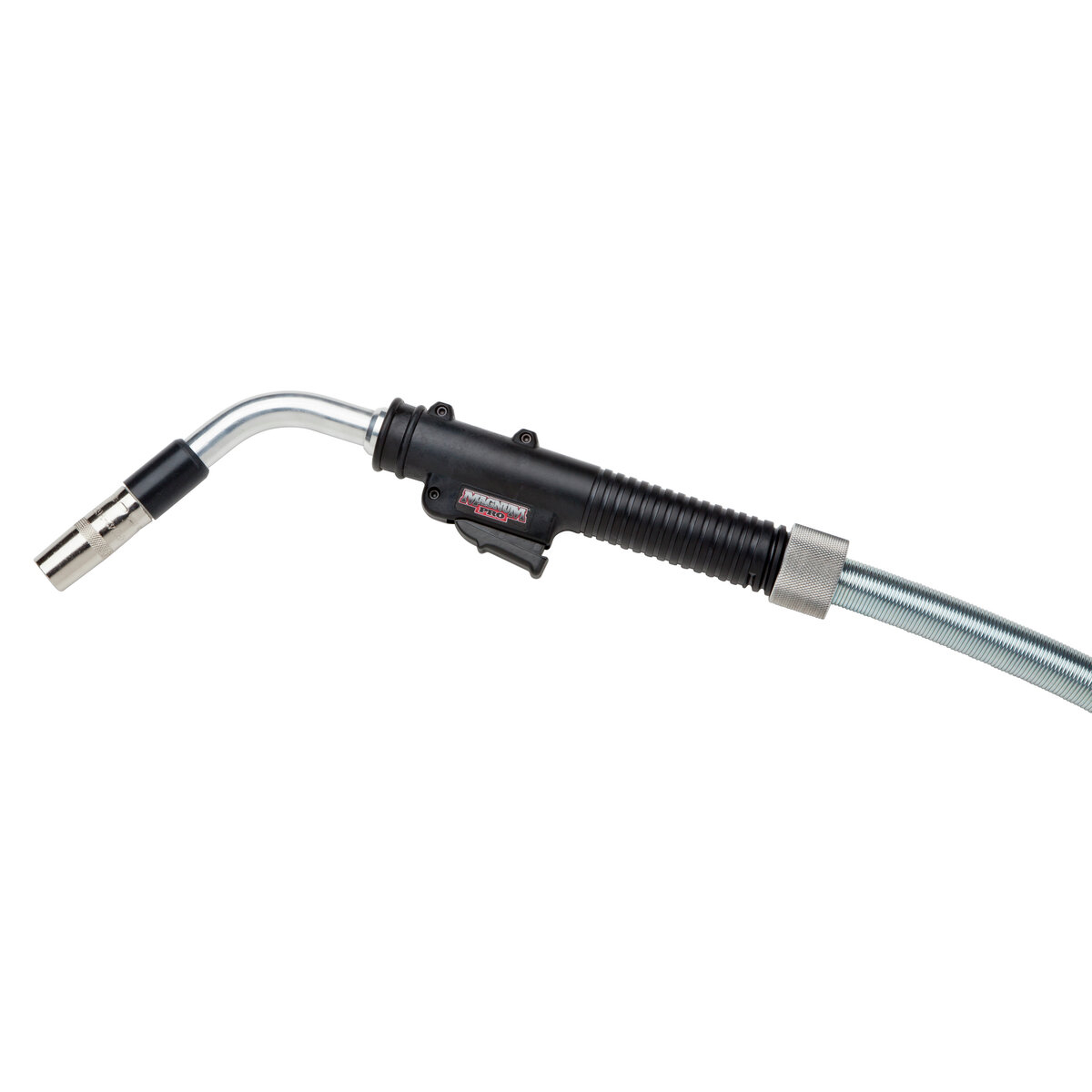

K3132-2 - Lincoln Magnum PRO 350 Dual Schedule MIG Gun, 15ft, 350A

Technical Overview of the Lincoln Electric Magnum PRO 350 Dual Schedule

The Lincoln Electric Magnum PRO 350 Dual Schedule Welding Gun (K3132-2) is a high-performance, air-cooled semiautomatic MIG gun engineered for industrial fabrication environments. This model is specifically distinguished by its Dual Schedule capability, which integrates a trigger mechanism allowing the welder to toggle between two distinct welding procedures (voltage and wire feed speed) directly from the gun. This feature is critical for applications requiring frequent parameter changes, such as alternating between vertical and flat welds or varying material thicknesses, without the downtime associated with returning to the power source.

Technically, the K3132-2 is rated for 100% duty cycle operation at 350 Amps when using CO2 shielding gas, and 285 Amps at 100% duty cycle with mixed gases. This high duty cycle is achieved through the use of high-quality copper and aircraft-grade aluminum components which ensure superior electrical contact and heat dissipation. The gun supports a wire diameter range of 0.035 inches to 5/64 inches (0.9 mm to 2.0 mm), making it versatile for MIG, Pulsed MIG, and Flux-Cored processes.

A key engineering advancement in this assembly is the utilization of Lincoln Electric's Copper Plus® Contact Tips. These tips feature a larger diameter and greater mass compared to standard tips, which significantly improves heat dissipation and extends tip life. Furthermore, the gun incorporates a patent-pending Anti-Seize™ tip and diffuser thread design to prevent the seizing of consumables, a common issue in high-heat applications. The Secure-Lock™ gun tube design mechanically locks the tube in place, resisting rotational slipping that can occur during aggressive manipulation of the torch. The 15-foot cable assembly provides ample reach for large weldments while maintaining consistent wire feeding characteristics.
