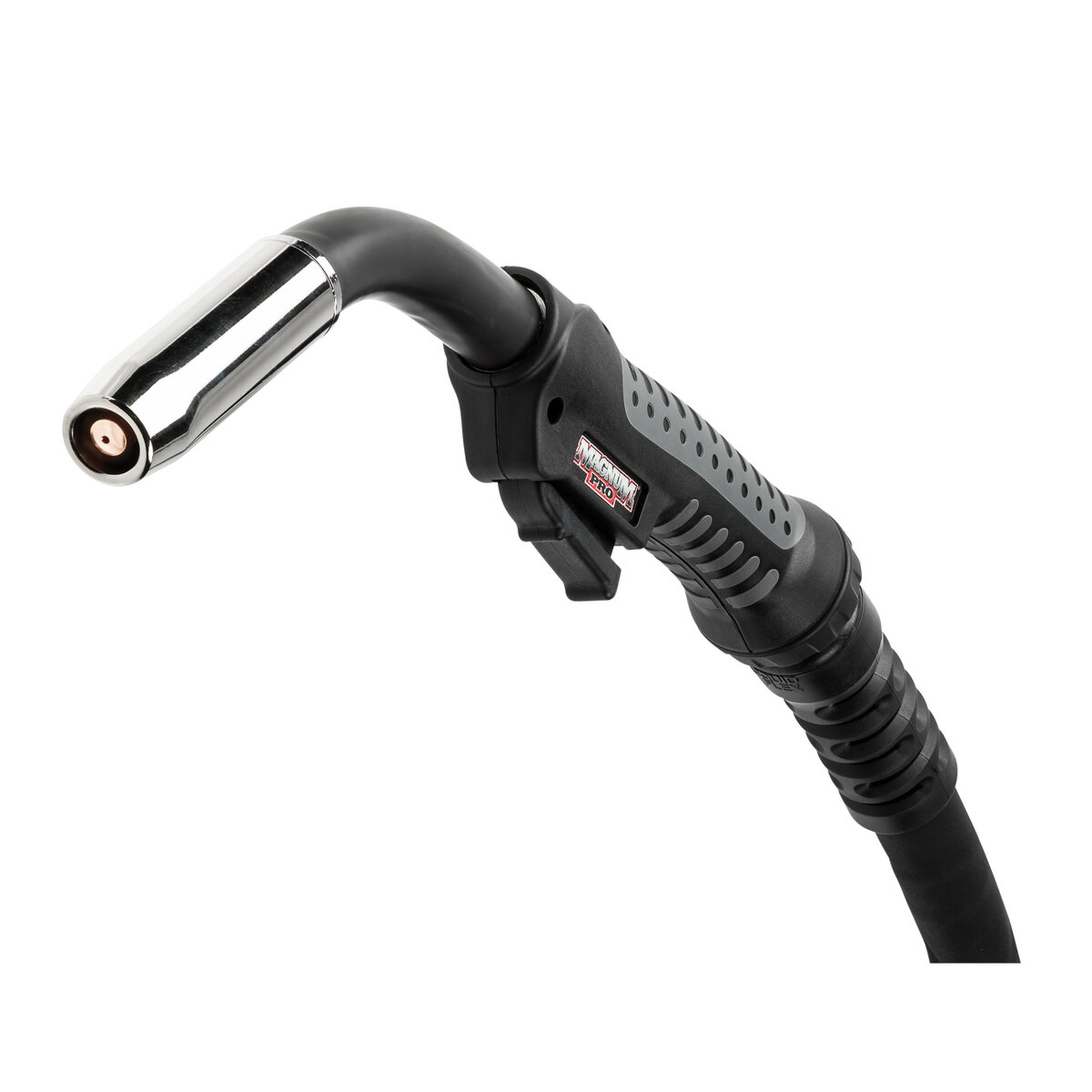

The Lincoln Electric Magnum PRO 500 Water-Cooled MIG Gun (K4522-2-FM-45) is engineered to meet the rigorous demands of heavy industrial fabrication. Designed specifically for high-amperage applications, this 500A welding gun delivers a 100% duty cycle even when utilizing 90/10 mixed shielding gas. Unlike standard air-cooled models that may overheat during prolonged use, the water-cooled architecture of the Magnum PRO 500 ensures consistent thermal management, protecting both the front-end consumables and the internal power cable components from heat degradation.
At the core of this gun's performance is the Magnum PRO Copper Plus contact tip system. These tips are designed with a larger diameter and greater mass than standard industry tips, providing a significant increase in heat dissipation capacity. This thermal efficiency keeps the tip temperature lower, thereby extending the lifespan of the consumable and reducing the frequency of tip changes. The included 45-degree gooseneck is also water-cooled, ensuring that the nozzle remains cool to the touch and spatter adherence is minimized, even during high-deposition processes like HyperFill.
Operator comfort is paramount in high-production environments. The Magnum PRO 500 features a soft rubber over-molded handle that provides a secure, non-slip grip while dampening vibration and reducing hand fatigue. The gun is equipped with a Fast-Mate connector, Lincoln Electric's implementation of the Euro-style connection, allowing for rapid and tool-less attachment to a wide variety of wire feeders. The 15-foot cable assembly offers ample reach for large weldments while maintaining consistent wire feeding performance through the included liner.
This model comes pre-configured with 0.045-inch consumables, including a KP2745-045 contact tip and a KP44-3545-15 liner, making it ready for immediate deployment in structural steel, heavy equipment manufacturing, and shipbuilding applications. The gun is rated for use with MIG, Pulsed MIG, and Flux-Cored processes, offering versatility alongside its robust power handling capabilities. The integration of high-quality insulators and diffusers further ensures stable arc performance and long-term durability in the harshest welding conditions.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:500 |
| Duty Cycle:100% |
| Cooling Method:Water Cooled |
| Cable Length:15 ft |
| Connection Type:Fast-Mate |
| Process Type:MIG, Pulsed MIG, Flux-Cored |
| Wire Diameter Range:0.035 in, 0.045 in |
| Neck Angle:45 Degrees |
| Packaging Description:1 Per Ea |
