K3098-4 - Lincoln Magnum PRO Curve 400 Dual Procedure MIG Gun, 25ft, 400A

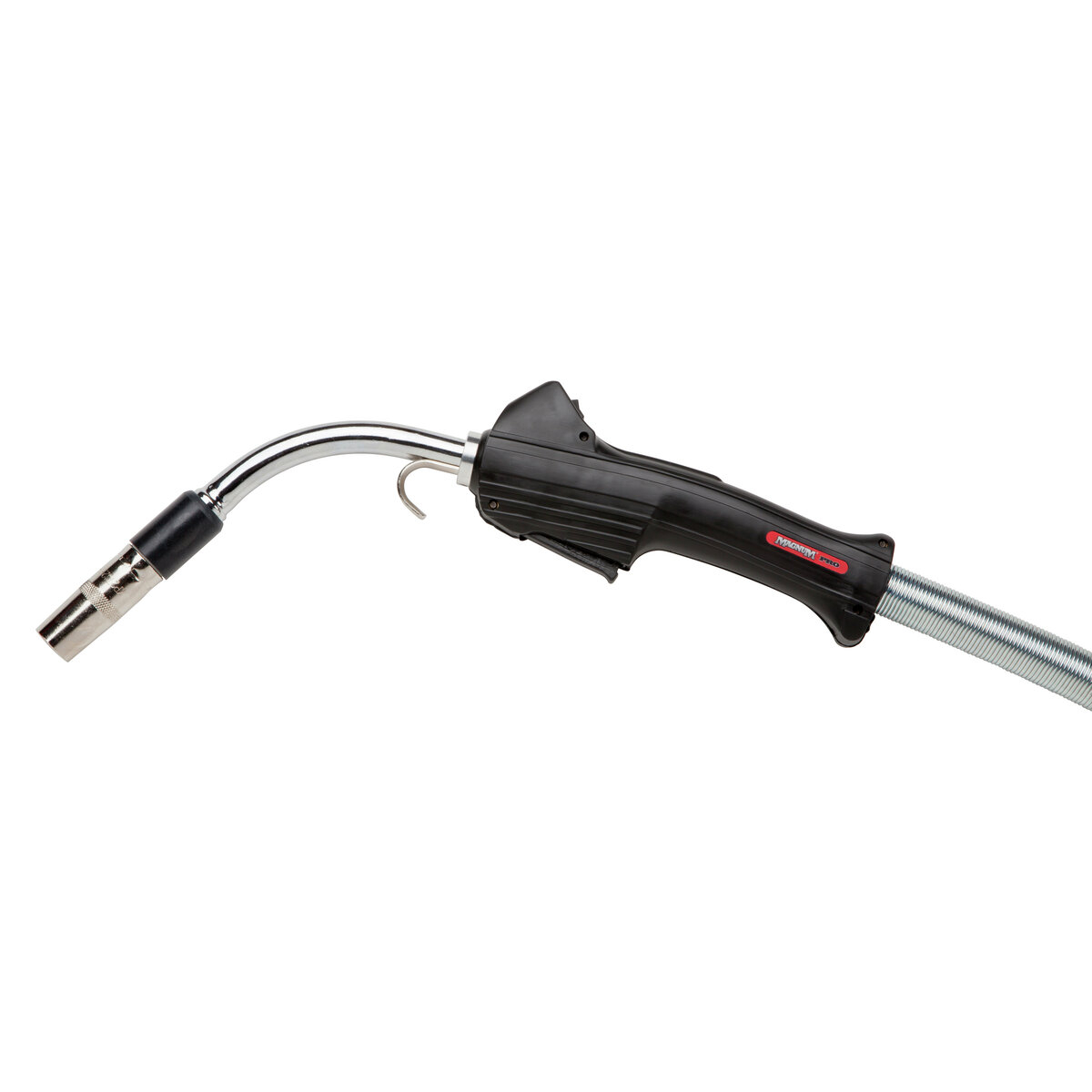

Lincoln Electric Magnum PRO Curve 400 Dual Procedure MIG Gun (K3098-4)

The Lincoln Electric Magnum PRO Curve 400 Dual Procedure Welding Gun is a premium semi-automatic air-cooled torch designed for high-amperage MIG, Pulsed MIG, and Flux-Cored applications. Engineered for industrial fabrication environments, this model (K3098-4) features a 25-foot cable assembly and is rated for 400 Amps at a 60% duty cycle when using CO2 shielding gas. The defining characteristic of this specific model is its Dual Procedure capability, facilitated by four trigger leads. This functionality allows the welding operator to toggle between two distinct welding procedures (such as voltage and wire feed speed settings) directly from the gun trigger, provided the wire feeder supports dual procedure operation. This significantly reduces downtime associated with walking back to the power source to adjust settings for different joint configurations or positions.

At the core of the Magnum PRO series is the focus on consumable longevity and arc performance. The gun utilizes Lincoln's Copper Plus contact tips, which feature a larger diameter and greater mass compared to standard tips. This design improves heat dissipation, keeping the tip cooler and extending its service life, thereby reducing the frequency of tip changes. The expendables also feature a patent-pending Anti-Seize thread design on both the contact tip and the diffuser, ensuring that parts do not fuse together even after long hours of high-heat welding. The single-piece, simplified expendable parts selection streamlines inventory management and maintenance.

Ergonomically, the K3098-4 is built with the operator in mind. It employs the classic Curve handle design, which is lightweight and balanced to provide a comfortable grip that minimizes hand and wrist fatigue during extended welding shifts. The gun tube is rotatable, allowing the welder to adjust the angle of the neck to access tight spaces or achieve the optimal torch angle without contorting their wrist. Additionally, a gun hanger clip is integrated into the design, facilitating safe storage when not in use. The gun accommodates a wide range of wire diameters from 0.025 inches (0.6 mm) up to 5/64 inches (2.0 mm), making it a versatile tool for shop production, maintenance, repair, and construction projects.
