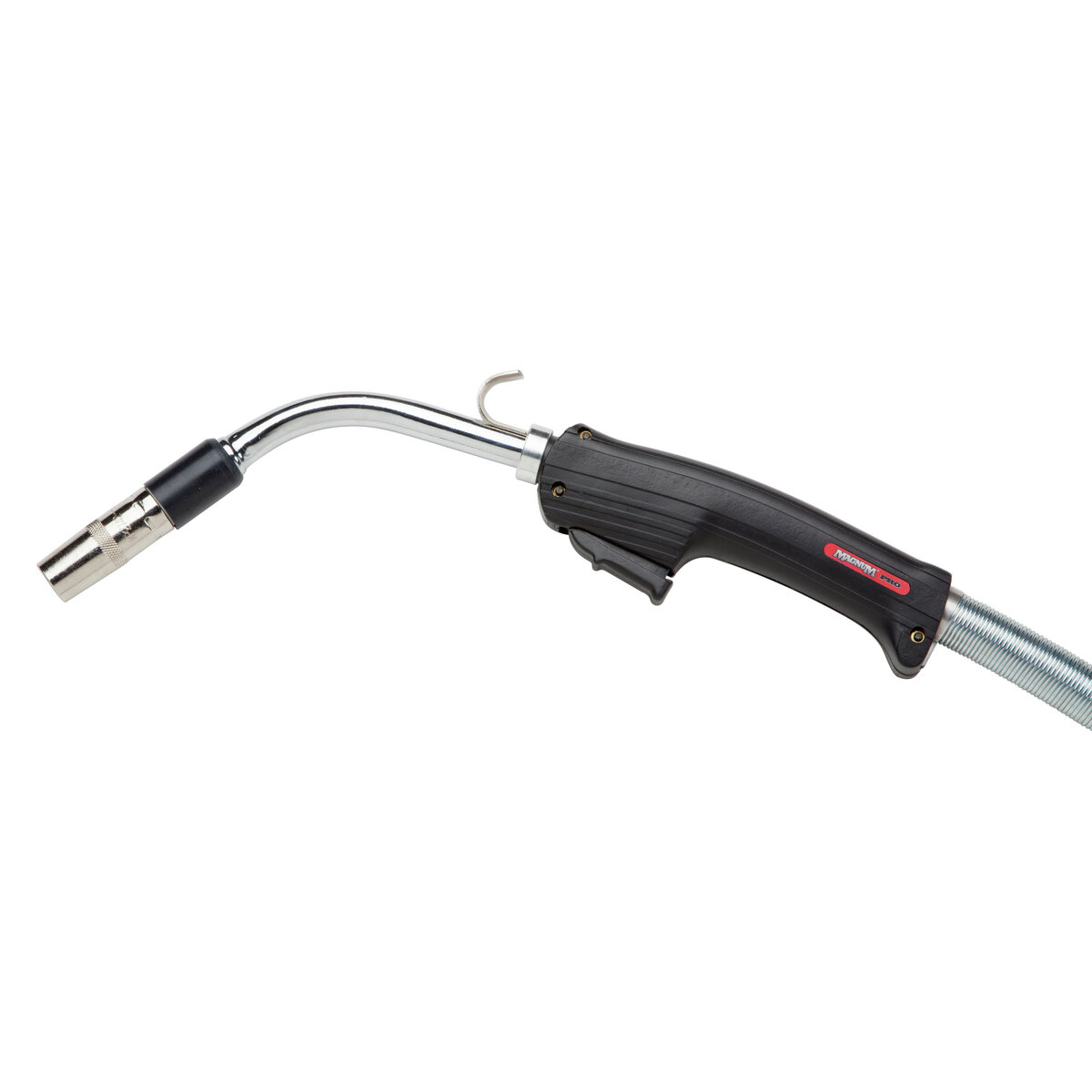

The Lincoln Electric Magnum® PRO Curve™ 400 Dual Schedule Welding Gun (K3093-1) is engineered for heavy-duty fabrication environments where efficiency and reliability are paramount. This air-cooled, semiautomatic MIG gun is rated for 400 amps at 60% duty cycle when using CO2 shielding gas, and 300 amps at 60% duty cycle with mixed gases. It is designed to handle wire diameters ranging from 0.025 inches to 5/64 inches, making it versatile for various structural, maintenance, and production applications.
A defining feature of the K3093-1 is the Dual Schedule toggle capability. Integrated directly into the handle, this switch allows the operator to toggle between two pre-set welding procedures on compatible Lincoln Electric power sources. This functionality eliminates the non-productive time spent walking back to the wire feeder or power source to adjust voltage or wire feed speed, thereby streamlining complex fabrication tasks that require different settings for different weld positions or material thicknesses.
Mechanically, the gun utilizes Lincoln's Magnum® PRO expendables, specifically the Copper Plus® contact tips. These tips feature a larger diameter and greater mass than standard tips, improving heat dissipation and extending tip life. The gun also incorporates a patent-pending Anti-Seize thread design on the tip and diffuser to prevent seizing in high-heat applications. The Curve™ handle is ergonomically designed to balance weight distribution, while the rotating gun tube allows for 360-degree positioning, facilitating access to difficult joints.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:400 |
| Duty Cycle:60% |
| Packaging Description:pack of 1 |
| Torch Type:MIG Gun, Semiautomatic |
| Cooling Method:Air Cooled |
| Cable Length:10 ft |
| Wire Size Range:0.025 in - 5/64 in |
| Process:MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Arc Welding (FCAW) |
| Features:Dual Schedule, Curve Handle, Rotating Gun Tube |
