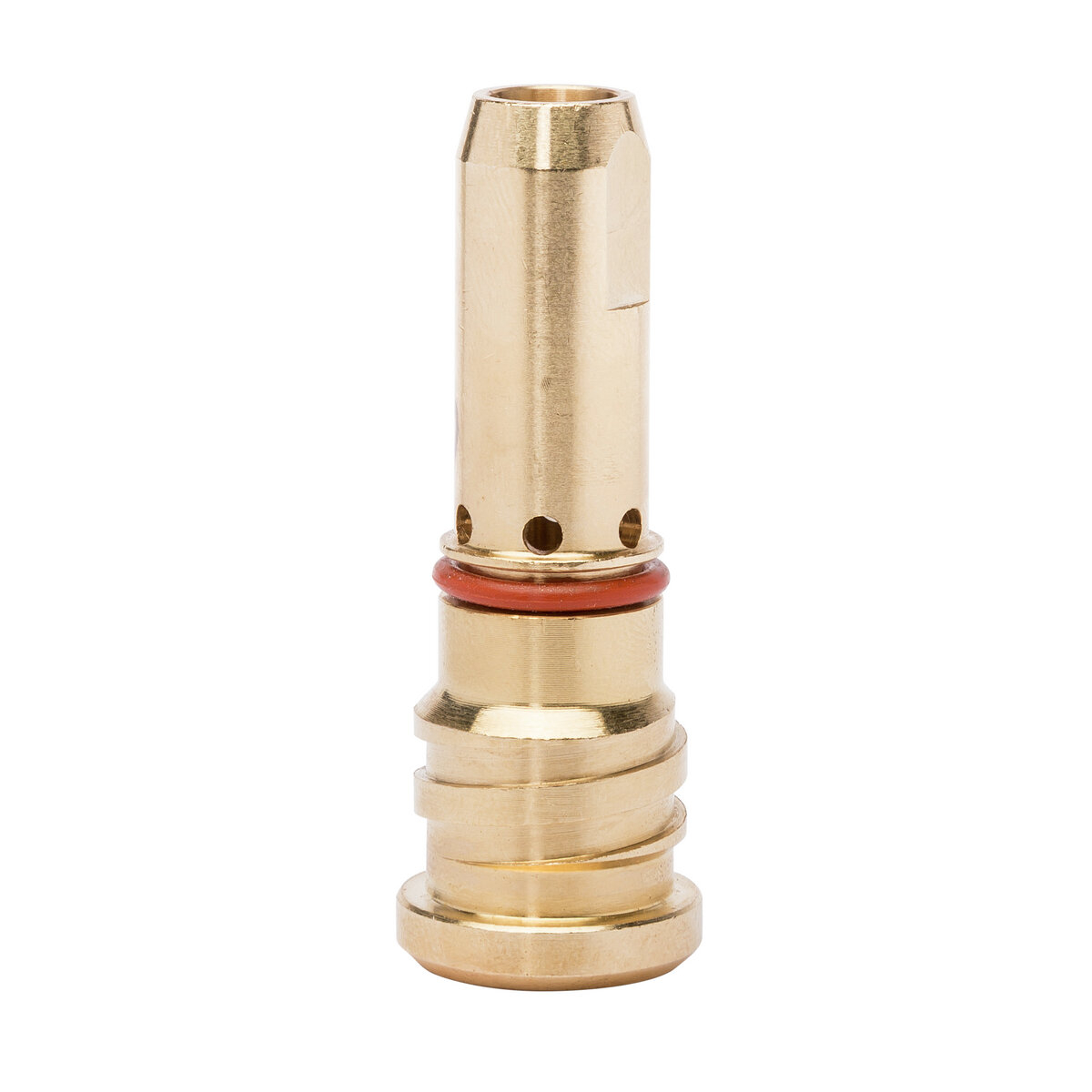

KP2747-1 - Lincoln Magnum PRO 550A Thread-On Gas Diffuser

High-Performance Gas Diffuser for Magnum PRO Systems

The Lincoln Electric KP2747-1 Gas Diffuser is a critical consumable component engineered specifically for the Magnum PRO series of MIG welding guns. Designed to handle high-amperage applications up to 550A, this diffuser plays a pivotal role in the transfer of electrical current to the contact tip and the laminar distribution of shielding gas over the weld pool. By utilizing genuine Lincoln Electric consumables, fabricators ensure that their equipment operates at peak efficiency, maintaining the rigorous standards required for industrial welding environments.

Engineered for Durability and Ease of Use

One of the standout engineering features of the KP2747-1 is its staggered gas hole configuration. In standard diffusers, gas holes are often aligned, creating a weak point in the metal structure that can lead to shearing or breakage when high torque is applied during installation or removal. Lincoln Electric has addressed this common failure point by offsetting the gas ports, thereby maintaining the structural integrity of the component. This design choice significantly extends the service life of the diffuser and prevents costly downtime associated with digging broken threads out of a gooseneck.

Coarse Thread Technology

Thermal cycling in high-amperage welding often causes fine threads to seize, making consumable changeouts difficult and time-consuming. The KP2747-1 utilizes a coarse thread design for the nozzle connection. This robust threading allows for the easy removal of the nozzle even after it has been subjected to the intense heat and spatter accumulation typical of 550A welding procedures. This feature is particularly beneficial in high-volume production environments where minimizing maintenance time is essential for throughput.

Optimized Gas Coverage

Beyond structural durability, this gas diffuser is precision-machined to ensure smooth, turbulent-free gas flow. Proper gas diffusion is essential for preventing porosity and atmospheric contamination in the weld metal. The KP2747-1 ensures that shielding gas is distributed evenly around the contact tip and into the nozzle, providing a stable protective envelope for the arc. Whether using mixed gases or 100% CO2, this diffuser supports consistent arc performance and high-quality weld deposits.

Compatibility and Specifications

This thread-on diffuser is compatible with Lincoln Electric's Magnum PRO 450 and 550 amperage gun models. It is designed to pair seamlessly with 550A thread-on MIG nozzles and standard Magnum PRO contact tips. Using OEM parts like the KP2747-1 guarantees correct fitment, optimal electrical conductivity, and the reliability professionals expect from the Lincoln Electric brand.
