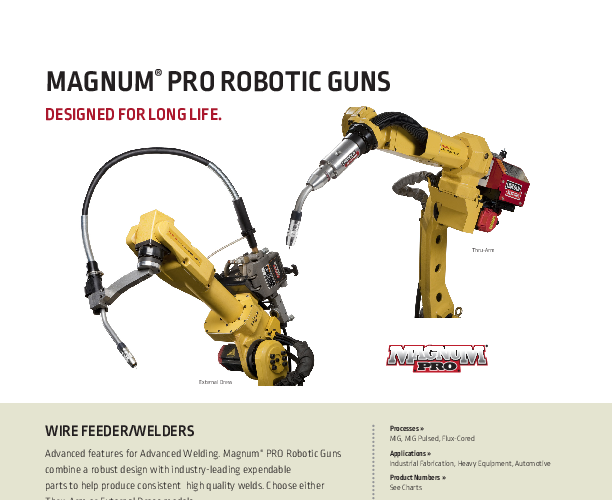

K3359-100ID - Lincoln Magnum PRO Robotic Torch for Fanuc 100iD

Precision Robotic Welding for Fanuc 100iD Systems

The Lincoln Electric Magnum PRO Robotic Air-Cooled Torch (K3359-100ID) is engineered specifically to integrate seamlessly with Fanuc 100iD robotic arms. This through-the-arm torch solution addresses the rigorous demands of high-volume industrial automation, providing a robust interface between the power source and the workpiece. Designed with the maintenance engineer and welding operator in mind, it combines structural durability with advanced electrical efficiency to minimize downtime and maximize throughput in automated cells.

Single Tool Center Point (TCP) Technology

One of the standout technical advantages of this system is the Single Tool Center Point (TCP) capability. In traditional robotic setups, changing from standard duty to heavy-duty consumables often requires time-consuming reprogramming of the robot's path. The K3359-100ID eliminates this bottleneck by maintaining the exact same TCP whether you are equipped with 350A or 550A expendables. This allows for rapid adaptability to different welding procedures without the need to re-teach the robot, significantly enhancing operational flexibility.

Superior Conductivity and Cable Life

Reliability in robotic welding often hinges on the longevity of the cable assembly and the quality of electrical connections. This torch features the patented HexConnect™ Gun Bushing, which utilizes a hexagonal interface to provide full-face electrical contact. Unlike traditional rotating connections that rely on single-line contact—and are prone to micro-arcing and wear—HexConnect ensures stable current transfer and reduced heat buildup. Furthermore, the cable assemblies have been rigorously tested to withstand repetitive torsion and flexing, exceeding industry durability standards by a factor of two.

Optimized for Accessibility

The physical design of the torch and its mounting bracket is tailored to the kinematics of the Fanuc 100iD. The streamlined profile and optimized bracket geometry provide extended reach and improved clearance, allowing the robot to access tight joints and complex part geometries without interference. Combined with the industry-leading performance of Magnum PRO consumables, this torch system delivers consistent, high-quality welds shift after shift.
