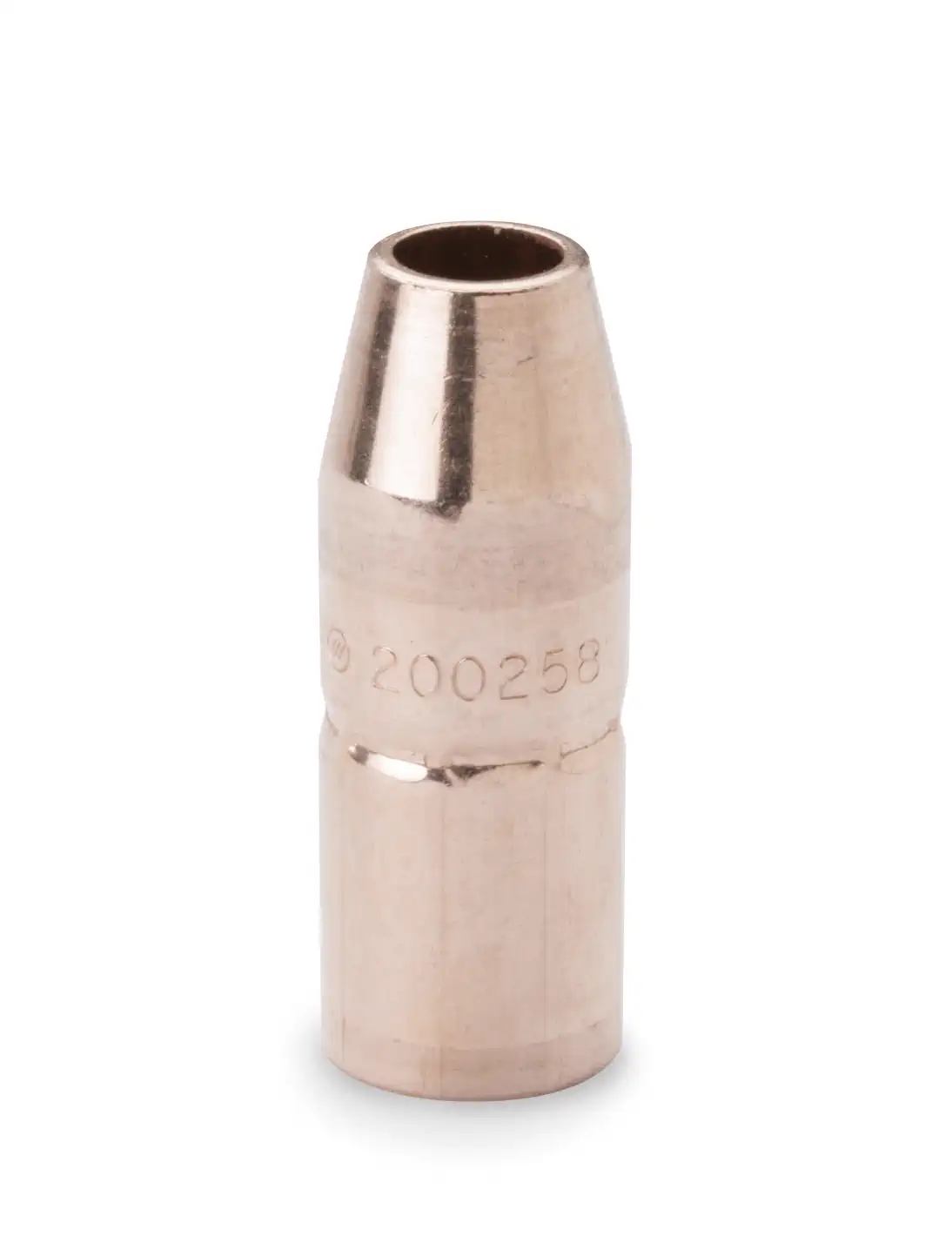

200258 - Miller 200258 M-25 MIG Gun Nozzle 1/2-inch Flush Slip-On

Technical Overview of the Miller 200258 Slip Type Nozzle

The Miller 200258 is a precision-engineered MIG welding nozzle designed to facilitate optimal shielding gas coverage and arc stability in semi-automatic welding processes. This component is a critical consumable for the Miller M-25 and M-40 series MIG guns, which are standard equipment on a wide range of industrial power sources including the Millermatic 200, 210, 212, 250, 251, 252, and 300 series. The nozzle features a 0.500-inch (1/2 inch or 13 mm) orifice diameter, a dimension selected to balance gas velocity with coverage area, making it highly effective for standard short-circuit and globular transfer modes.

One of the defining characteristics of the 200258 model is its flush tip geometry. In this configuration, the contact tip sits flush with the end of the nozzle. This design is distinct from recessed or protruding variations and is often preferred for its ability to minimize electrical stick-out variations while maintaining adequate gas envelope integrity. The flush profile assists in preventing porosity by ensuring the shielding gas column is delivered directly to the weld pool, even when the operator maintains a shorter contact-tip-to-work distance (CTWD). This geometry also aids in reducing the accumulation of spatter bridges that can disrupt gas flow, a common issue in high-amperage applications.

The nozzle utilizes a slip-type connection mechanism rather than a threaded interface. This friction-fit design allows for rapid removal and installation, significantly reducing downtime during maintenance intervals such as contact tip changes or liner inspections. The internal surface is machined to tight tolerances to ensure a secure fit over the gas diffuser (typically part number 169728), preventing gas leakage at the seat which could otherwise compromise the weld atmosphere. Constructed from high-conductivity copper alloy, the nozzle effectively dissipates the intense thermal energy generated by the welding arc, thereby prolonging the service life of the component and the underlying front-end consumables.

In addition to its primary application with Miller equipment, the 200258 nozzle demonstrates cross-compatibility with Hobart H-series guns, providing versatility for mixed-fleet industrial environments. By maintaining the correct nozzle geometry and orifice size, operators can ensure consistent weld quality, reduced spatter adhesion, and reliable performance across various welding parameters and joint configurations.
