195016 - Miller Spoolmate 3035 Aluminum MIG Spool Gun, 150A, 20ft Cable

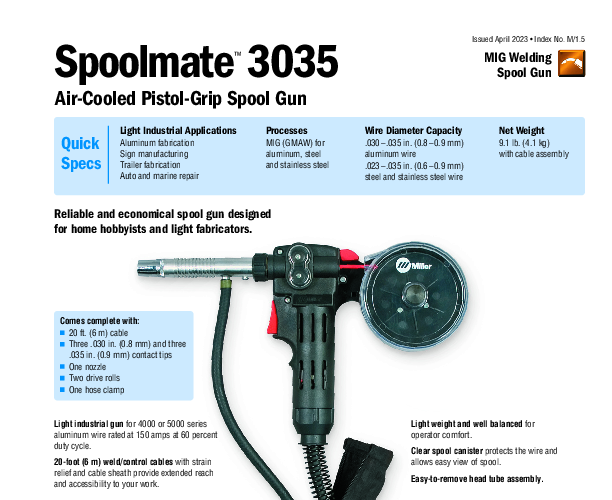

Technical Overview of the Miller Spoolmate 3035

The Miller Spoolmate 3035 (SKU: 195016) is a specialized air-cooled MIG gun designed specifically for the Gas Metal Arc Welding (GMAW) process with aluminum and other soft alloy wires. Engineered for light industrial applications, this unit is rated for a welding output of 150 Amps at a 60% duty cycle, making it suitable for sustained fabrication tasks in automotive, marine, and general repair environments. The gun accommodates 4-inch (1 lb) spools of wire, directly mounting the feed mechanism on the torch to minimize the distance the soft wire must be pushed, thereby eliminating the friction and buckling issues common with standard push-pull systems.

The drive system features dual V-knurled drive rolls that provide positive traction on aluminum wires ranging from .023 to .035 inches (0.6 to 0.9 mm) in diameter. The integrated 20-foot (6-meter) weld and control cable assembly offers significant operational radius, allowing the operator to work on large assemblies without moving the power source. The connection interface is designed for direct compatibility with specific Miller and Hobart power sources, including the Millermatic 185 and Hobart IronMan 210/250 (note: some models may require a diverter switch, SKU 207642).

Maintenance and inspection are facilitated by a clear plastic spool canister, which protects the wire from environmental contaminants while providing immediate visual verification of the remaining wire supply. The barrel assembly is detachable, allowing for straightforward replacement of liners and contact tips. The unit's net weight is approximately 9 lbs (including cable), with the gun itself balanced to reduce wrist strain during overhead or positional welding.
