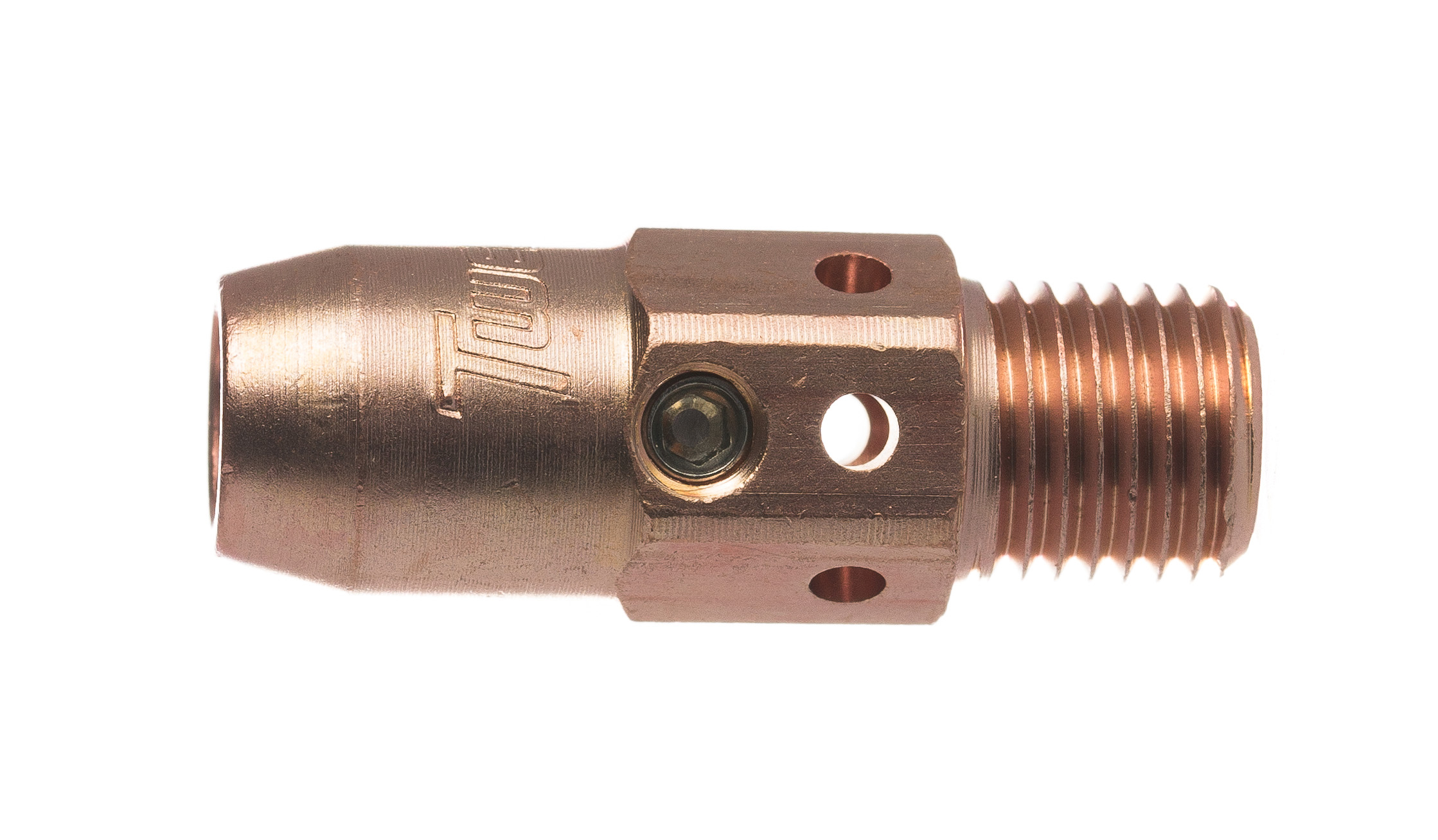

The Tweco 54-16 Gas Diffuser (Stock No. 1540-1127) is a critical component designed for the front-end assembly of Tweco No. 3 and No. 4 MIG guns, as well as compatible 300A to 400A welding torch systems. Manufactured from high-grade brass alloy, this diffuser serves two primary functions: it acts as the mounting point for the contact tip and distributes shielding gas evenly around the weld pool. The brass construction is selected for its balance of thermal durability and electrical conductivity, ensuring efficient current transfer from the conductor tube to the contact tip.
This specific model is engineered to accept standard Tweco 14 Series contact tips, which are widely used in medium to heavy-duty fabrication. It features the necessary geometry to accommodate 24 Series slip-on nozzles, utilizing a friction fit (often with a nozzle insulator) to secure the nozzle in place while allowing for easy removal for cleaning. The 54-16 part number indicates a standard configuration that positions the contact tip correctly relative to the nozzle opening, typically flush or slightly recessed depending on the specific nozzle bore used.
Industrial MRO procurement specialists should note that this SKU represents a package of 5 units. Regular replacement of the gas diffuser is recommended to maintain thread integrity and prevent gas turbulence, which can lead to porosity. The 1540-1127 is the direct OEM specification for genuine Tweco performance, ensuring dimensional accuracy and compatibility with existing Tweco-style consumables.
| Additional Information |
|---|
| Brand:Tweco |
| Item:Gas Diffuser |
| Packaging Description:5 in a pack |
| Compatible Gun Series:Tweco No. 3, Tweco No. 4, Tweco No. 5 |
| Contact Tip Compatibility:14 Series |
| Nozzle Compatibility:24 Series (Slip-On) |
| Material:Brass |
| Amperage Rating:300A, 400A |
| Part Number:54-16 |
