15401136 - Tweco 54-16 Gas Diffuser for Spray Master 450A MIG Guns

Technical Overview of the Tweco 54-16 Gas Diffuser

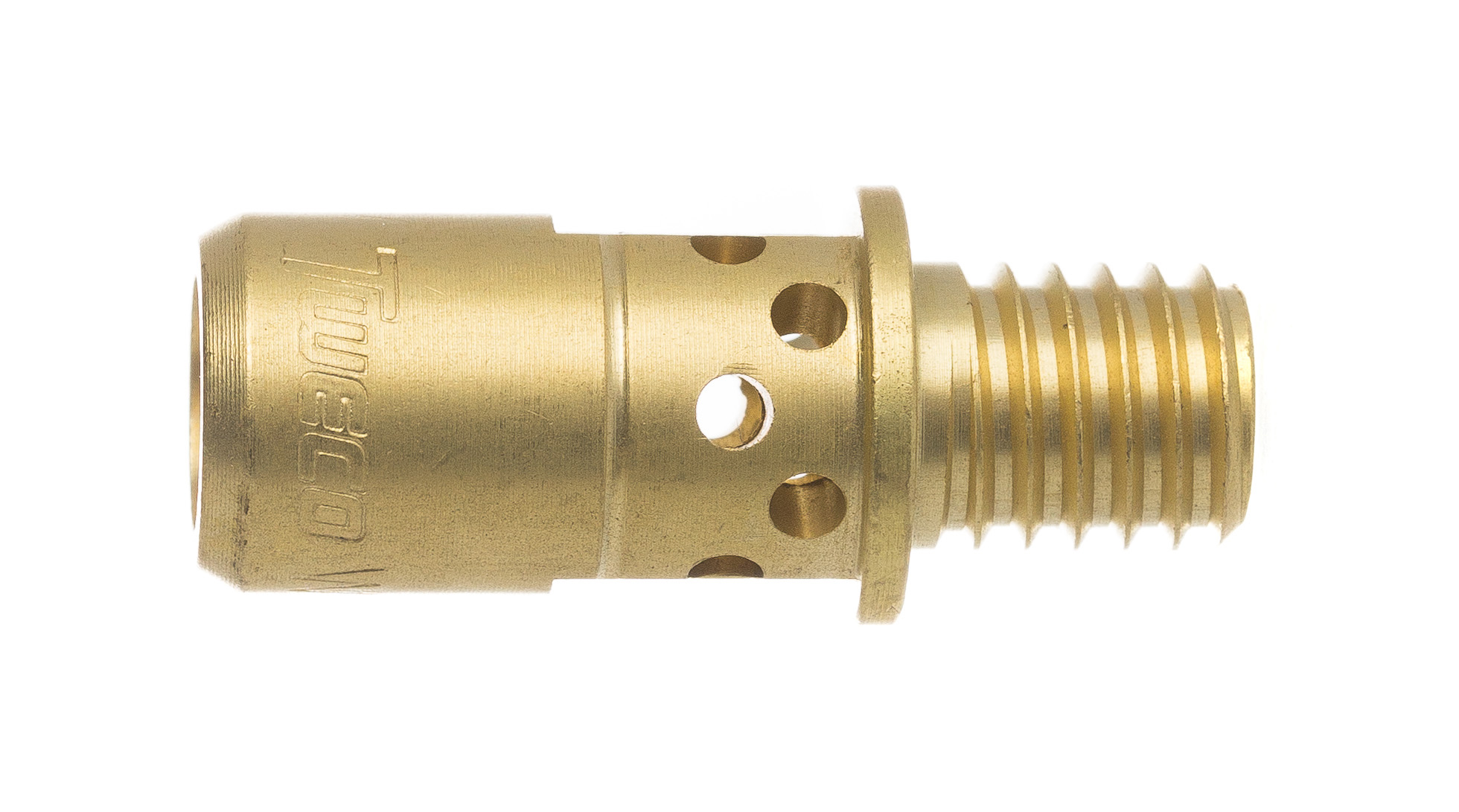

The Tweco 54-16 (Stock Code: 1540-1136) is a high-performance gas diffuser engineered for the Tweco 16 Series, specifically designed to interface with Spray Master™ and Eliminator™ series MIG guns. Rated for medium to heavy-duty industrial applications up to 450 Amps, this component is critical for maintaining electrical continuity and proper shielding gas distribution within the welding arc zone. The diffuser is precision-machined from 360-brass alloy bar stock, a material selected for its excellent thermal and electrical conductivity as well as its resistance to deformation under thermal stress.

Functionally, the 54-16 serves as the mounting point for slip-on nozzle assemblies. It features a specialized metal flat spring located on the outer diameter (OD). This spring provides the necessary tension to permit the nozzle to slide over the diffuser while holding it firmly in place during the welding process, preventing slippage caused by thermal expansion or vibration. Additionally, a silicon O-ring is seated at the base of the diffuser to create a hermetic seal against the nozzle assembly, mitigating the risk of atmospheric contamination and ensuring laminar gas flow.

The unit connects to the conductor tube via a standard 9/16"-18 UNC-2A thread. Gas distribution is managed through six radially arranged 0.094" gas holes, optimized to reduce turbulence and provide uniform coverage over the weld pool. The component also includes a conduit set screw mechanism to secure the conduit liner in position, ensuring reliable wire feeding. Identification is simplified with the part number roll-stamped directly onto the external surface.
