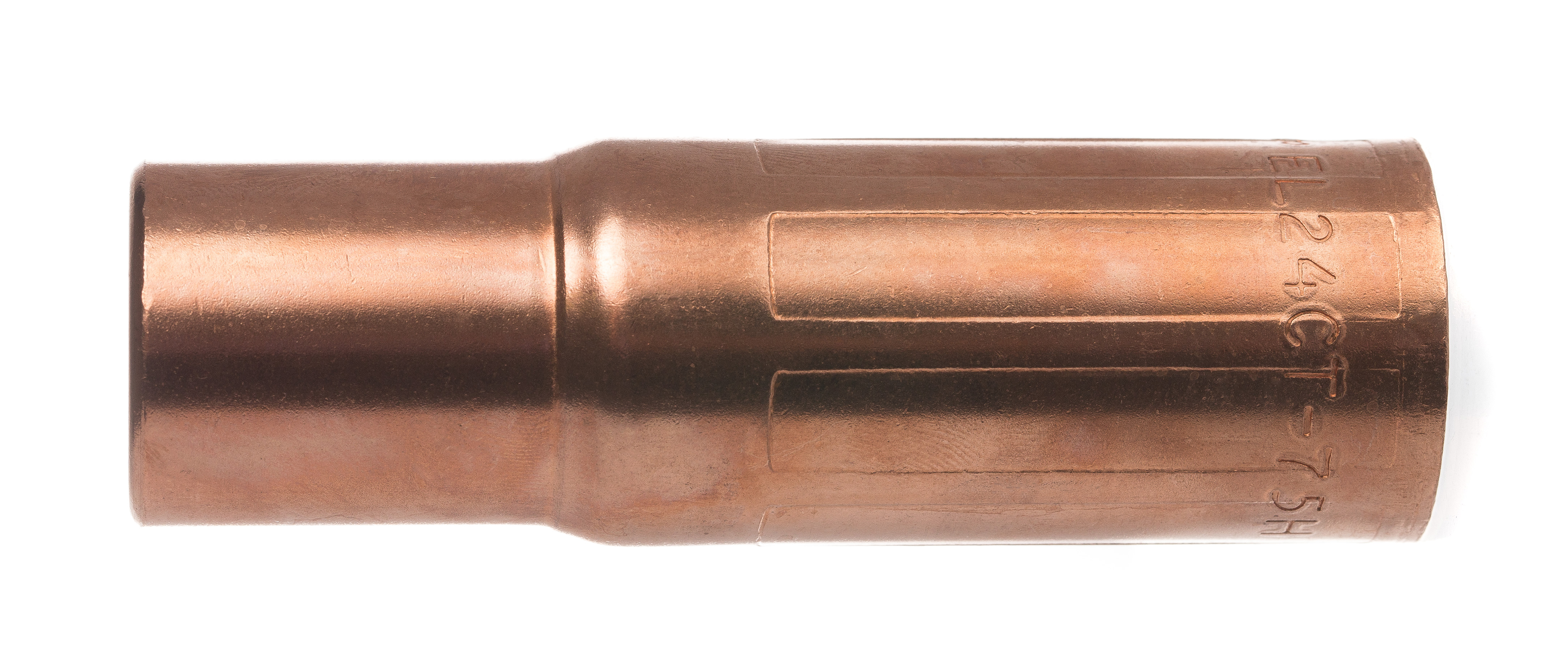

12601613 - Tweco EL22I-62F Eliminator MIG Nozzle | 5/8" Bore | Flush Tip | 2-Pack

Technical Overview of the Tweco EL22I-62F Eliminator Nozzle

The Tweco EL22I-62F (SKU: 1260-1613) is a premium gas nozzle engineered specifically for the Tweco Eliminator series of MIG guns. This component represents a significant evolution in front-end consumable design, integrating the electrical insulation directly into the nozzle body. By utilizing a self-insulated architecture (denoted by the 'I' in the part number), Tweco eliminates the need for a separate, fragile fiberglass insulator, thereby reducing the number of consumable parts required in inventory and simplifying the maintenance assembly process.

The nozzle features a 5/8-inch (15.9mm) bore, which is the industry standard for general-purpose fabrication, offering a balanced shield gas envelope that protects the weld pool without excessive gas consumption. The '62F' designation indicates a Flush tip relationship; when fully seated against the gas diffuser, the nozzle exit aligns perfectly flush with the end of the contact tip. This configuration is critical for applications requiring a specific electrical stick-out (ESO) and provides the operator with a clear line of sight to the arc, facilitating precise puddle manipulation.

Constructed from a high-conductivity copper alloy, the EL22I-62F is designed to efficiently wick heat away from the front end, prolonging the life of both the nozzle and the contact tip. The connection mechanism utilizes the Eliminator series' signature coarse thread, which resists seizing and allows for quick removal—often with just a quarter or half turn—making spatter removal and tip changes significantly faster than with traditional fine-thread designs.
