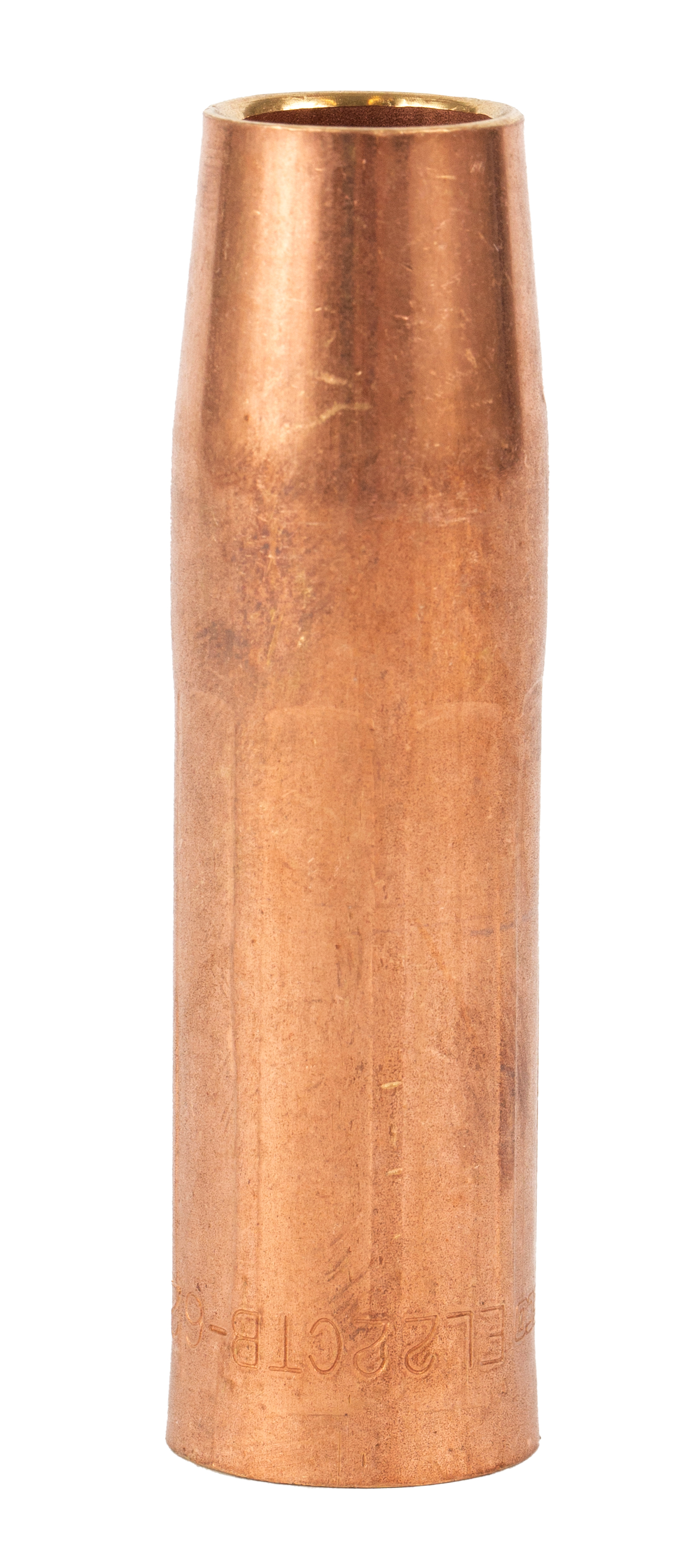

12601631 - Tweco EL24I-62H Eliminator MIG Nozzle 5/8 Bore Heavy Duty (2-Pack)

Technical Overview of the Tweco EL24I-62H Eliminator Nozzle

The Tweco EL24I-62H (Stock Number 1260-1631) is a premium heavy-duty MIG gun nozzle designed exclusively for the Tweco Eliminator series front-end consumables. This package contains two (2) nozzles, ensuring operators have immediate replacements available for high-production environments. The "EL" designation identifies its compatibility with the Eliminator line, known for its ergonomic design and efficient heat dissipation capabilities. This specific model features a 5/8-inch (0.625") bore, which is the industry standard for general fabrication and structural welding using wire diameters ranging from 0.035" to 1/16".

Engineered with a "Heavy Duty" classification, the EL24I-62H utilizes a substantial copper alloy wall thickness to absorb and dissipate the intense radiant heat generated during high-amperage welding (typically 300A to 550A). The "I" in the part number signifies its self-insulated nature; the electrical insulation is integrated directly into the nozzle body, removing the requirement for a separate, fragile insulator part. This design choice streamlines the front-end assembly, reducing the likelihood of assembly errors and downtime.

A critical feature of this nozzle is the 1/8-inch contact tip recess. By positioning the contact tip slightly inside the nozzle, the design promotes a more focused gas column, which is essential for maintaining shield integrity in drafty shop environments or when using longer electrode stick-outs. This recess also helps protect the contact tip from immediate spatter adhesion and radiant heat damage, thereby extending the lifespan of the consumable stack. The nozzle attaches securely to the gas diffuser, ensuring concentricity for consistent wire feeding and arc stability.

Professionals in industrial manufacturing, heavy equipment repair, and structural steel fabrication rely on the Eliminator series for its durability. The EL24I-62H is optimized for use with standard Eliminator gas diffusers and contact tips, providing a leak-proof gas seal and reliable electrical isolation from the workpiece.
