11101244 - Tweco WeldSkill 11 Series Contact Tip 0.045 (25 Pack)

Technical Overview of Tweco WeldSkill WS11H45

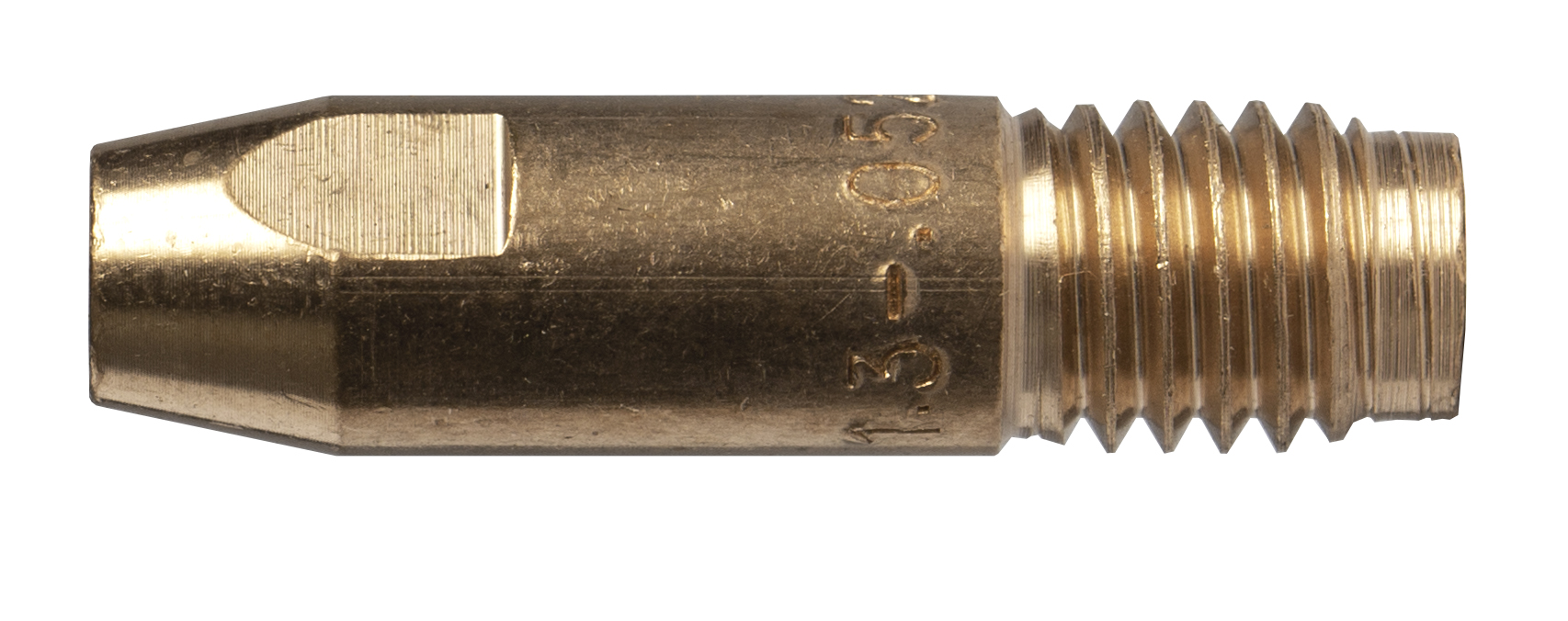

The Tweco WeldSkill WS11H45 Contact Tip is a precision-engineered consumable component designed to facilitate the transfer of welding current to the electrode wire in Gas Metal Arc Welding (GMAW) processes. This specific model is machined with a bore diameter optimized for 0.045-inch (1.2mm) welding wires, ensuring a tight tolerance that promotes consistent electrical contact while allowing for smooth wire feeding. The maintenance of this electrical interface is critical for arc stability and the prevention of micro-arcing within the tip, which can lead to premature wear and burn-back issues.

Part of the renowned Tweco 11 Series, the WS11H45 utilizes a standard threaded design that interfaces directly with compatible gas diffusers found in Tweco WeldSkill MIG guns and other 11-Series compatible torches. The body is constructed from a high-quality copper alloy, selected for its superior thermal and electrical conductivity properties. This material choice ensures that the tip remains cool under standard duty cycles, thereby extending its service life and maintaining the structural integrity of the bore over time.

This product is supplied in a package of 25 units, catering to industrial maintenance and repair operations (MRO) where consumable turnover is a regular factor of production. By adhering to strict manufacturing standards, Tweco ensures that each tip in the pack offers uniform performance, reducing the variability in weld quality that can arise from inferior consumables. The WS11H45 is an essential component for operators utilizing 0.045" wire in light to medium fabrication environments.
