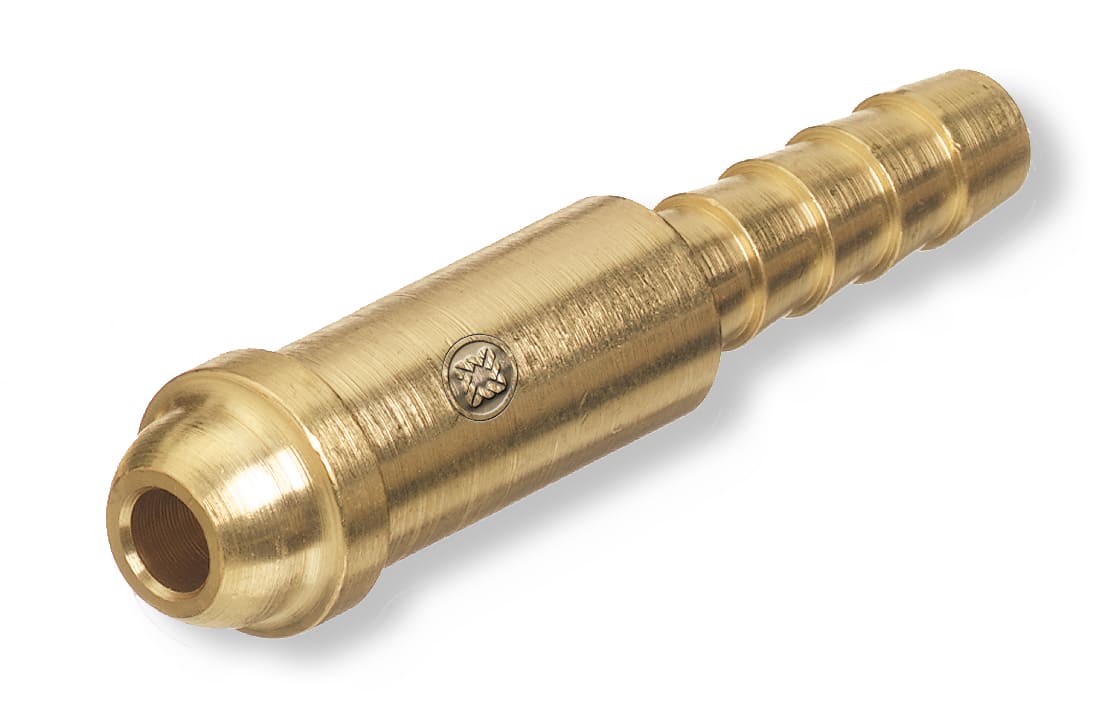

WESAW-20 - Hose Bard Nipple 5/16 For Inert Gas And Water B Size
Packaging: 1 per each
$10.18/ea
OVERVIEW
| Additional Information |
|---|
| Packaging Description:1 per each |
| ----- new values below ---- |
| Material:Brass |
| Thread Size:5/8"-18 UNF (B-Size) |
| Hose Connection ID:5/16" |
| Pressure Rating:200 PSIG |
| Length:2.218 in |
| CGA Compatibility:CGA 032, CGA 033 |
| brand:Western Enterprises |
| used-for:Inert Gas, Coolant, Industrial Air |
| item:Hose Nipple |
INCLUDED
- 1 x Brass Inert Arc Nipple (5/16" Hose Barb)
APPLICATIONS
- Repairing cut or damaged shielding gas hoses
- Fabricating custom-length gas lines for MIG/TIG welding
- Connecting water cooler lines for liquid-cooled torches
- Industrial air line maintenance
- Laboratory gas distribution systems
FAQ
This nipple features a standard B-Size 5/8"-18 UNF thread.
It is designed to fit hoses with a 5/16" Inner Diameter (I.D.).
No, this product is the nipple only. The compatible nut must be purchased separately.
The maximum rated pressure for this fitting is 200 PSIG.
Yes, it is rated for use with water, as well as inert gases and industrial air.
It is machined from solid brass.
The manufacturer specifies this for Inert Gases, Water, and Industrial Air. It is not explicitly listed for oxygen service.
You should use a crimp ferrule or a hose clamp designed for 5/16" hose to secure the connection.
