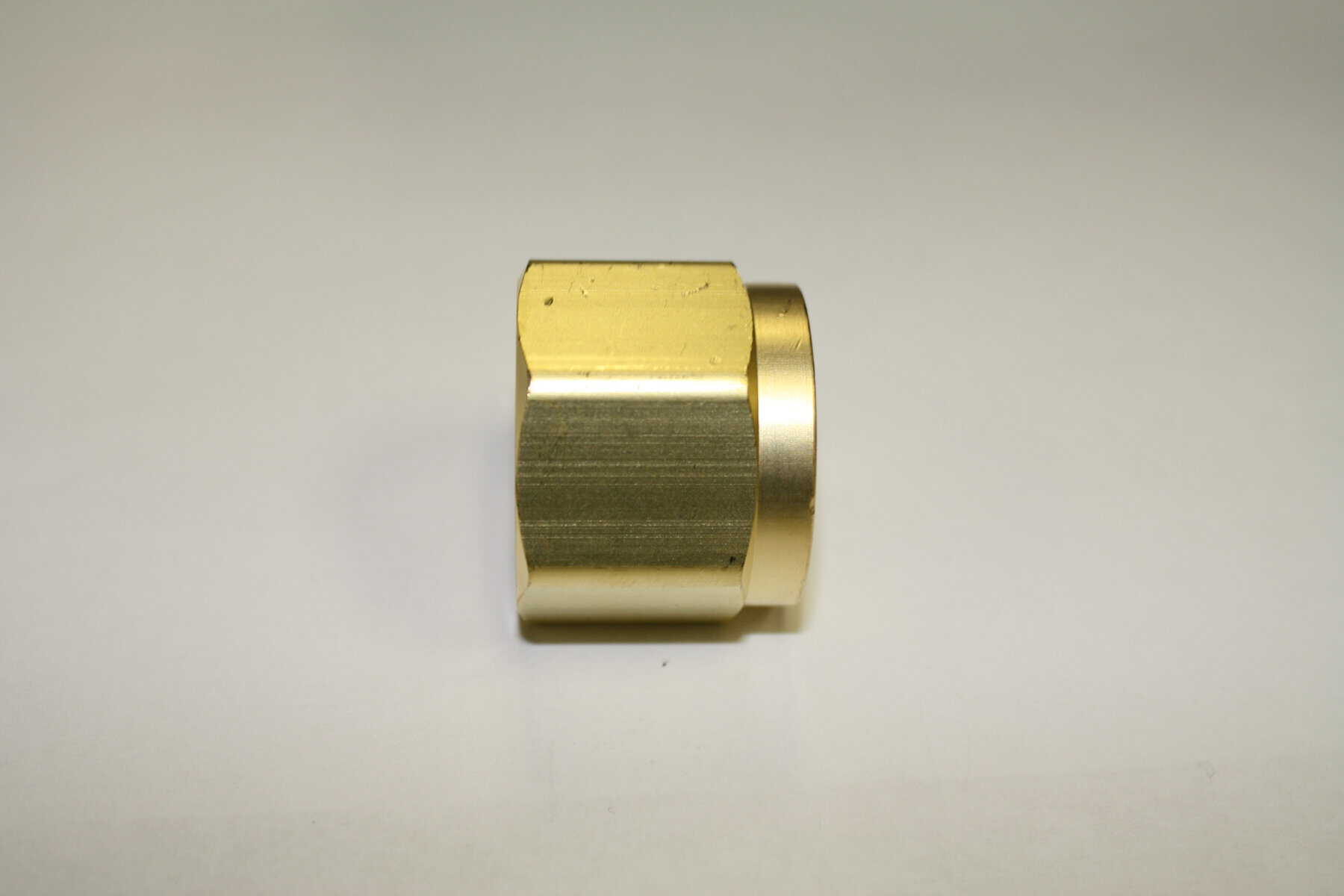

WES62 - Inlet Nut For CGA540 Oxygen
Packaging: 1 per each
$7.52/ea
OVERVIEW
| Additional Information |
|---|
| Packaging Description:1 per each |
| ----- new values below ---- |
| Gas Service:Oxygen |
| CGA Connection:540 |
| Material:Brass |
| Thread Size:.908"-14 NGO |
| Thread Direction:Right Hand (RH) |
| Pressure Rating:3000 PSIG |
| Hex Size:1-1/8" |
| brand:Western Enterprises |
| packaging-description:1 per each |
| item:Accessory |
INCLUDED
- 1 x CGA-540 Inlet Nut (Oxygen)
APPLICATIONS
- Oxygen Regulator Inlet Connections
- Gas Manifold Systems
- Cylinder Pigtails
- Gas Distribution Panels
- Oxy-Fuel Cutting and Welding Equipment
FAQ
The WES-62 is designed specifically for Oxygen service, utilizing the CGA-540 standard connection.
The thread specification is .908"-14 NGO, Right-Hand Female.
This nut is rated for a maximum working pressure of 3000 PSIG.
No, this product is the inlet nut only. The nipple must be purchased separately.
The nut features a 1-1/8" hex, requiring a 1-1/8" wrench for proper tightening.
No, Argon and Nitrogen typically use CGA-580 connections. This nut is specific to CGA-540 (Oxygen) and will not fit.
It is compatible with any oxygen regulator that uses a standard CGA-540 inlet connection.
The nut is machined from high-quality brass.
