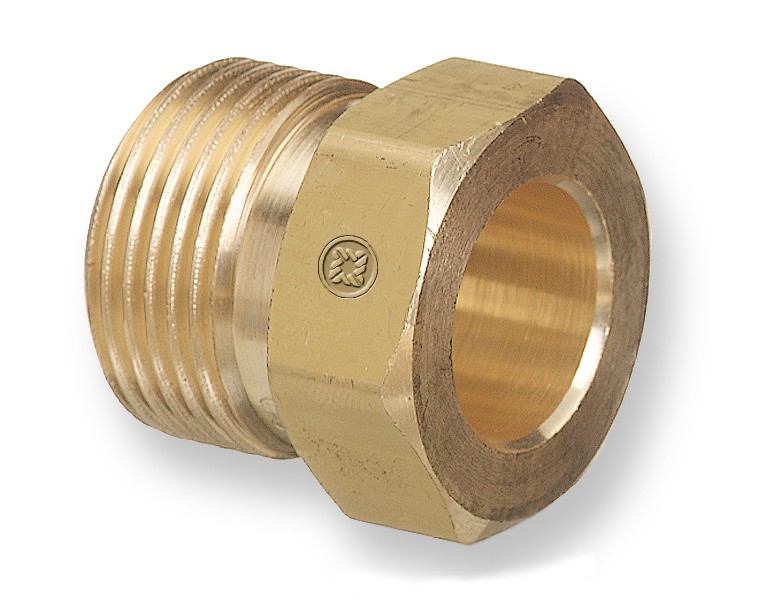

WES680-2 - Inlet Nut For CGA680
Packaging: 1 per each
$31.92/ea $26.74/1 per each only $26.74/eaSave 16%
OVERVIEW
| Additional Information |
|---|
| Packaging Description:1 per each |
| ----- new values below ---- |
| Thread Size:1.040"-14 NGO |
| Thread Type:RH Male |
| Hex Size:1-1/8" |
| Weight:0.177 lbs |
| Length:1.145 in |
| Brand:Western Enterprises |
| Gas Service:Inert Gases |
| Material:Brass |
| CGA Connection:CGA-680 |
| Pressure Rating:3000-5500 PSIG |
INCLUDED
- 1 x CGA-680 Inlet Nut (Brass)
APPLICATIONS
- High-pressure inert gas cylinder connections
- Welding regulator repair and assembly
- Industrial gas manifold systems
- Laboratory gas distribution
- Laser cutting assist gas supply
FAQ
This nut is designed for CGA-680 connections.
CGA-680 is typically used for inert gases like Argon, Nitrogen, and Helium at high pressures (3000-5500 PSIG).
It is rated for pressures between 3000 and 5500 PSIG.
No, this product is the inlet nut only. The nipple must be purchased separately.
The thread is 1.040"-14 NGO, Right-Hand (RH) Male.
It is machined from brass.
The nut features a 1-1/8" RC Hex.
This product contains lead and carries a Prop 65 warning for California residents.
