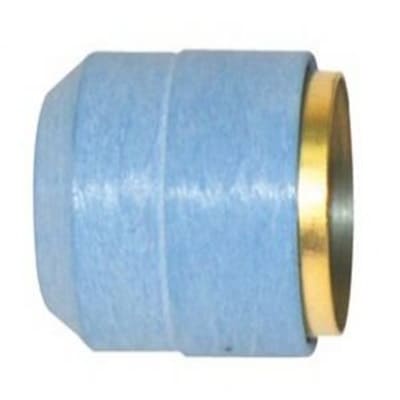

The ESAB Retaining/Shield Cup (SKU: 0558007549) is a critical component designed for the PT-38 plasma cutting torch, widely used in ESAB PowerCut series systems. This consumable serves a dual purpose in the plasma cutting process: it mechanically retains the inner consumables (such as the nozzle and electrode) in proper alignment while also directing the flow of shielding gas around the arc. The precise engineering of this cup ensures that the gas envelope is maintained correctly, which is essential for cooling the nozzle and constricting the plasma arc for high-density energy transfer.
Manufactured in the United States, this shield cup is rated for operation across multiple amperage settings, specifically 40 Amps, 70 Amps, and 90 Amps. This versatility allows operators to use a single retaining solution for various material thicknesses and cutting speeds without the need for constant hardware changes, provided the internal nozzle is matched to the amperage. The physical dimensions of the cup (1.35 x 1.75 x 1.4 inches) are machined to tight tolerances to ensure a secure thread engagement with the torch head, preventing gas leaks that could lead to arc instability or torch damage.
In industrial environments, the shield cup acts as the first line of defense against molten metal spatter (dross) and reflected heat. By using genuine ESAB OEM parts, facilities ensure that the thermal resistance properties of the material meet the manufacturer's specifications. Inferior third-party cups may degrade rapidly under the intense heat of 90A cutting, leading to deformation or dielectric breakdown. This component is integral to the 'blowback' start mechanism and the overall fluid dynamics of the PT-38 torch, ensuring reliable ignition and sustained cutting performance.
| Additional Information |
|---|
| Brand:ESAB |
| Item:Shield Cap |
| Packaging Description:pack of 1 |
| Torch Model:PT-38 |
| Amperage Range:40A, 70A, 90A |
| Consumable Type:Retaining/Shield Cup |
| Country Of Origin:United States |
