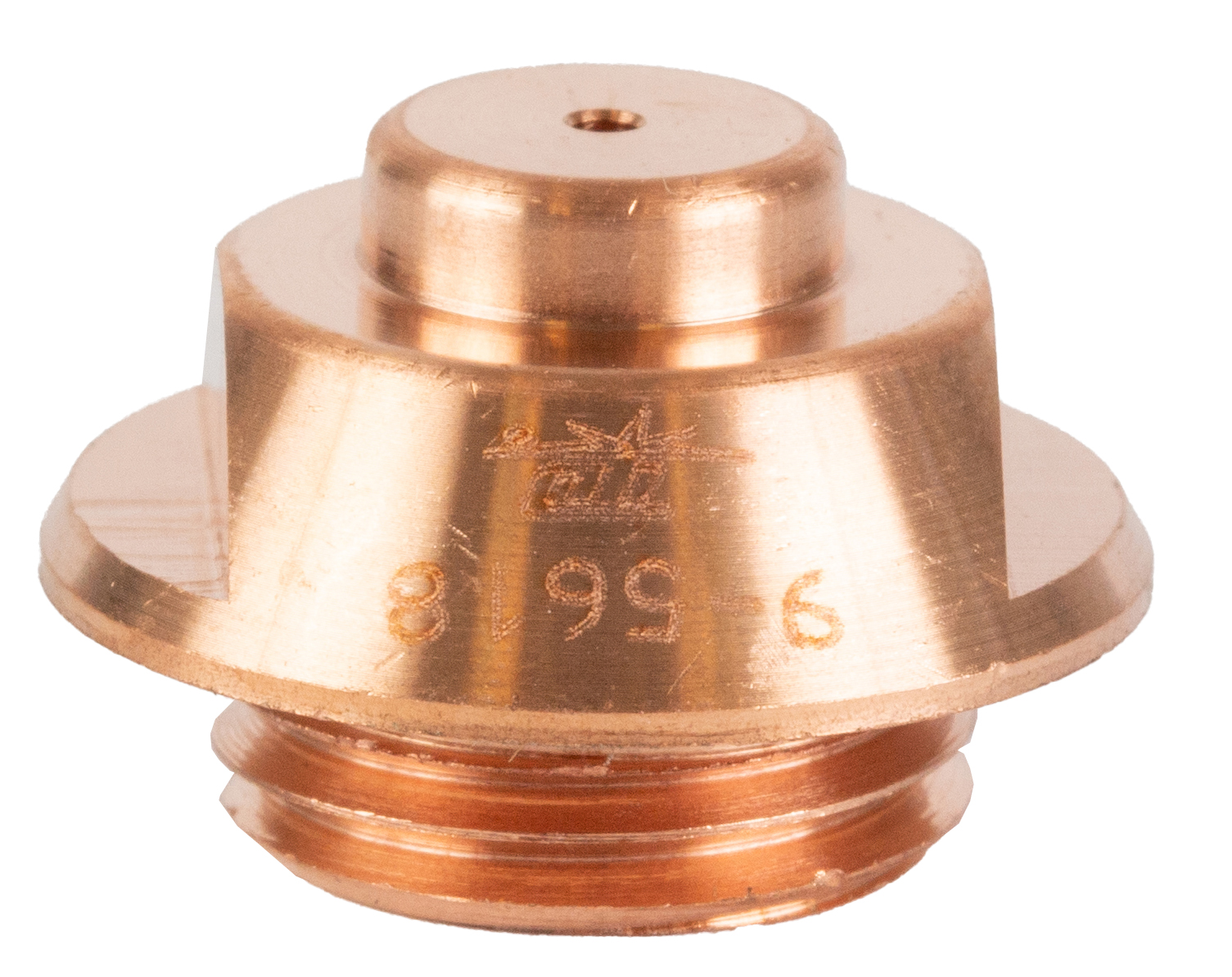

9-5766 - Thermal Dynamics 9-5766 Nitrogen Plasma Tip .052 Orifice

Technical Overview of the Thermal Dynamics 9-5766

The Thermal Dynamics 9-5766 is a specialized plasma cutting tip designed for industrial applications utilizing Nitrogen (N2) as the plasma gas. Featuring a precise 0.052-inch orifice, this consumable is engineered to constrict the plasma arc effectively, delivering high-energy density for cutting operations. It is a genuine OEM replacement part, ensuring strict adherence to the manufacturing tolerances required for optimal torch performance.

This tip is compatible with a range of legacy and current Thermal Dynamics torch platforms, specifically the PCH/M-51, PCH/M-52, PCH/M-60, PCH/M-62, and PCH/M-4B series. The use of Nitrogen gas with this specific orifice size is typically recommended for cutting stainless steel and aluminum, where oxidation from compressed air needs to be minimized to achieve a cleaner cut edge. The 9-5766 facilitates a stable arc and efficient gas flow, critical for maintaining cut speed and quality in automated or manual environments.

Constructed from high-quality tellurium copper or similar conductive alloys, the tip is designed to withstand the intense thermal loads generated during the plasma process. Proper maintenance and timely replacement of the tip are essential for preventing damage to the electrode and torch head. Industrial MRO procurement specialists should verify torch model compatibility and gas supply setup (Nitrogen) before ordering to ensure this specific 0.052" orifice tip meets the operational requirements.
