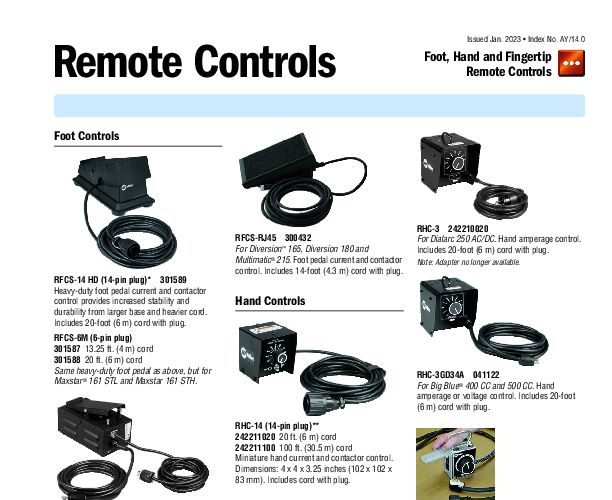

301588 - Miller Heavy-Duty Wired Foot Control with 6-Pin Plug

Robust Remote Control for Precision Welding

The Miller Wired Foot Control (SKU: 301588) is a heavy-duty remote interface designed specifically for the Maxstar 161 STL and Maxstar 161 STH welding power sources. This device serves as a critical interface for TIG welding operations, providing the operator with hands-free control over both the contactor (arc initiation) and the welding current (amperage adjustment). The unit is engineered to withstand the rigors of industrial environments, featuring a robust chassis and high-quality internal components that ensure consistent signal transmission to the power source.

One of the primary technical enhancements of this model is its physical design. The foot control utilizes a significantly larger base than standard models, which lowers the center of gravity and increases surface area contact with the floor. This design choice minimizes unintentional movement or tipping during operation, which is crucial for maintaining steady arc control. The pedal mechanism is calibrated to provide smooth, linear resistance, allowing for micro-adjustments in amperage that are essential for critical heat input management in thin-gauge materials or complex joint geometries.

Connectivity is established via a 20-foot (6 meter) heavy-duty cord terminating in a 6-pin plug. The 6-pin configuration is specific to the control circuitry of the Maxstar 161 series, ensuring proper pinout alignment for signal reference and ground. The cord itself is reinforced to resist abrasion, cuts, and impact damage common in metalworking shops. By utilizing a wired connection, this control eliminates potential radio frequency interference (RFI) issues sometimes associated with wireless remotes in electrically noisy environments, ensuring 100% reliable communication with the welding machine.

Integration of this foot control into a welding system allows for dynamic heat control, enabling the operator to crater-out properly at the end of a weld or adjust for heat buildup during long passes. It is an essential component for achieving code-quality welds in GTAW (Gas Tungsten Arc Welding) applications where fixed amperage settings are insufficient.
