WP-9F - Weldcraft A-125 Flex (WP-9F) Air-Cooled TIG Torch Body

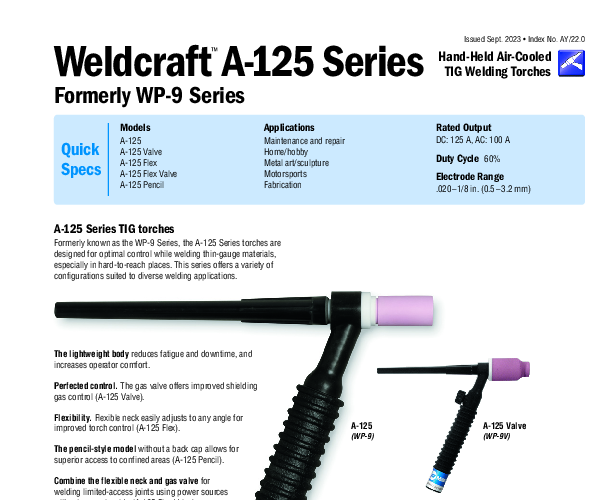

Technical Overview of the Weldcraft A-125 Flex (WP-9F)

The Weldcraft A-125 Flex, historically known as the WP-9F, represents a standard in lightweight, air-cooled TIG welding torch bodies. Designed for light-duty fabrication and maintenance applications, this torch body is rated for 125 amps DC and 100 amps AC at a 60% duty cycle. The defining technical feature of this model is the flexible neck assembly, which allows the operator to mechanically adjust the angle of the torch head relative to the handle. This articulation is critical for maintaining proper electrode angles in complex pipe welding or restricted-access corner joints where rigid torches cannot effectively operate.

The WP-9F utilizes the standard 9-series consumable platform, which is cross-compatible with the water-cooled WP-20 and WP-25 series. This interchangeability simplifies inventory management for industrial MRO departments, as collets, collet bodies, and gas lenses (13N series) can be shared across different torch setups. The body is constructed from high-temperature silicone rubber, providing excellent dielectric strength to prevent high-frequency (HF) leakage during arc initiation, ensuring operator safety and equipment longevity.

As an air-cooled unit, the A-125 Flex relies on the shielding gas flow and ambient air for thermal dissipation. It connects via a standard 3/8"-24 RH rear thread to compatible one-piece power cables. The compact form factor makes it an ideal choice for intricate aerospace work, motorsports fabrication, and precision tool and die repair where maneuverability takes precedence over high-amperage capacity.
