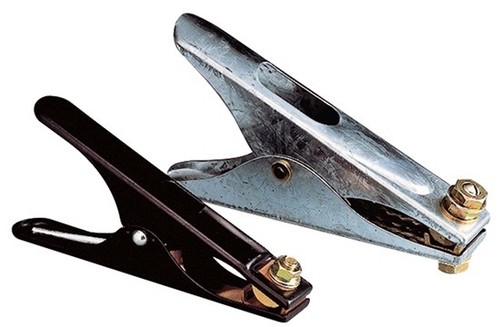

The ESAB Nevada 200 Earth Clamp (SKU: 0367558880) is a standard-duty grounding device designed for manual welding applications requiring up to 200 amperes. Proper grounding is a critical variable in the welding circuit; insufficient contact can lead to resistance heating, voltage drops, and unstable arcs. The Nevada 200 addresses these issues with a design focused on conductivity and mechanical stability.
Constructed with durability in mind, this clamp features a strong spring mechanism that delivers consistent clamping force. This pressure is essential for penetrating minor surface oxidation or scale on the workpiece, ensuring a low-resistance electrical path. The jaws are designed to accommodate a variety of material thicknesses and shapes, from flat plates to pipes and structural angles. A copper braid strap typically connects the jaw halves, bypassing the hinge mechanism to prevent arcing within the pivot point and ensuring full current transfer directly to the contact pads.
Rated for a 35% duty cycle at 200 amps, the Nevada 200 is well-suited for light fabrication, repair, and maintenance tasks. It accommodates standard welding cables, securing them firmly to prevent pull-out during movement. By maintaining a cool and consistent connection, this earth clamp helps welders achieve higher quality welds and protects the welding power source from the strain of poor circuit continuity.
| Additional Information |
|---|
| Amperage:200 |
| Brand:ESAB |
| Product Type:Earth Clamp |
| Clamp Style:Spring Loaded, Crocodile |
| Duty Cycle:35% @ 200A |
| Cable Connection:Lug / Screw |
| Material:Brass, Steel |
| Packaging Description:1 per ea |
