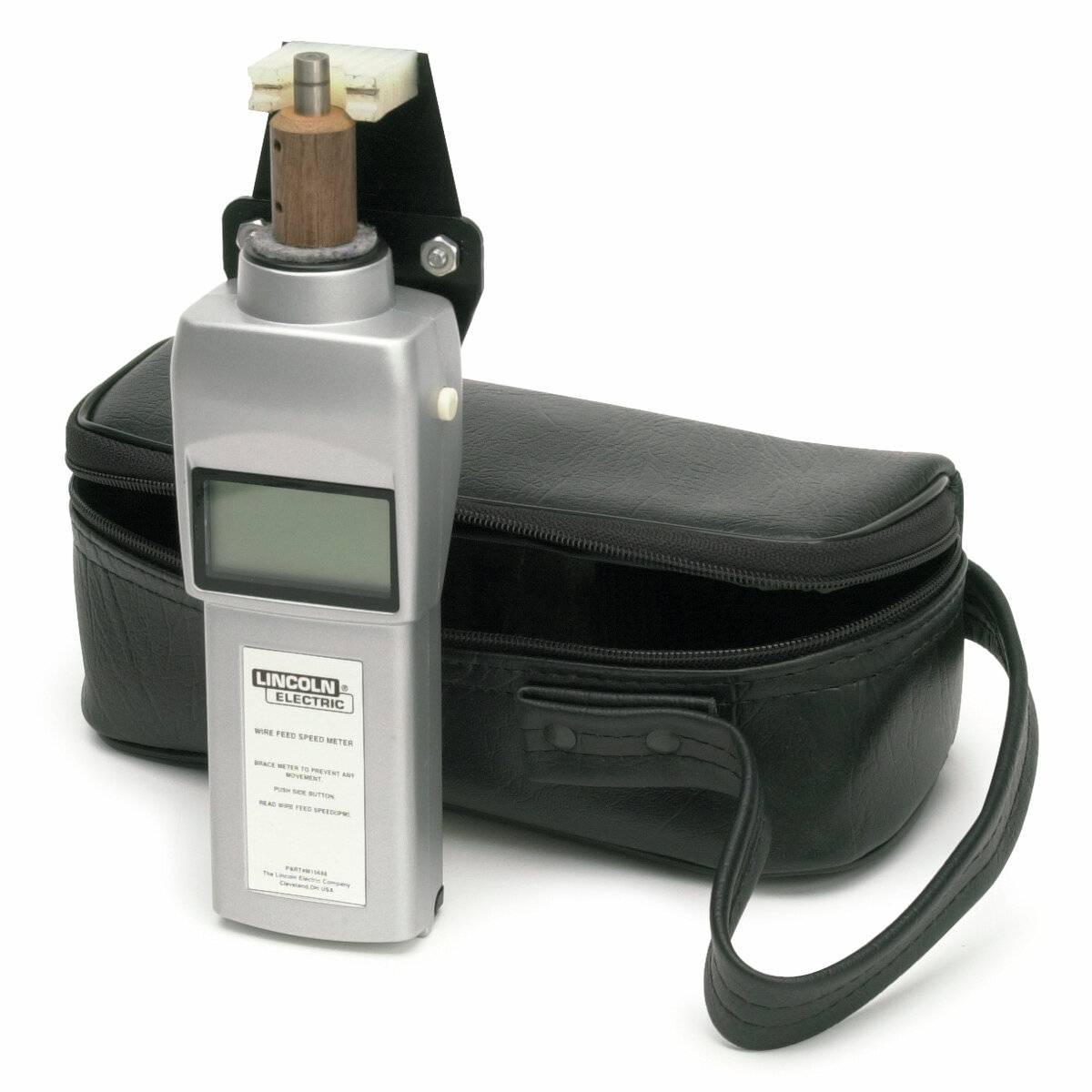

K283-1 - Digital Wire Feed Speed Tachometer

Precise Welding Parameter Verification

In the world of industrial welding, consistency is the bedrock of quality. The Lincoln Electric K283-1 Portable Digital WFS Meter is an indispensable instrument for welding engineers, quality control inspectors, and maintenance personnel who demand accuracy. In Constant Voltage (CV) welding processes like MIG (GMAW) and Flux-Cored (FCAW), wire feed speed (WFS) is the primary variable that determines the welding amperage. Relying solely on the analog dials or digital displays of older wire feeders can lead to inaccuracies, as mechanical wear or calibration drift can cause the actual output to differ from the setpoint. The K283-1 bridges this gap by providing a direct, independent measurement of the wire speed as it travels towards the arc.

Advanced Measurement Technology

Designed for ease of use and high reliability, this digital meter features a specialized clamp-on mechanism. Users simply attach the device to an exposed section of the electrode wire—typically between the wire drive rolls and the back of the gun, or at the contact tip if safety protocols allow—and engage the wire feeder. The unit utilizes a precision tachometer system to read the linear velocity of the passing wire, displaying the result clearly in Inches Per Minute (IPM). This immediate feedback allows operators to fine-tune their equipment to match exact Welding Procedure Specifications (WPS), ensuring that heat input and deposition rates are maintained within critical tolerances.

Essential for Calibration and Compliance

For shops operating under strict code requirements (such as AWS D1.1 or ASME Section IX), equipment calibration is mandatory. The Lincoln K283-1 serves as a primary verification tool to validate that welding stations are performing as intended. It is also a powerful diagnostic aid; if a welder reports arc instability, this meter can help determine if the issue lies with a fluctuating wire feed motor or slipping drive rolls. Compact, battery-powered, and ruggedly built, the K283-1 is ready to withstand the rigors of the industrial environment while delivering the laboratory-grade precision Lincoln Electric is known for.
